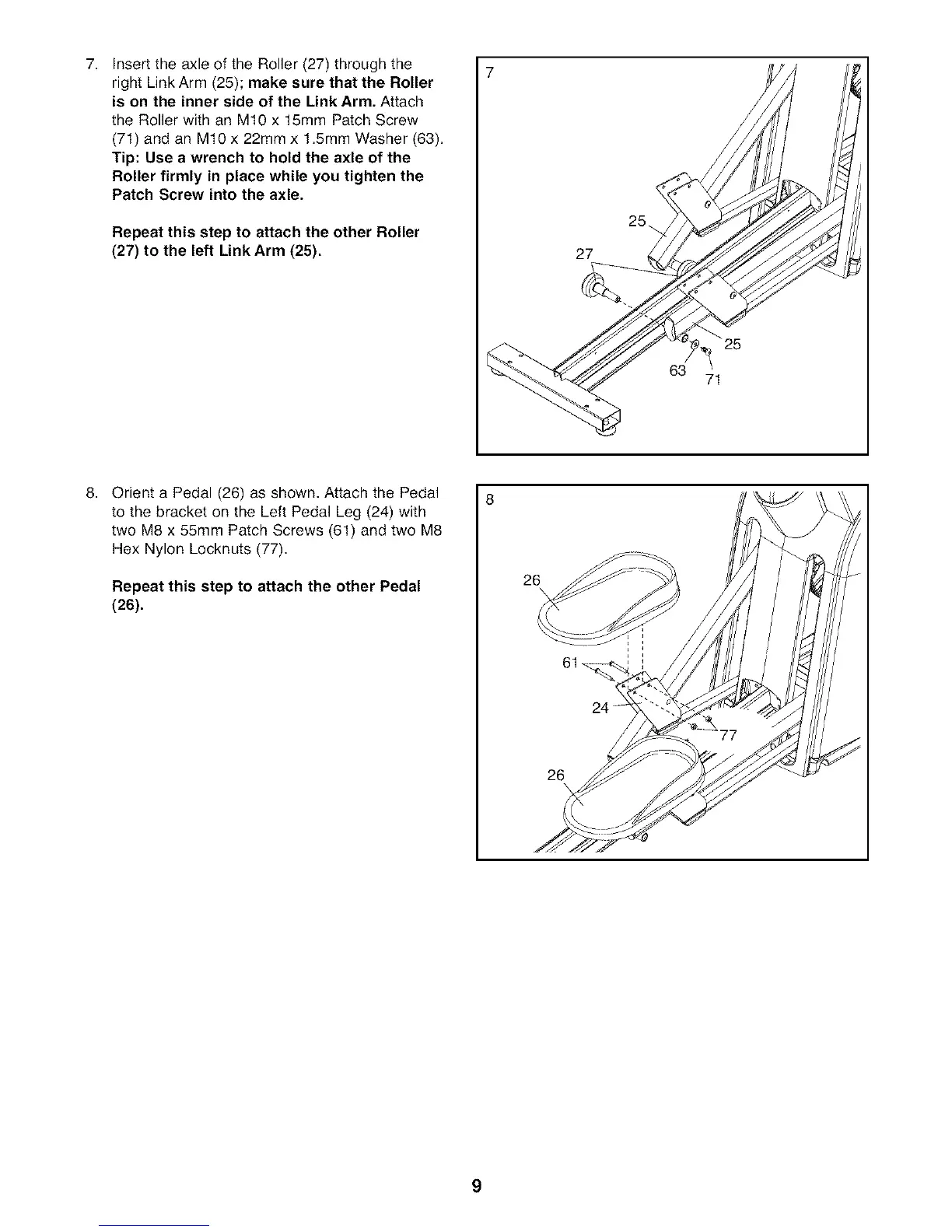

Insert the axle of the Roller (27) through the
right Link Arm (25); make sure that the Roller
is on the inner side of the Link Arm. Attach
the Roller with an M1O x 15mm Patch Screw
(71) and an M1O x 22ram x 1.5mm Washer (63),
Tip: Use a wrench to hold the axle of the
Roller firmly in place while you tighten the
Patch Screw into the axle.
Repeat this step to attach the other Roller
(27) to the left Link Arm (25). 27
63
71
8,
Orient a Pedal (26) as shown, Attach the Pedal
to the bracket on the Left Pedal Leg (24) with
two M8 x 55mm Patch Screws (61) and two M8
Hex Nylon Locknuts (77),
Repeat this step to attach the other Pedal
(26).
26
\
26
9
