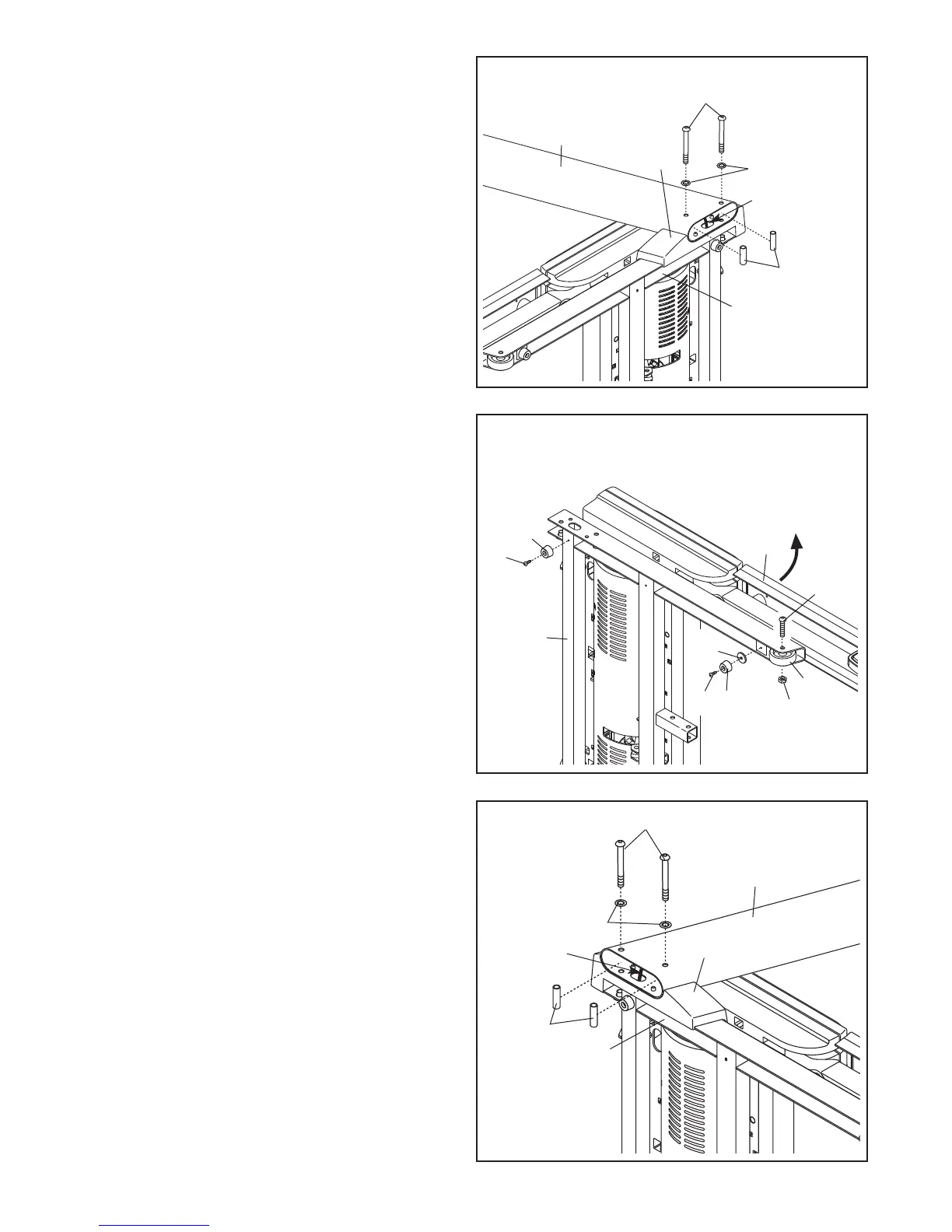

7. Insert the Upright AV Cable (116) through the
hole in the Base (83), through the Left Upright
Spacer (76), and up through the Left Upright (74).
Set the Left Upright Spacer (76) on the Base
(83). With the help of a second person, hold a
Bolt Spacer (80) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4 1/4" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer.
Repeat this step with a sec-
ond Bolt Spacer (80), 3/8" x 4 1/4" Bolt (6),
and 3/8" Star Washer (9).
Then, set the Left
Upright in the Left Upright Spacer.
Tighten the 3/8" x 4 1/4" Bolts (6) with your fin-
gers;
do not fully tighten the Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
6. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Screw (2) and a
Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Screw (2).
Attach a Wheel (84) with the 3/8" x 2" Bolt (4)
and the 3/8" Nut (8) that you removed in step 1.
Do not overtighten the Nut; the Wheel must
turn freely.
5. Set the Right Upright Spacer (79) on the Base
(83). Be careful not to pinch the Upright Wire
(38).
With the help of a second person, hold a
Bolt Spacer (80) inside the lower end of the
Right Upright (78). Insert a 3/8" x 4 1/4" Bolt (6)
with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer.
Repeat this step
with a second Bolt Spacer (80), 3/8" x 4 1/4"
Bolt (6), and 3/8" Star Washer (9). Then, set
the Right Upright in the Right Upright Spacer.
Tighten the 3/8" x 4 1/4" Bolts (6) with your fin-
gers;
do not fully tighten the Bolts yet.
76
74
6
83
116
7
6
83
84
56
8
81
2
4
79
78
6
5
38
9
9
83
80
80
2
81
13
