10

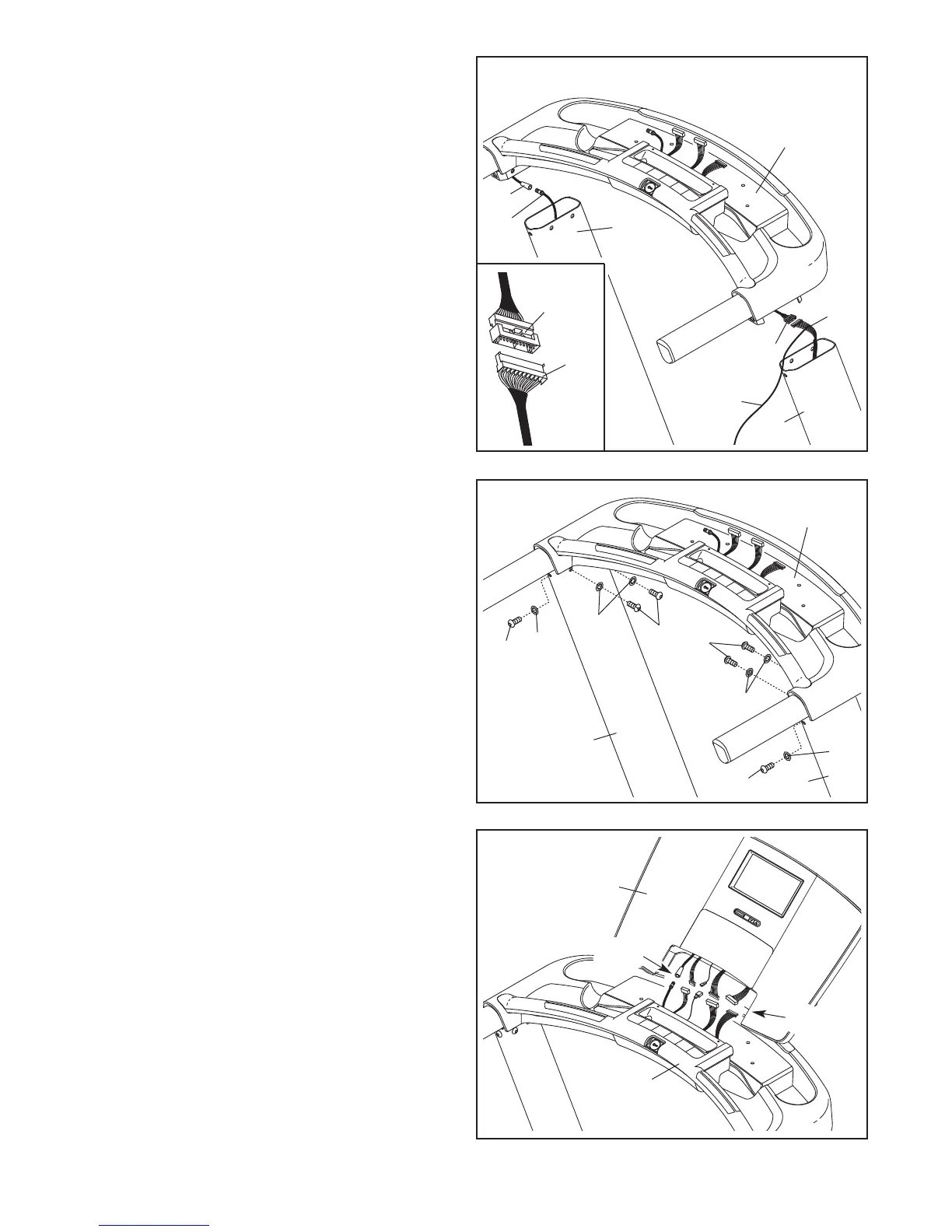

8. With the help of a second person, hold the
handrail assembly near the Right Upright (78)
and the Left Upright (74). Connect the Upright
Wire (38) to the console wire.
See the inset
drawing. The connectors should slide to-
gether easily and snap into place. If they do
not, turn one connector and try again.
IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Connect the Upright AV Cable (116) in the Left
Upright (74) to the 30" AV Cable (118).
Remove the wire tie from the Upright Wire (38).
9. Set the handrail assembly on the Uprights (74,
78). Be careful not to pinch any wires.
Attach the handrail assembly to the Uprights
(74, 78) with six 5/16" x 1 1/4" Bolts (7) and six
5/16" Star Washers (10) as shown.
See assembly steps 5 and 7. Firmly tighten
the 3/8" x 4 1/4" Bolts (6).
10. With the help of a second person, hold the con-
sole assembly near the handrail assembly.
Connect the five wires from the console assem-
bly to the five wires from the handrail assembly.
See the inset drawing in step 8. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again.
IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
78
74
118
116
Console
Wire
Wire Tie
8
7
10
74
Handrail
Assembly
9
Handrail
Assembly
Console
Assembly
10
38
Console
Wire
Handrail
Assembly
38
78
7
7
7
10
10
10
Wires
Wires
To Next Page
