11

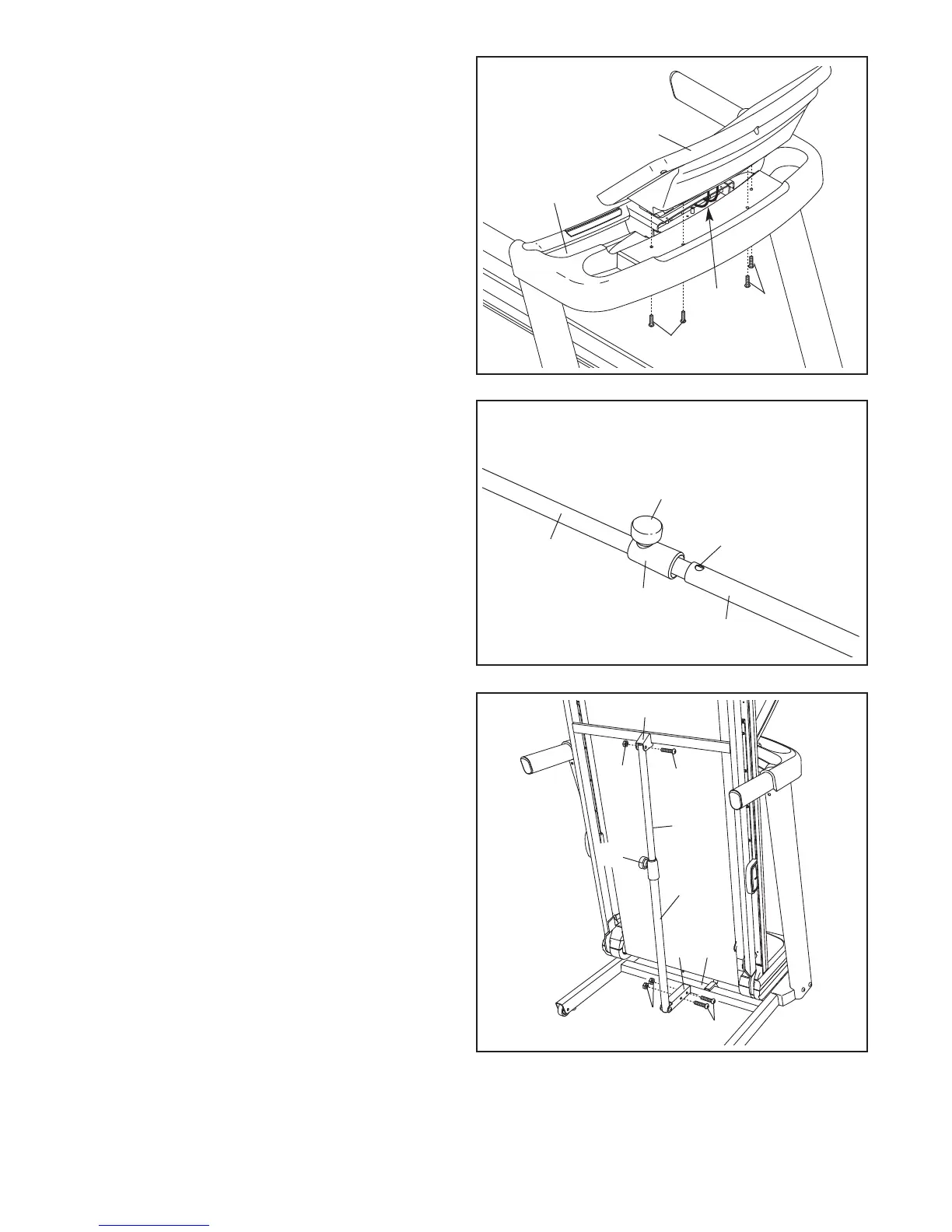

12. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the hole.
Pull on the sleeve to make sure that it is
locked into place.
54
Sleeve
Hole
Tube
53
11. Insert the wires from the console assembly into
the handrail assembly.
Attach the console assembly to the handrail as-
sembly with four 1/4" x 3/4" Bolts (5).
Be care-
ful not to pinch the wires.
Console
Assembly
5
5
Wires
Handrail
Assembly
11
12
13. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the posi-
tions shown. Attach the Latch Bracket (14) and
Storage Latch (53) to the Base (83) with two 3/8"
x 2" Bolts (4) and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 28).
53
8
8
Large
Barrel
83
4
56
14
13
4
14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used
to adjust the walking belt (see pages 30 and 31).
54
To Next Page
