6
3
5
V-shaped Groove
29
Grease
33
33
30
30
58
58
1
Tubes
Tubes
3. Slide an M8 Split Washer (58) and an M8 Washer (33)
onto an M8 x 19mm Button Screw (30). Tighten the
Button Screw into one end of the Incline Axle (29).
Next, apply a small amount of the included grease to
the Incline Axle.
Align the indicated tubes on the Incline Frame (5) with
the tubes on the Frame (1). Make sure that the
Incline Frame is turned so the V-shaped grooves
are on top. Insert the Incline Axle (29) through the
Incline Frame and the Frame. Note: It may be helpful
to tap the Incline Axle with a rubber mallet to insert it.
Slide an M8 Split Washer (58) and an M8 Washer (33)
onto the other M8 x 19mm Button Screw (30). Tighten
the Button Screw into the open end of the Incline Axle
(29).
2. Attach the Front Stabilizer (90) to the Frame (1) with
the four M10 x 43mm Button Screws (97) and four
M10 Split Washers (22). Make sure that the Front
Stabilizer is turned so the Wheels (45) are not
touching the floor.
97
90
45
22
22
1
2

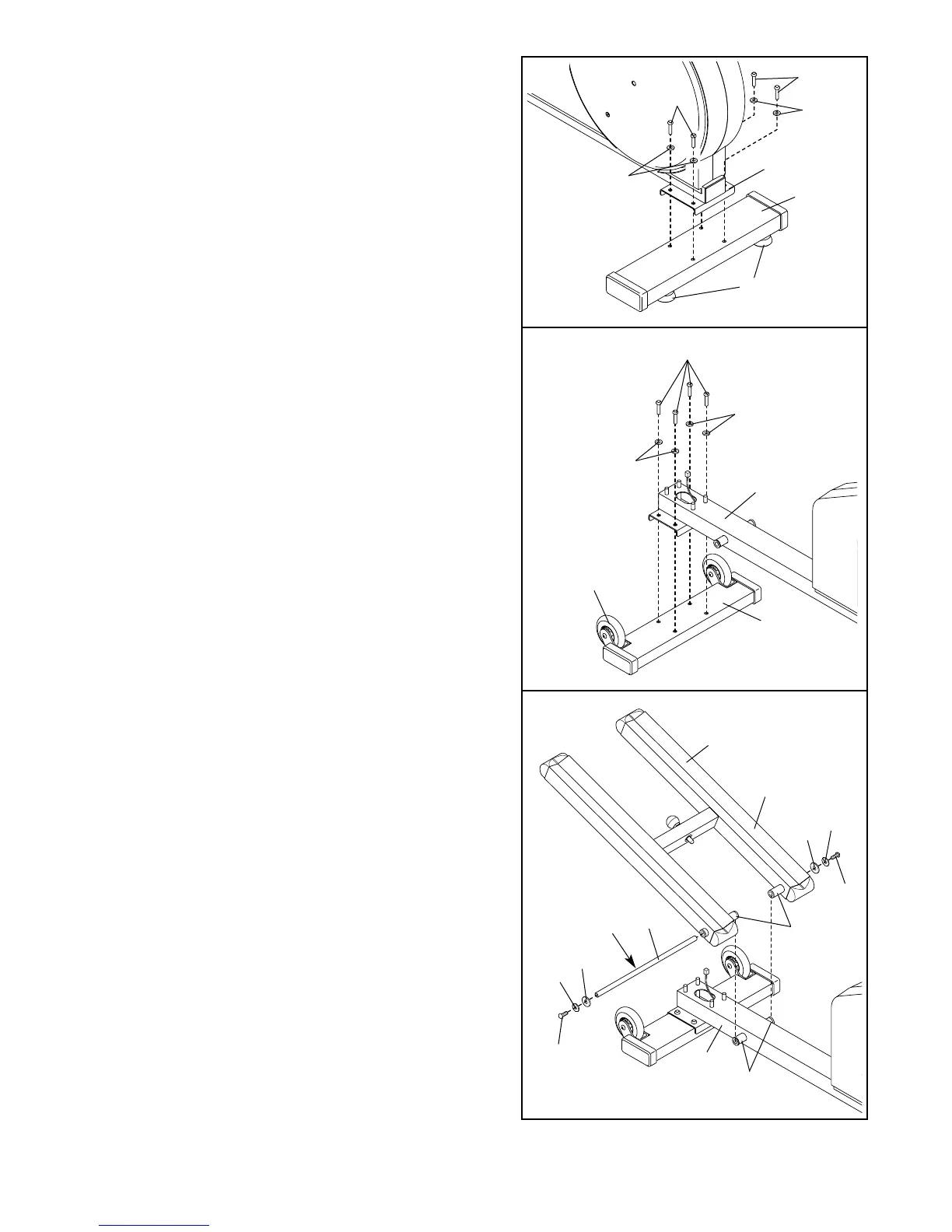

1. Identify the Rear Stabilizer (94), which has two Leveling
Feet (59) threaded into it. Turn the Rear Stabilizer so
the Leveling Feet are closer to the rear of the Frame
(1) as shown. Attach the Rear Stabilizer to the Frame
with the four M10 x 56mm Button Screws (60) and four
M10 Split Washers (22).
22
1
60
60
22
94
59
1
