16
HOW TO CONNECT YOUR VCR
N
ote: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
b
eing used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.

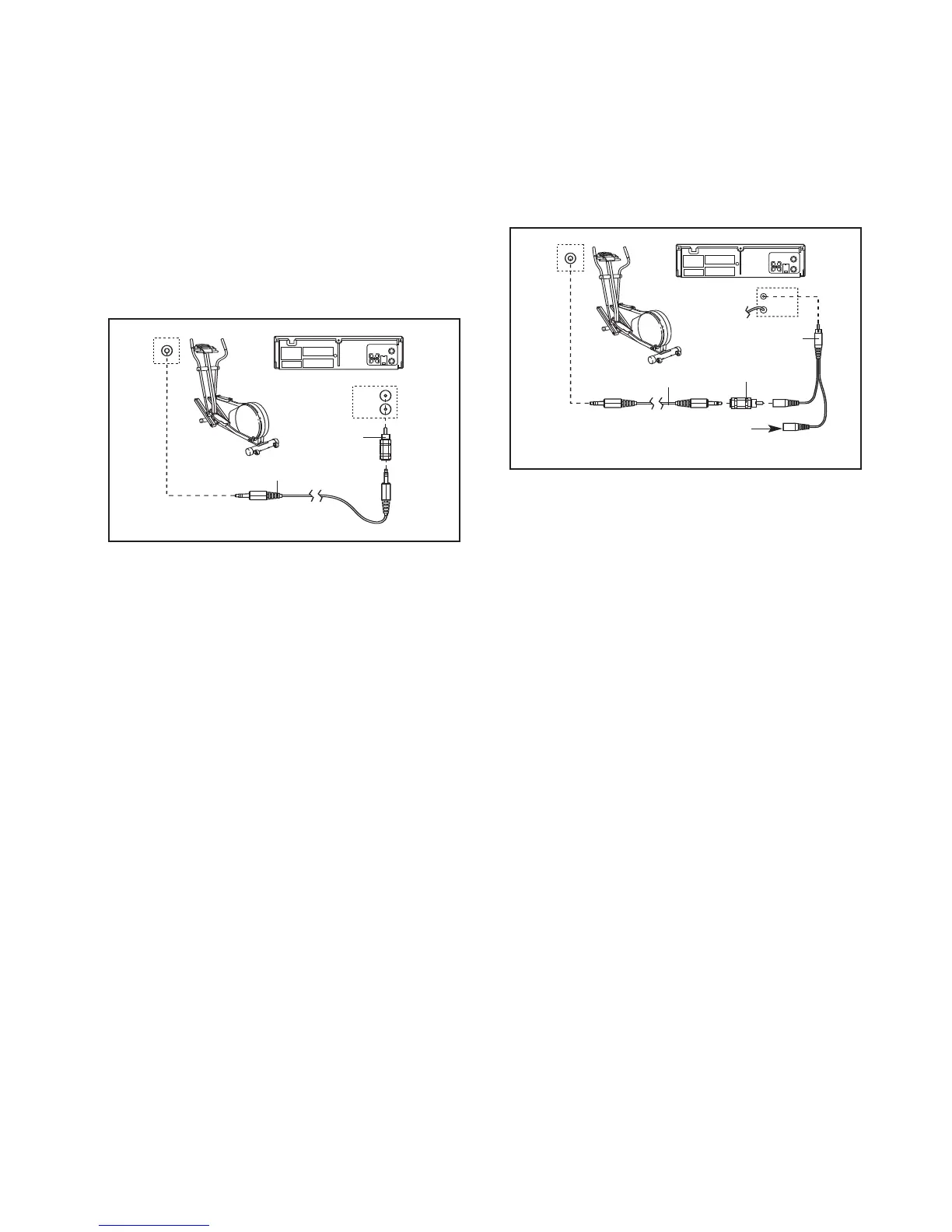

A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
c
able into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
N
ext, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
B
VIDEO AUDIO
ANT. IN
R
F OUT
I
N
OUT
CH
34
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
A
NT. IN
RF OUT
IN
O
UT
CH
3
4
AUDIO OUT
RIGHT
LEFT
Audio Cable
Adapter
A
B
VIDEO AUDIO
A
NT. IN
RF OUT
I
N
O
UT
CH
3
4
A
C
AUDIO OUT
RIGHT
LEFT
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
To Next Page
