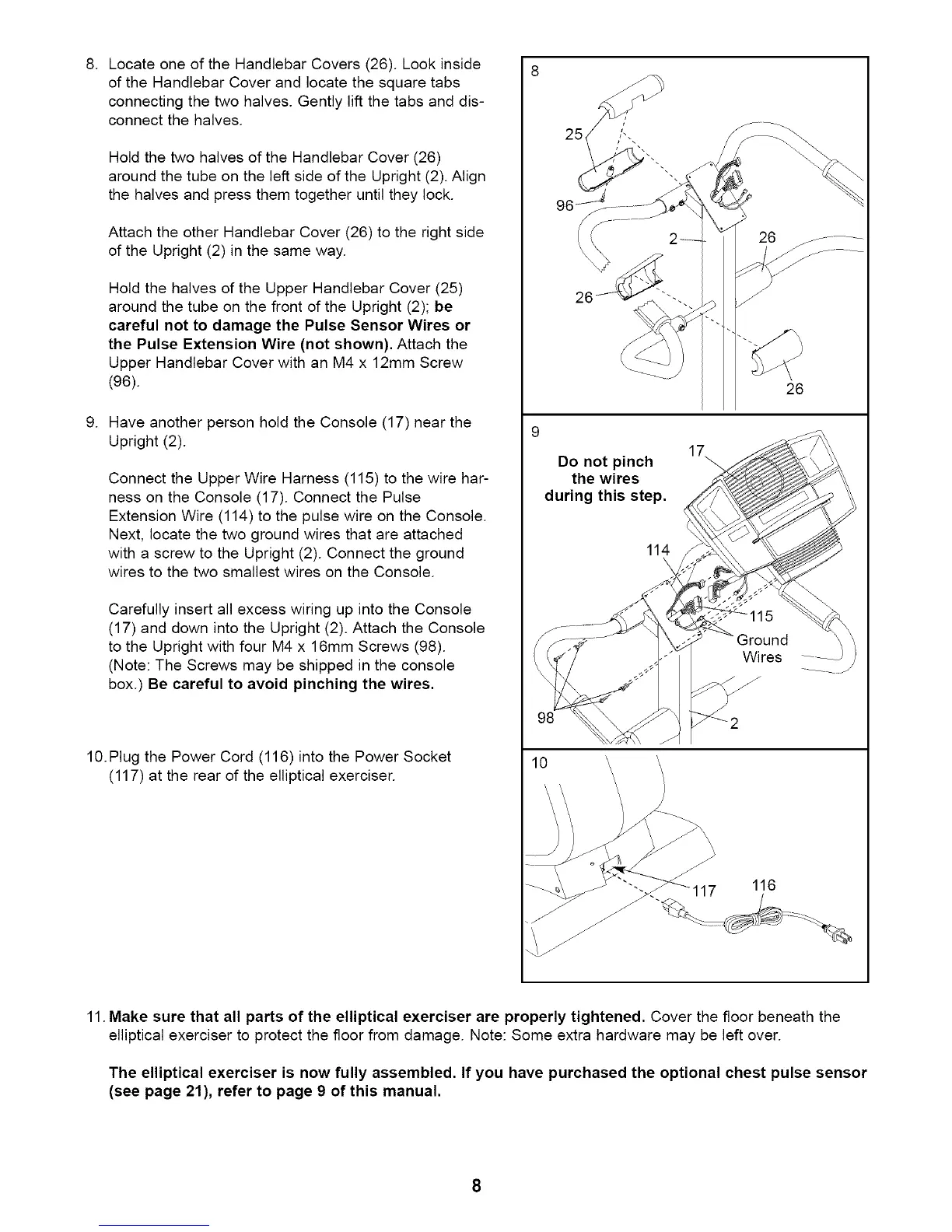

8. LocateoneoftheHandlebarCovers(26).Lookinside
oftheHandlebarCoverandlocatethesquaretabs
connectingthetwohalves.Gentlyliftthetabsanddis-
connectthehalves.
HoldthetwohalvesoftheHandlebarCover(26)
aroundthetubeontheleftsideoftheUpright(2).Align
thehalvesandpressthemtogetheruntiltheylock.
AttachtheotherHandlebarCover(26)totherightside
oftheUpright(2)inthesameway.
HoldthehalvesoftheUpperHandlebarCover(25)
aroundthetubeonthefrontoftheUpright(2);be
carefulnot todamagethe PulseSensorWiresor
the PulseExtensionWire(notshown).Attachthe
UpperHandlebarCoverwithanM4x 12mmScrew
(96).
9. HaveanotherpersonholdtheConsole(17)nearthe
Upright(2).
ConnecttheUpperWireHarness(115)to thewirehar-
nessontheConsole(17).ConnectthePulse
ExtensionWire(114)to thepulsewireontheConsole.
Next,locatethetwogroundwiresthatareattached
witha screwtotheUpright(2).Connecttheground
wirestothetwosmallestwiresontheConsole.
CarefullyinsertallexcesswiringupintotheConsole
(17)anddownintotheUpright(2).AttachtheConsole
totheUprightwithfourM4x 16mmScrews(98).
(Note:TheScrewsmaybeshippedintheconsole
box.)Becarefulto avoidpinchingthewires.
10.PlugthePowerCord(116)intothePowerSocket
(117)attherearoftheellipticalexerciser.
10
25
96
26
Donot pinch
the wires
during this step.
114
\
11.Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
The elliptical exerciser is now fully assembled. If you have purchased the optional chest pulse sensor
(see page 21), refer to page 9 of this manual.
