5

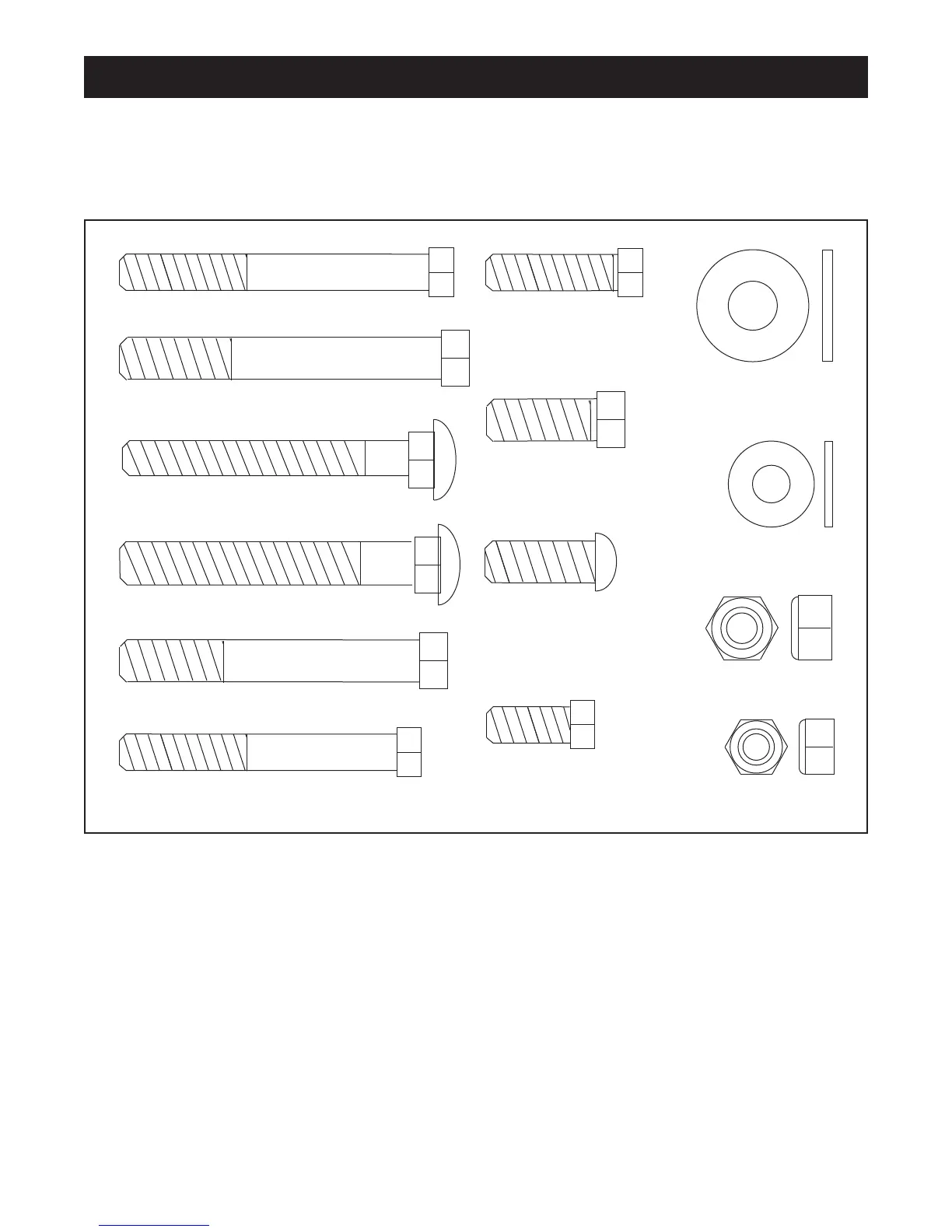

Part Identification Chart
M8 x 63mm Bolt (23)
M8 x 30mm Bolt (22)
M8 x 70mm Bolt (25)
M10 x 67mm Carriage Bolt (24)
M10 x 25mm Bolt (36)
M8 Washer (35)
M10 Nylon Locknut (7)
M8 Nylon Locknut (37)
M8 x 20mm
Screw (33)
M10 x 25mm Button
Head Bolt (27)
M8 x 65mm Carriage Bolt (38)
M10 Washer (3)
M10 x 73mm Bolt (29)
M10 x 68mm Bolt (26)
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the Part List is the centre of this manuel. Important: Some
parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags,
check to see if it has been pre-assembled.
