NordicTrack Grt270 Bench User Manual

6
Assembly
• Assembly requires two people.
• As you assemble the weight rack, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying the small parts, use the Part
Identification Chart on page 5.
• T
ighten all parts as you assemble them, unless
instructed to do otherwise.
The following tools (not included) are required
for assembly:
• Two adjustable spanners
• One rubber mallet
• One standard screwdriver
• One phillips screwdriver
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end spanners, or a set of ratchet spanners.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight rack can be assembled suc-
cessfully by anyone. However, it is important to
recognise that the weight rack has many parts
and that the assembly process will take time.
Most people find that by setting aside plenty of
time, and by deciding to make the task enjoy-
able, assembly will go smoothly.

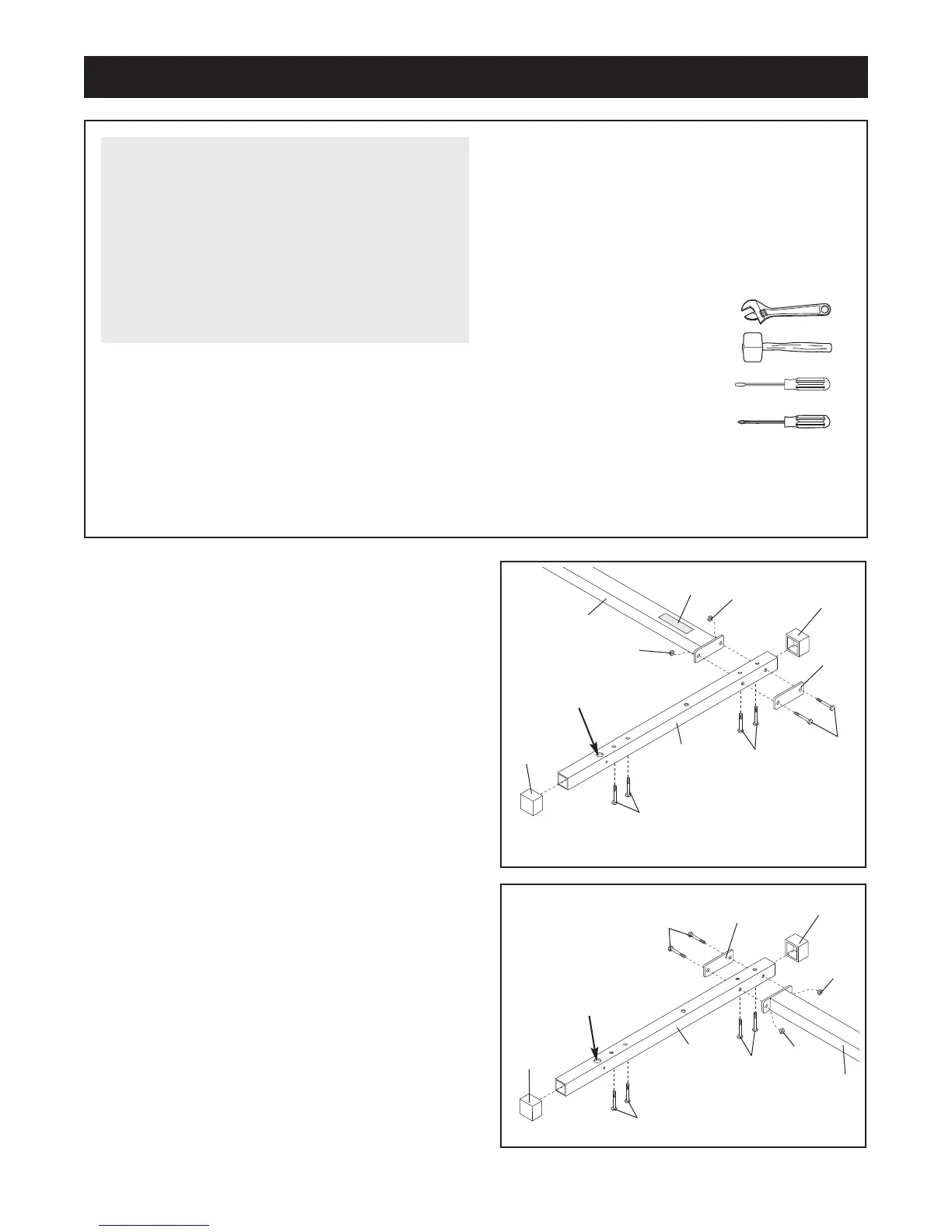

1. Before beginning, make sure that you understand
the information in the box above.
Press a 50mm Square Outer Cap (10) onto each end
of a Base (4). Turn the Base so the large hole is in
the position shown. Insert two M8 x 65mm Carriage
Bolts (38) and two M10 x 67mm Carriage Bolts (24)
up into the indicated holes in the Base. Place the
Base flat on the floor.
Turn the Base Crossbar (12) so the warning decal is
on top.
Attach the Base (4) to the Base Crossbar with
two M8 x 70mm Bolts (25), a Large Support Plate (8),
and two M8 Nylon Locknuts (37).
Do not tighten the
Nylon Locknuts yet.
2. Press a 50mm Square Outer Cap (10) onto each end
of the other Base (4).
T
urn the Base so the large hole
is in the position shown. Insert two M8 x 65mm
Carriage Bolts (38) and two M10 x 67mm Carriage
Bolts (24) up into the indicated holes in the Base.
Place the Base flat on the floor.
Attach the Base (4) to the Base Crossbar (12) with
two M8 x 70mm Bolts (25), a Large Support Plate (8),
and two M8 Nylon Locknuts (37).
Do not tighten the
Nylon Locknuts yet.
1
2
10
38
12
37
37
Decal
10
10
Large Hole
Large Hole
4
8
25
38
24
8
37
4
25
12
10
37
24
