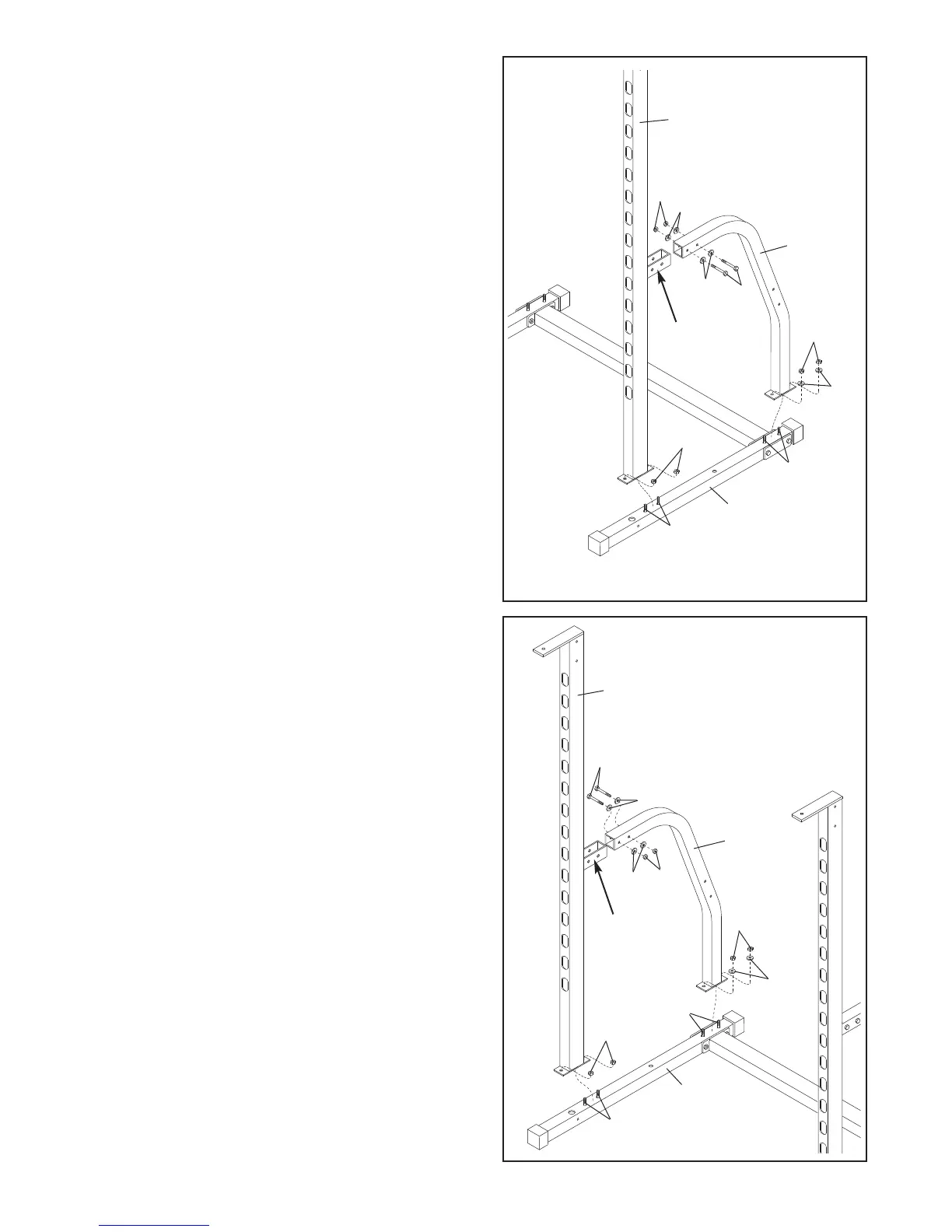

3. Slide a Brace (2) onto the bracket on one of the
Uprights (1). Attach the Brace to the Upright with two
M10 x 68mm Bolts (26), four M10 Washers (3), and
two M10 Nylon Locknuts (7).
Do not tighten the
Nylon Locknuts yet.
Slide the Upright (1) and the Brace (2) onto the M10
x 67mm Carriage Bolts (24) and the M8 x 65mm
Carriage Bolts (38) in the left Base (4). Attach the
Upright with two M10 Nylon Locknuts (7). Attach the
Brace with two M8 Washers (35) and two M8 Nylon
Locknuts (37). Do not tighten the Nylon Locknuts
yet.
3
1
7
3
3
Bracket
24
38
7
26
2
4
35
37
4. Slide the other Brace (2) onto the bracket on the
other Upright (1). Attach the Brace to the Upright with
two M10 x 68mm Bolts (26), four M10 Washers (3),
and two M10 Nylon Locknuts (7). Do not tighten the
Nylon Locknuts yet.
Slide the Upright (1) and the Brace (2) onto the M10
x 67mm Carriage Bolts (24) and the M8 x 65mm
Carriage Bolts (38) in the right Base (4).
Attach the
Upright with two M10 Nylon Locknuts (7). Attach the
Brace with two M8 Washers (35) and two M8 Nylon
Locknuts (37). Do not tighten the Nylon Locknuts
yet.
4
1
26
7
3
4
38
2
24
3
7
37
35
Bracket
