10

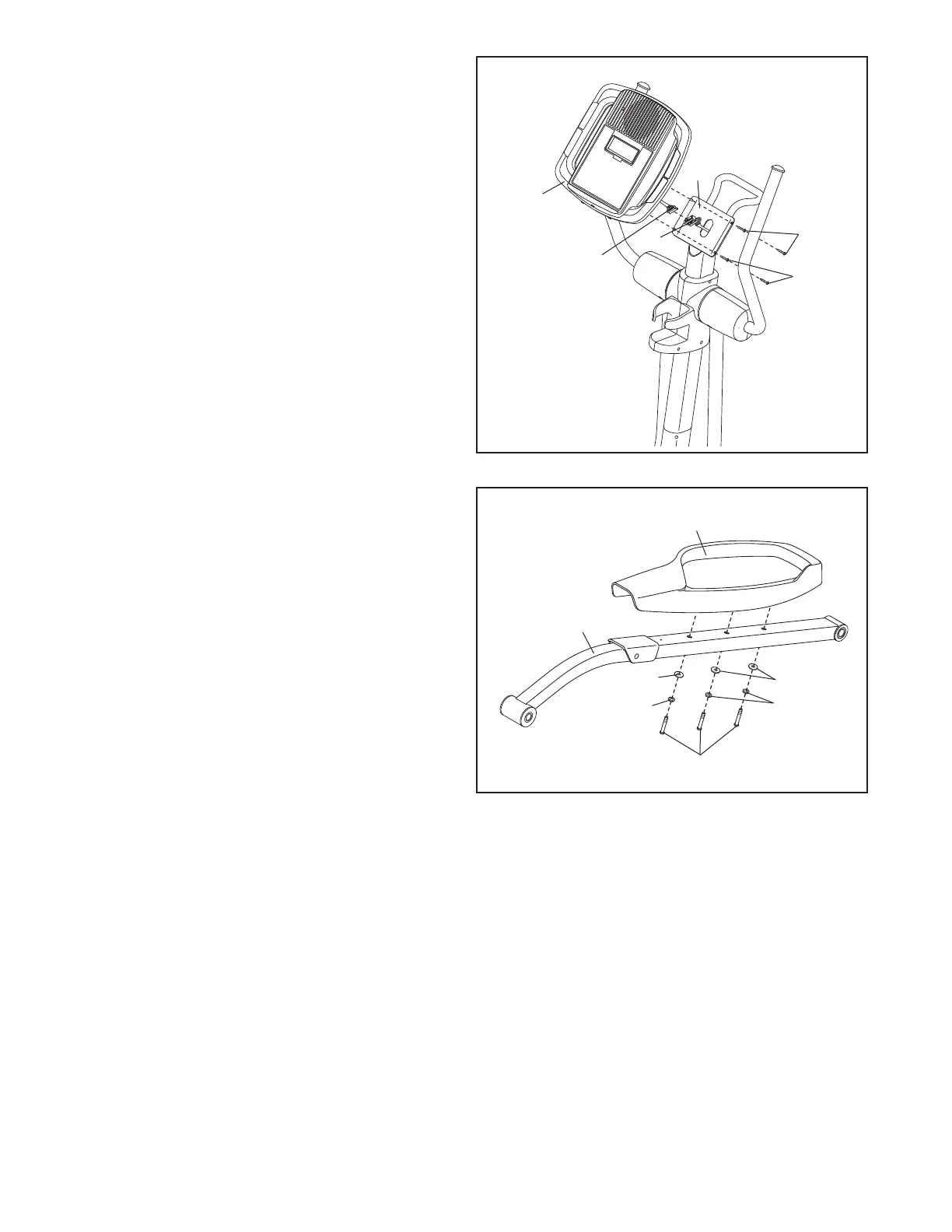

11. Identify the Right Pedal (35) and the Right Link
Arm (98), which are marked with “R” stickers,
and orient them as shown.
Attach the Right Pedal (35) to the Right Link
Arm (98) with three M8 x 45mm Patch Screws
(90), three M8 Split Washers (97), and three M8
x 23mm Washers (31).
Repeat this step for the Left Pedal (not
shown) and the Left Link Arm (not shown).
11
35
31
31
97
97
90
98
10. Tip: Avoid pinching the wire harnesses.
While another person holds the Console (11)
near the Upright (10), connect the console wire
harness to the Upper Wire Harness (65).
Attach the Console (11) to the Upright (10) with
four M4 x 16mm Blunt Screws (33).
10
33
33
Console Wire
Harness
1
1
10
Avoid pinching the
wire harnesses
65
To Next Page
