5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .

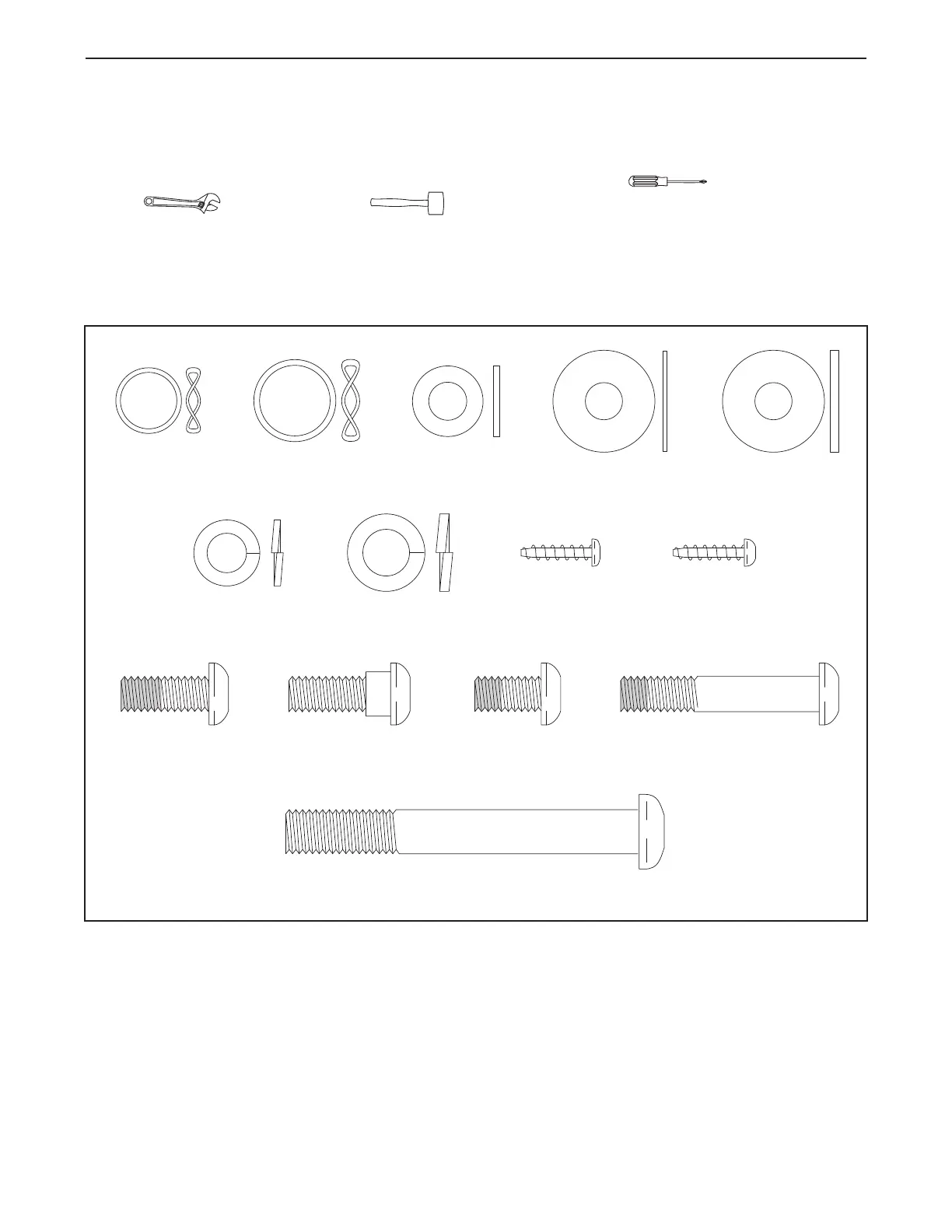

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 x 23mm
Washer (31)–8
M8 Washer
(39)–4
Wave Washer
(80)–2
M10 x 80mm Button Screw (93)–4
M8 x 14mm Patch
Screw (84)–6
M8 x 19mm Patch
Screw (86)–6
M8 x 23mm Shoulder
Screw (45)–4
M8 x 45mm Patch
Screw (90)–6
Large Wave
Washer (89)–4
M8 x 23mm
Thin Washer
(96)–4
M8 Split
Washer (97)–16
M4 x 16mm
Round Head
Screw (92)–19
M10 Split
Washer (99)–4
M4 x 16mm
Blunt Screw
(33)–6
To Next Page
