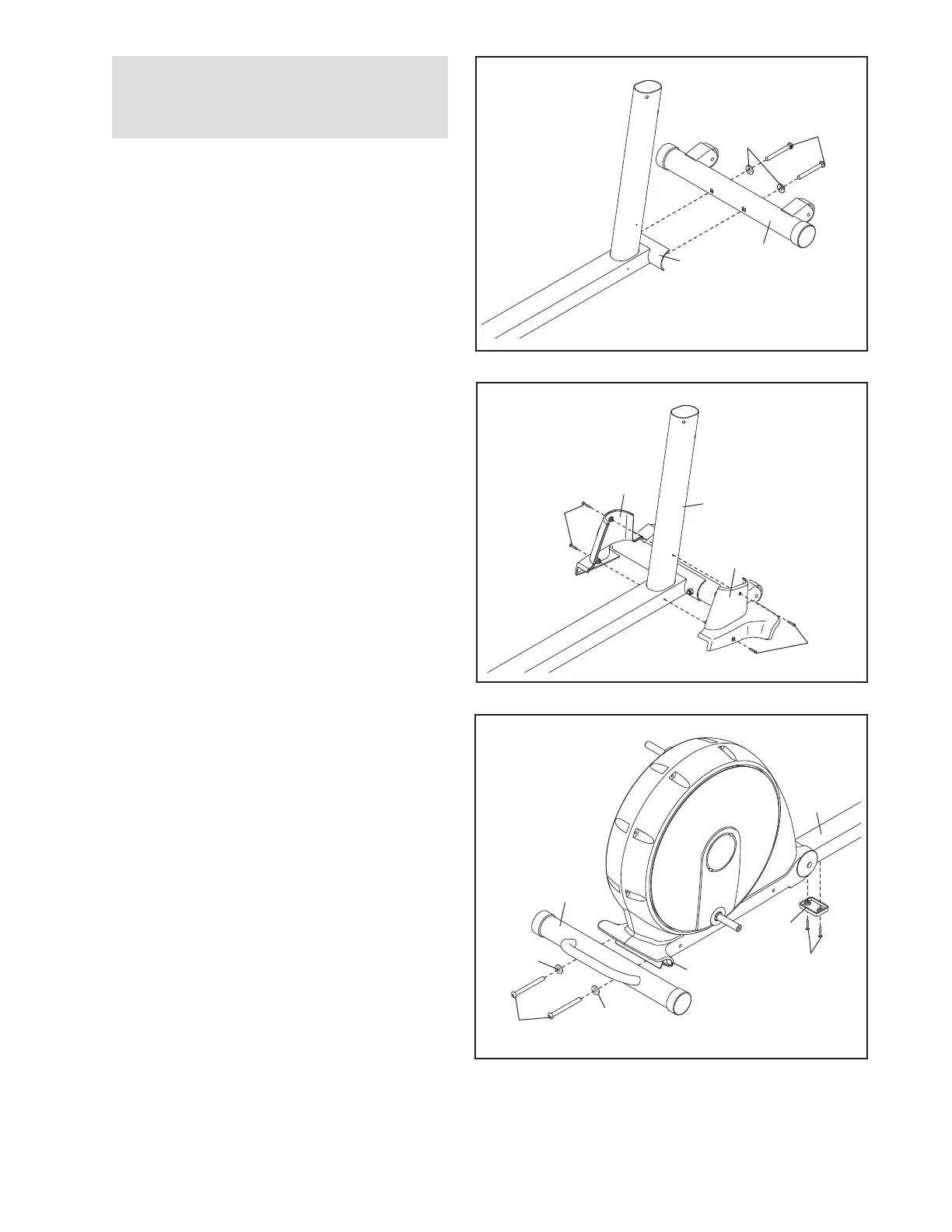

See HOW TO FOLD AND UNFOLD THE
ELLIPTICAL EXERCISER on page 12 and
unfold the elliptical exerciser.
While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 80mm Button Screws
(93) and two M10 Split Washers (99).
4
93
99
1
1
2. Attach the Left and Right Frame Covers (36,
37) around the Frame (1) with four M4 x 16mm
Round Head Screws (92).
92
37
36
92
1
2
To make assembly easier, read the
information on page 5 before you begin
a
ssembling the elliptical exerciser.
3. With the help of another person, carefully tip
the elliptical exerciser onto its side. Attach the
Center Foot (40) to the Frame (1) with two
M4 x 16mm Blunt Screws (33). Then, return the
elliptical exerciser to the upright position.
Orient the Rear Stabilizer (3) as shown. While
another person lifts the Folding Frame (2),
attach the Rear Stabilizer to the Folding Frame
with two M10 x 80mm Button Screws (93) and
two M10 Split Washers (99).
3
99
99
40
33
2
93
3
1
