7

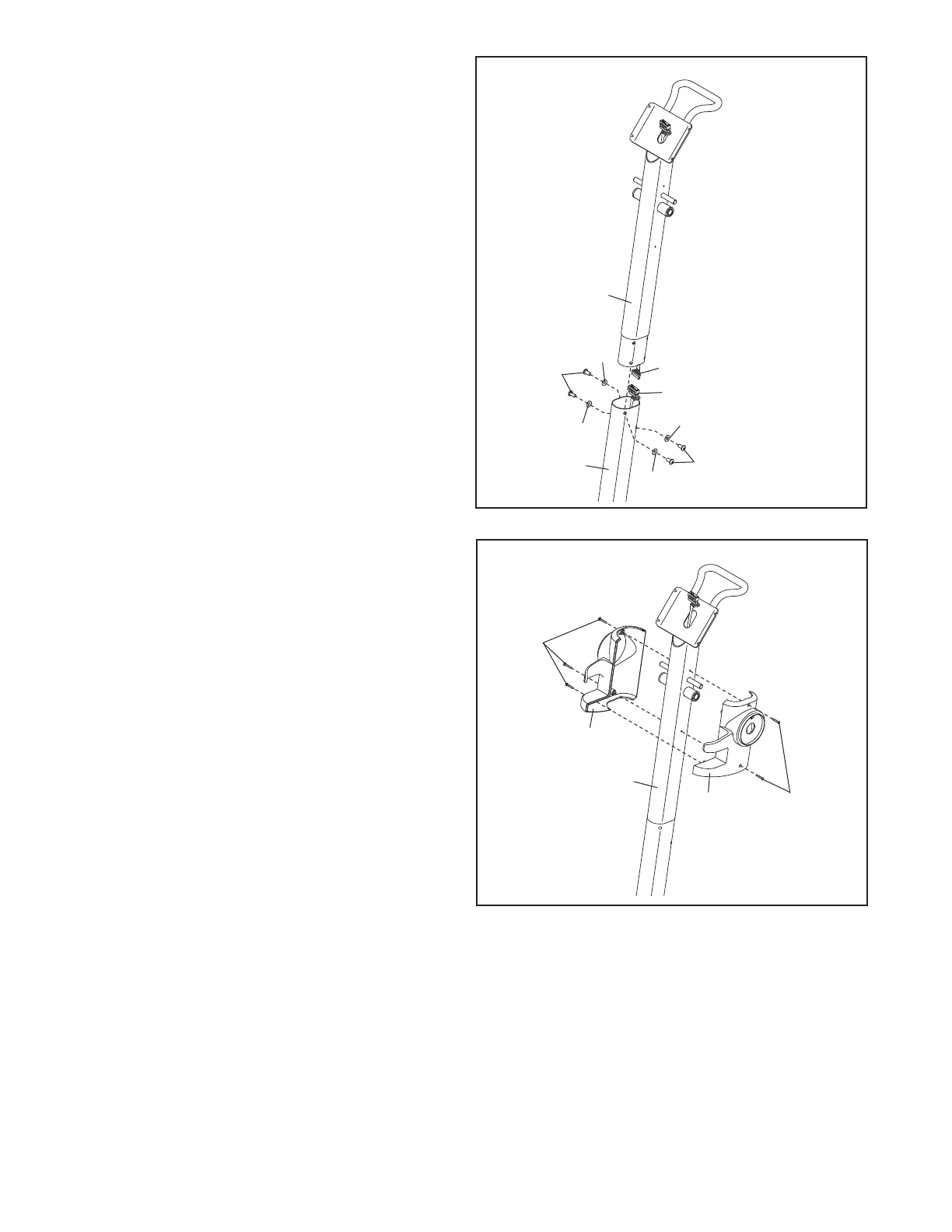

4. Tip: Avoid pinching the Wire Harnesses
(64, 65).
W
hile another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Then, insert the Upright (10) into the Frame (1).
Attach the Upright with four M8 x 19mm Patch
Screws (86) and four M8 Split Washers (97).
Do not tighten the Patch Screws yet.
10
1
97
97
97
97
86
86
64
65
4
Avoid pinching the
Wire Harnesses (64, 65)
5. Orient the Left and Right Upright Covers (19,
20) as shown. Then, attach the Upright Covers
around the Upright (10) with five M4 x 16mm
Round Head Screws (92).
5
19
20
10
92
92
To Next Page
