11
14. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.

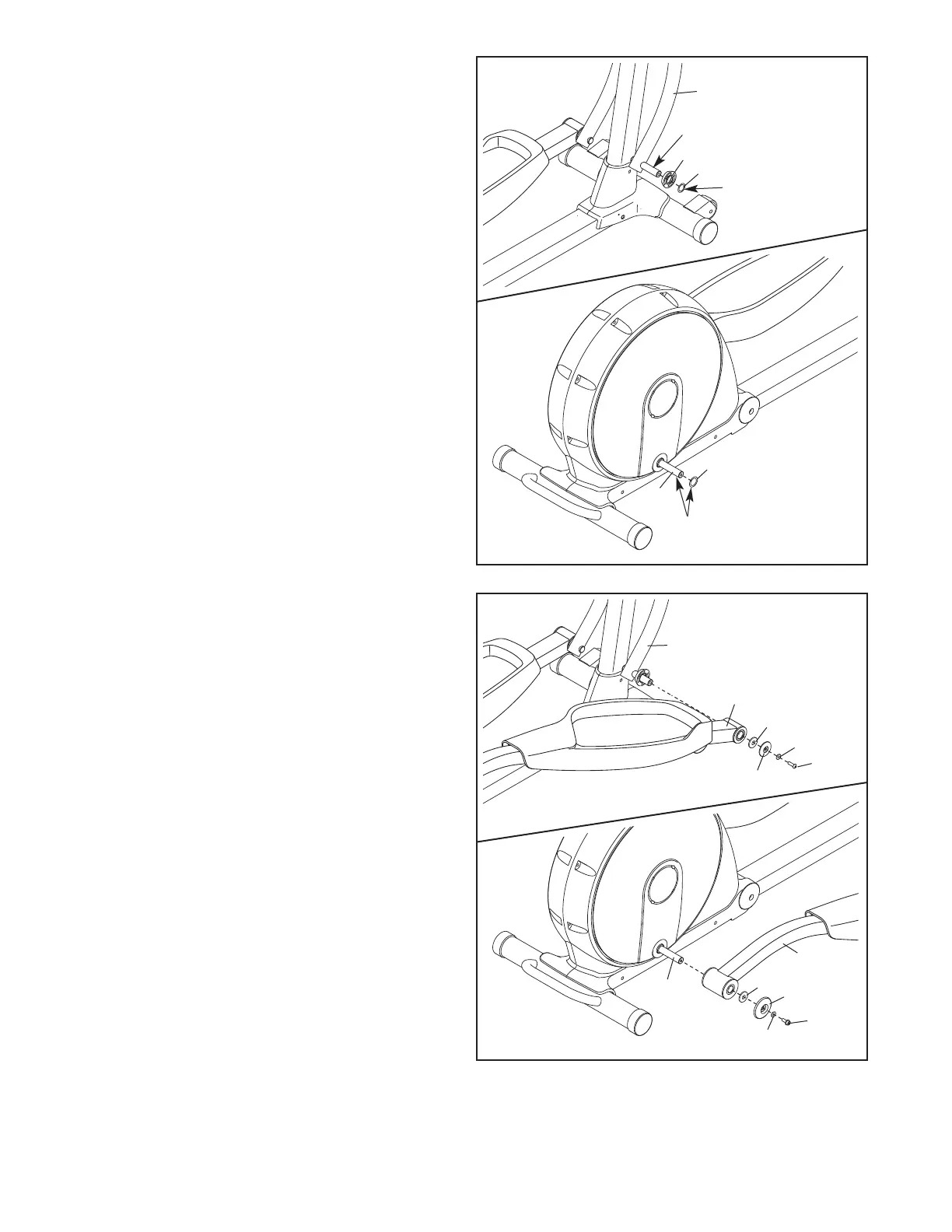

12. Apply a generous amount of grease to the
axle on the Right Upper Body Leg (72) and to
the axle of the right Crank Arm (55). Then,
a
pply grease to two Large Wave Washers (89).
S
lide an Upper Body Leg Spacer (9) and a
Large Wave Washer (89) onto the Right Upper
Body Leg (72). Make sure that the flat side of
the Upper Body Leg Spacer is facing out-
ward.
Slide a Large Wave Washer (89) onto the right
Crank Arm (55).
Repeat this step on the other side of the
elliptical exerciser.
12
89
55
9
89
7
2
Grease
Grease
Grease
13. Gradually work the right Pedal Arm (32) onto
the Right Upper Body Leg (72) while at the
same time working the Right Link Arm (98)
onto the right Crank Arm (55).
Tip: These parts are designed to fit tightly. It
may be helpful to move the right Crank Arm
(55) while working these parts into place.
Attach the right Pedal Arm (32) to the Right
Upper Body Leg (72) with an M8 x 23mm
Shoulder Screw (45), an M8 Washer (39), an
Axle Cover (66), and an M8 x 23mm Thin
Washer (96).
Attach the Right Link Arm (98) to the right Crank
Arm (55) with an M8 x 23mm Shoulder Screw
(45), an M8 Washer (39), a Link Arm Cover (52),
and an M8 x 23mm Thin Washer (96).
Repeat this step for other side of the ellipti-
cal exerciser.
See step 4. Tighten the M8 x 19mm Patch
Screws (86).
13
55
32
66
96
39
45
72
45
39
52
96
98
To Next Page
