5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver .

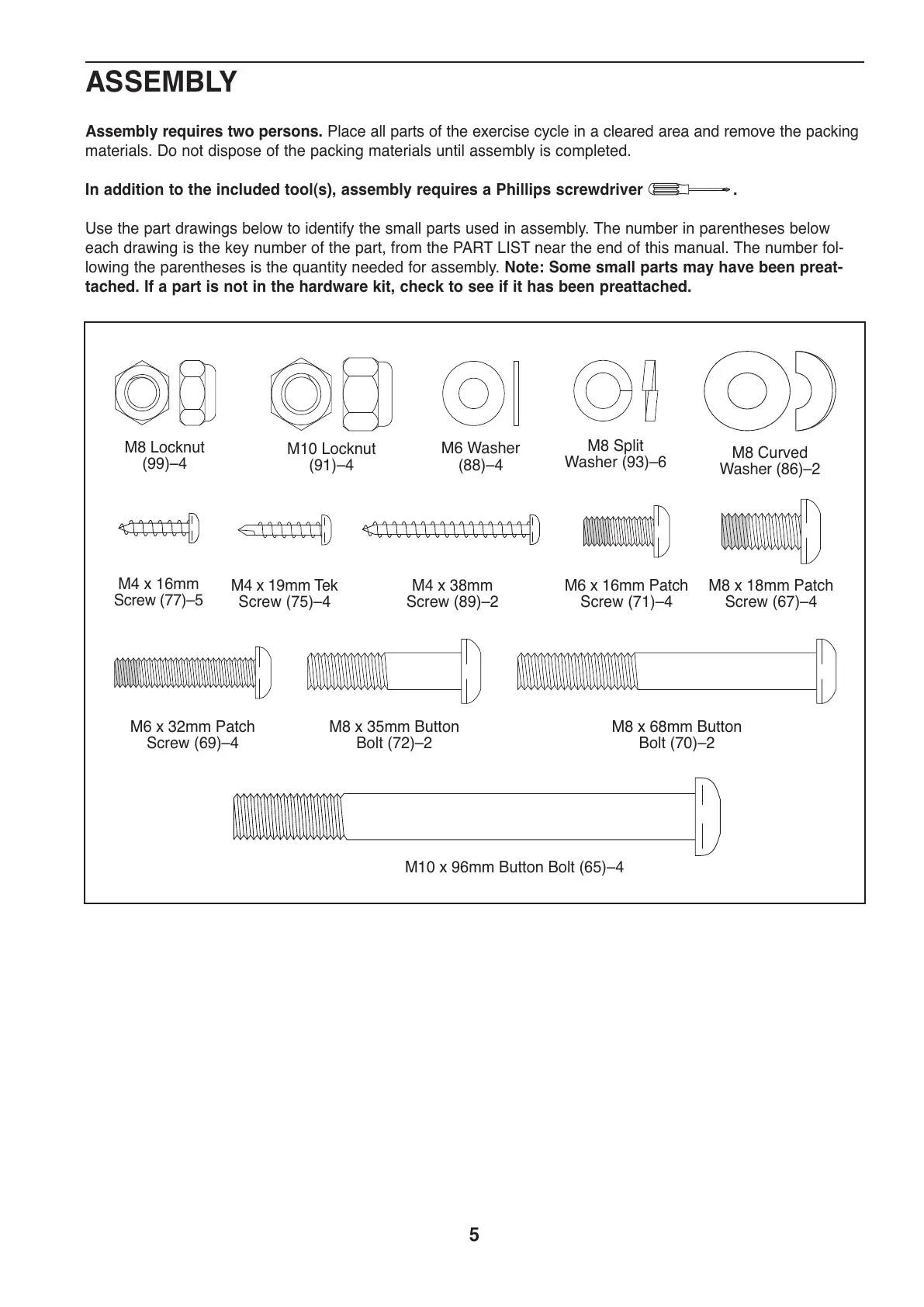

Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preat-
tached. If a part is not in the hardware kit, check to see if it has been preattached.
