11

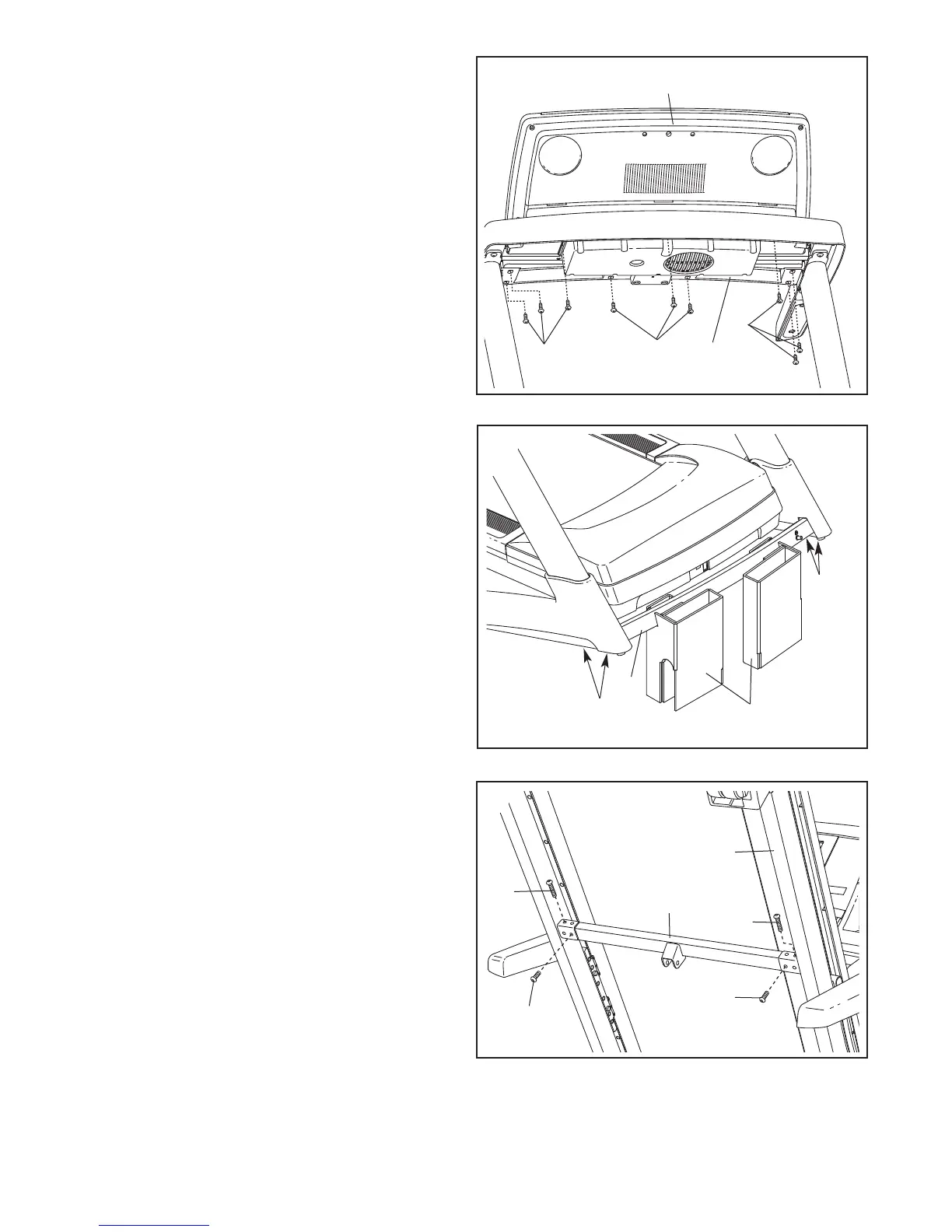

8. Attach the console assembly to the handrail as-
sembly with nine #8 x 3/4" Screws (7). Start all
nine Screws before tightening them.
Console Assembly
Handrail
Assembly
7
7
7
8
9. Locate the two cardboard stands from step 1.
With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (115) into the cutouts in the cardboard
stands as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Patch Bolts
(2).
With the help of a second person, lower the
treadmill off the cardboard stands.
Cardboard Stands
2
115
2
9
10. Raise the Frame (61) to the vertical position.
Have a second person hold the Frame until
step 11 is completed.
Slide the Frame Crossbar (39) into the brackets
on the Frame (61) as shown. Attach the Frame
Crossbar with two 1/4" x 1 3/4" Bolts (3) and two
1/4" x 1 1/4" Bolts (4) as shown.
4
3
3
4
61
39
10
To Next Page
