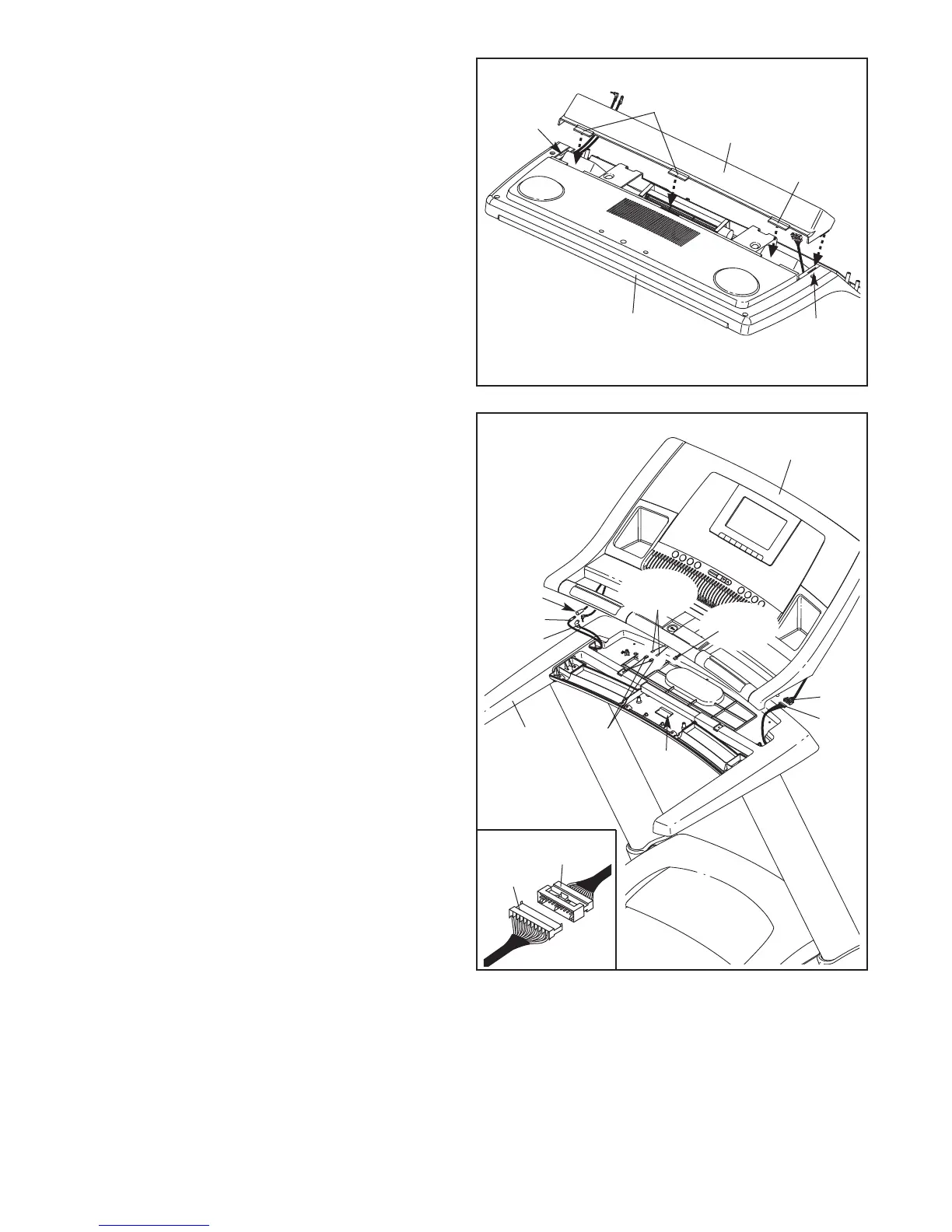

7. With the help of a second person, hold the con-
sole assembly near the handrail assembly.
Connect the 25" A/V Wire (107) and the 25" TV
Cable (108) to the cables extending from the
console assembly.
Connect the 25" Wire Harness (103) to the wire
extending from the console assembly. See the
inset drawing. The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again. IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Connect the Console Ground Wires (96) to the
two ground wires extending from the console
assembly.
Set the console assembly on the handrail as-
sembly. Insert the pulse wire into the indi-
cated hole. You will not connect the pulse
wire to another wire unless you purchase the
optional chest pulse sensor (see page 13). If
necessary, move the wires so that the console
assembly sits flat on the handrail assembly. Be
careful not to pinch any wires. Note: If the
console assembly does not sit flat on the
handrail assembly, you will not be able to com-
plete step 8.
107
96
103
7
Console
Assembly
Cables
Wire
Hole
6. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Slide the three tabs on the Console Accent
(
102) into the console assembly.
P
ress on the ends of the Console Accent (102)
so that they “snap” into the slots in the console
assembly.
Console
Assembly
Slot
Slot
102
6
108
Wire
103
Tab
Tab
Handrail
Assembly
Ground
Wires
Pulse
Wire
To Next Page
