9

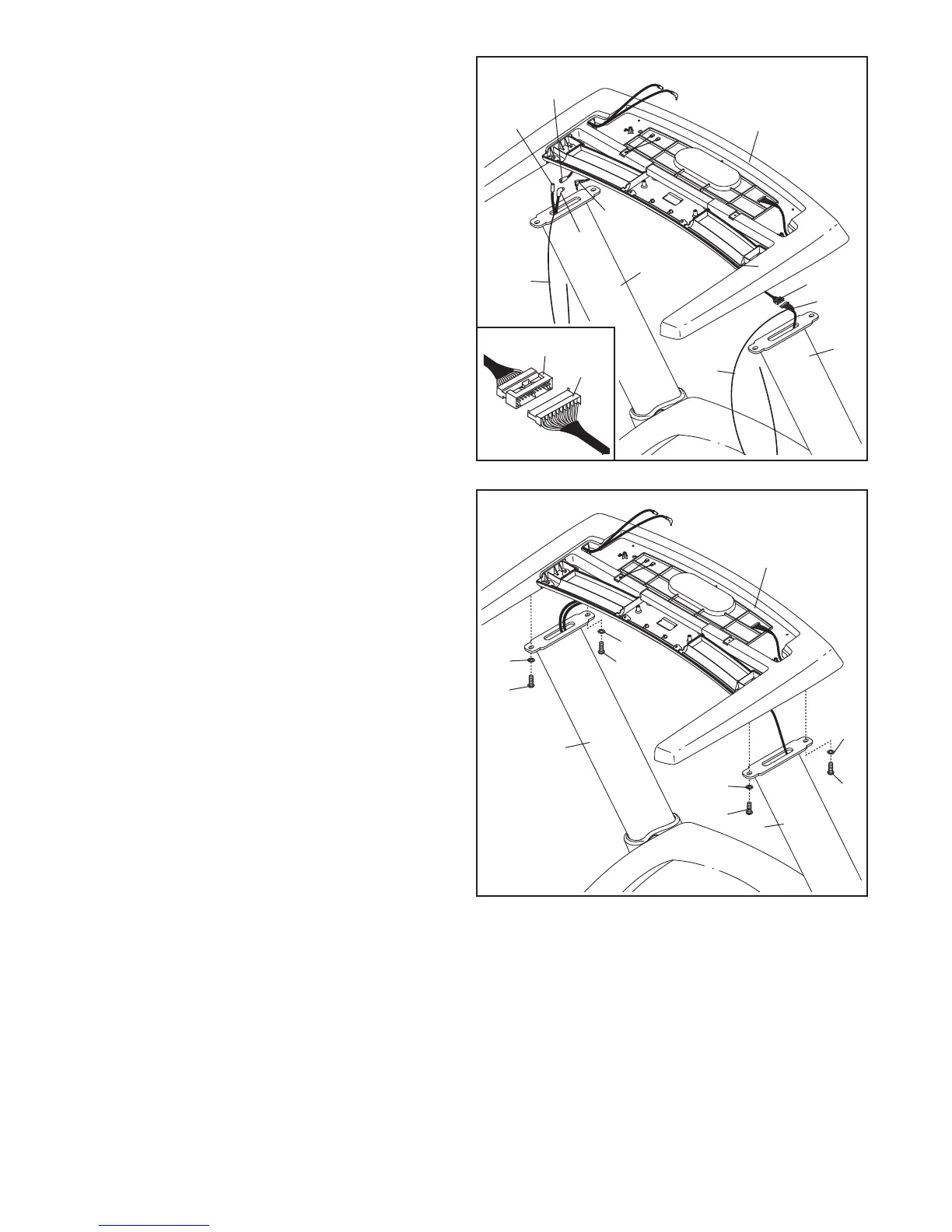

4. With the help of a second person, hold the
handrail assembly near the Uprights (85, 88).
C
onnect the 50" A/V Wire (80) to the 25" A/V
Wire (107) and the 50" TV Cable (81) to the 25"
T
V Cable (108).
With the help of a second person, hold the
handrail assembly near the Uprights (85, 88).
Connect the Upright Wire (86) to the 25" Wire
Harness (103). See the inset drawing. The
connectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Remove the wire tie from the Upright Wire (86).
Remove the wire tie from the 50" TV Cable (81)
and the 50" A/V Wire (80).
Handrail
Assembly
4
86
88
85
103
80
8
1
1
08
107
5. Insert the wires into the Uprights (85, 88) as you
set the handrail assembly on the Uprights. Be
careful not to pinch any wires.
Attach the handrail assembly with four 3/8" x
1 1/4" Patch Bolts (1) and four 3/8" Star
Washers (8). Firmly tighten the Patch Bolts.
Handrail
Assembly
5
88
8
8
1
1
8
1
8
1
85
103
86
Wire
Tie
Wire
Tie
To Next Page
