8

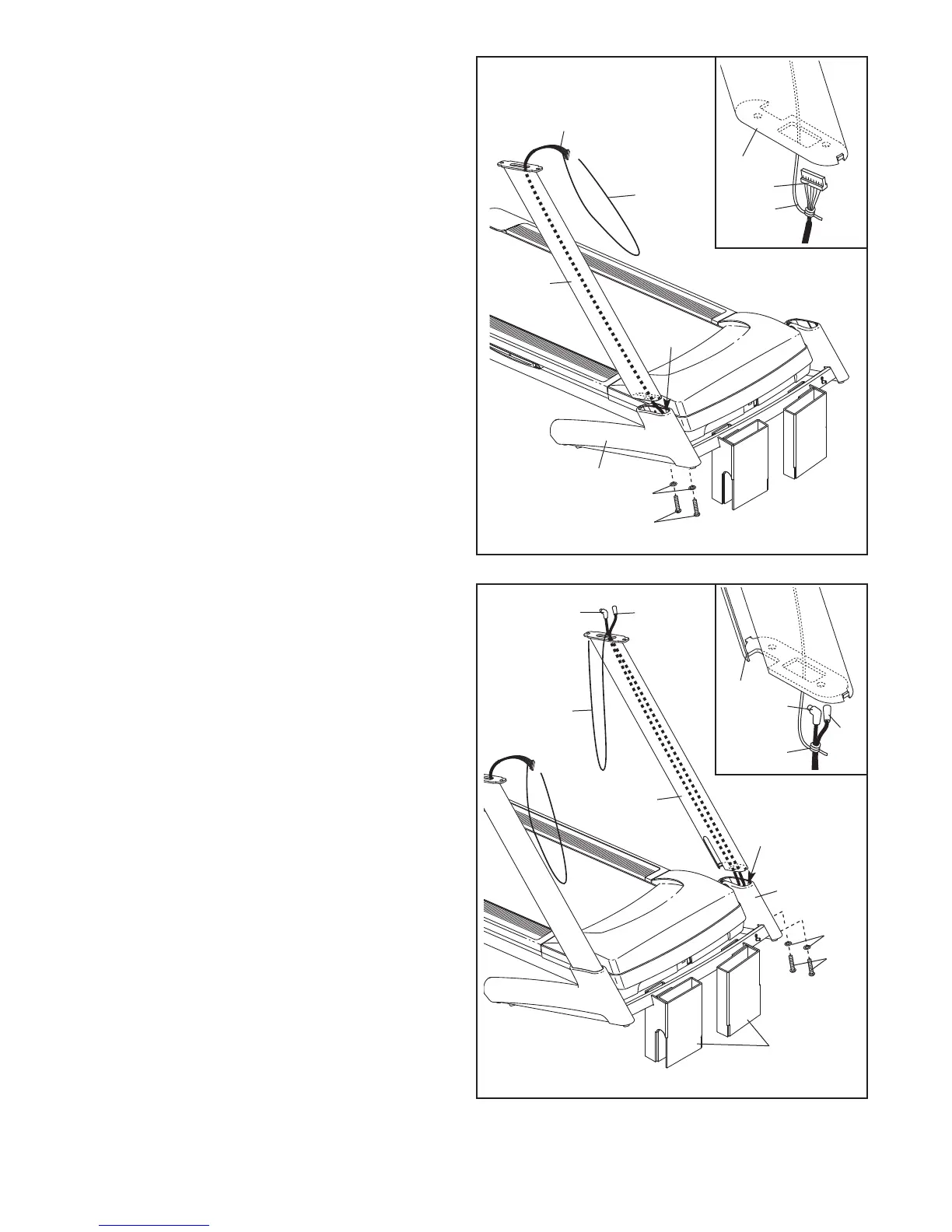

2. Identify the Right Upright (88). See the inset
drawing. Tie the wire tie in the Right Upright se-
curely around the end of the Upright Wire (86).
W
ith the help of a second person, hold the Right
Upright near the Right Base Cover (117). Then,
p
ull the other end of the wire tie up through the
rectangular hole in the bottom of the Right
Upright until the Upright Wire is routed com-
pletely through the Right Upright.
Gently pull up on the Upright Wire (86) as you
set the Right Upright (88) on the Base (115) in-
side the Right Base Cover (117). Be careful not
to pinch the Upright Wire.
Attach the Right Upright (88) to the Base (115)
with two 3/8" x 3 3/4" Patch Bolts (2) and two
3/8" Star Washers (8). Do not tighten the
Patch Bolts yet. Note: It may be necessary to
tip the top of the Right Upright forward slightly
and rotate the bottom as you thread the Patch
Bolts into the Right Upright.
117
Wire
Tie
2
88
86
2
8
86
88
3. Hold Left Upright (85) near the Left Base Cover
(118). See the inset drawing. Tie the wire tie in
the Left Upright securely around the end of the
50" TV Cable (81) and the 50" A/V Wire (80).
Pull the 50" TV Cable (81) and the 50" A/V Wire
(80) up through the rectangular hole in the bot-
tom of the Left Upright (85) and out of the top of
the Left Upright. Set the Left Upright on the
Base (115) inside the Left Base Cover (118).
Attach the Left Upright (85) to the Base (115)
with two 3/8" x 3 3/4" Patch Bolts (2) and two
3/8" Star Washers (8). Do not tighten the
Patch Bolts yet. Note: It may be necessary to
tip the top of the Left Upright forward slightly
and rotate the bottom as you thread the Patch
Bolts into the Left Upright.
With the help of a second person, lower the
treadmill off the cardboard stands. The stands
will be used in assembly step 9.
118
115
3
8
2
85
81
80
115
Cardboard
Stands
80
81
85
Wire
Tie
Wire
Tie
Wire
Tie
To Next Page
