13
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 23 and 24).

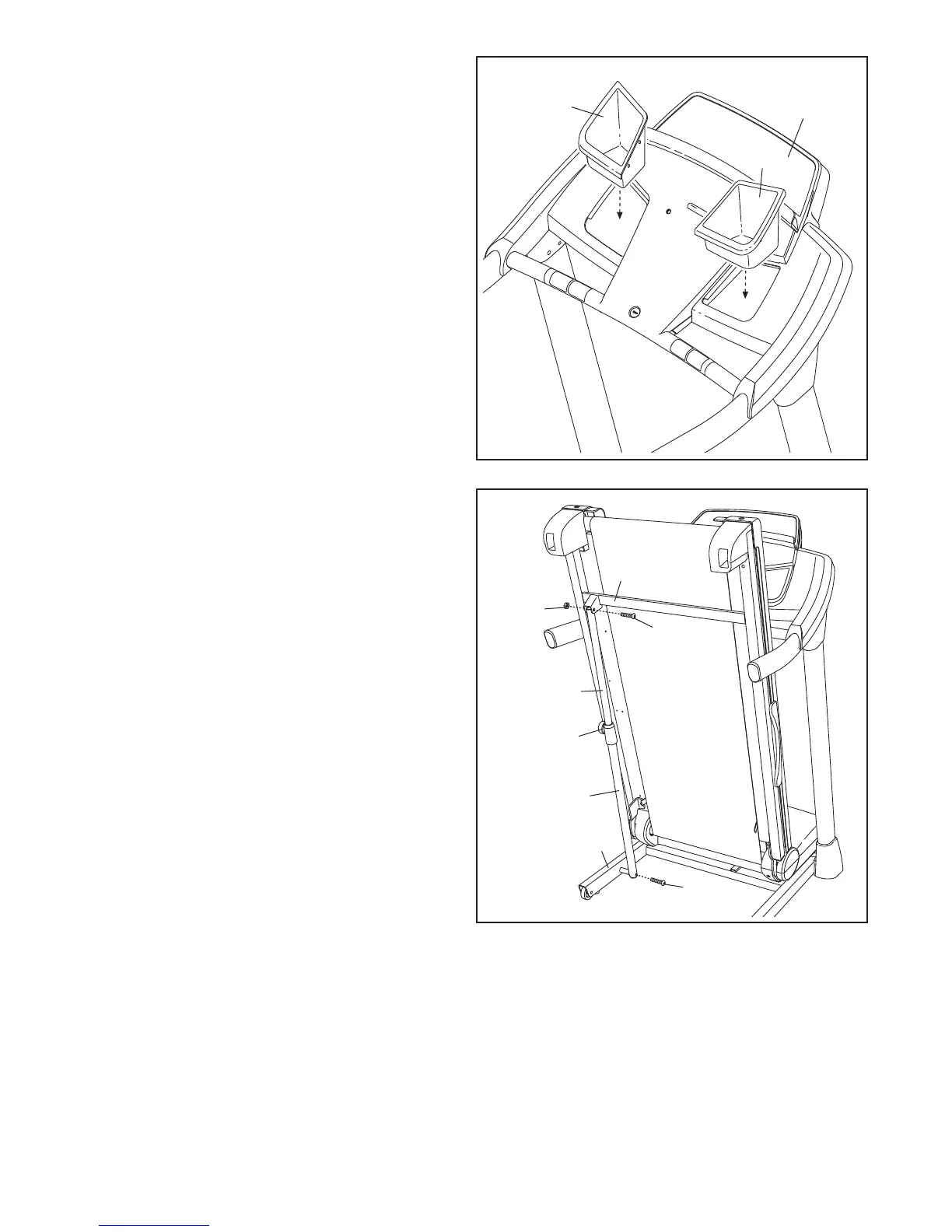

16. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10).
Attach the lower end of the Storage Latch (51) to
the Base (95) with a 3/8" x 1 3/4" Bolt (6). Note:
It may be necessary to move the Frame (55)
back and forth to align the Storage Latch with
the Base.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
51
95
10
Large
Barrel
6
55
16
8
15. If necessary, press the Left Tray (103) and the
Right Tray (104) into the console assembly.
103
1
04
15
C
onsole
Assembly
Latch
Knob
To Next Page
