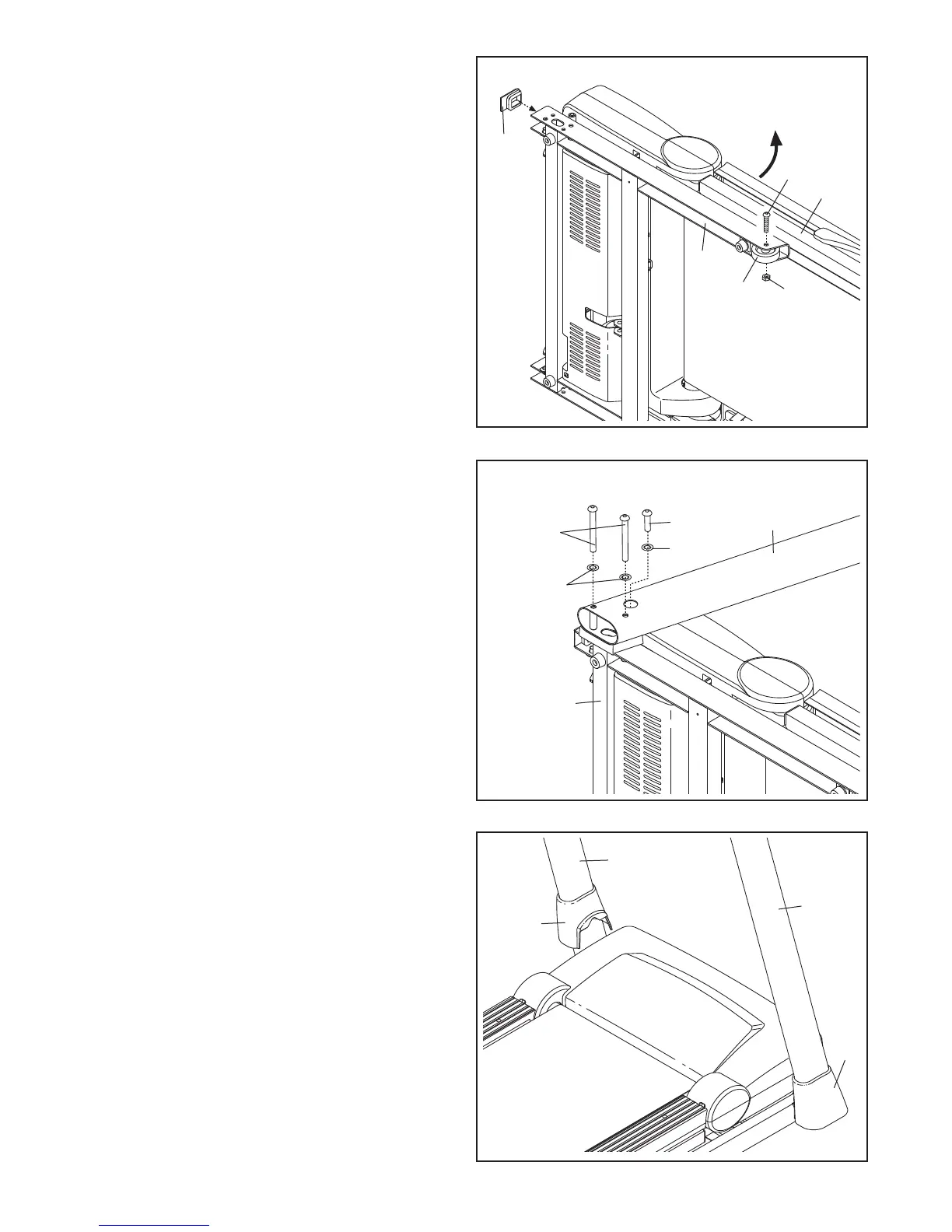

6. Hold the Left Upright (84) against the Base (95).
Insert two 3/8" x 4" Bolts (7) and a 3/8" x 1 1/2"
Bolt (3) with three 3/8" Star Washers (11) into
the Left Upright.
Partially tighten the 3/8" x 4" Patch Bolts (7) until
the heads of the Patch Bolts touch the Left
Upright (84); do not fully tighten the Patch
Bolts yet. Partially tighten the 3/8" x 1 1/2" Bolt
(3).
With the help of a second person, tip the tread-
mill so that the Base (95) is flat on the floor.
84
7
95
11
11
3
6
7. Identify the Left Base Cover (88) and the Right
Base Cover (91). Slide the Left Base Cover onto
the Left Upright (84). Slide the Right Base Cover
onto the Right Upright (85).
91
85
84
88
7
9
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
d
o not fully fold the Frame yet.
A
ttach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
5
8
5
5
10
95
89
96
To Next Page
