13

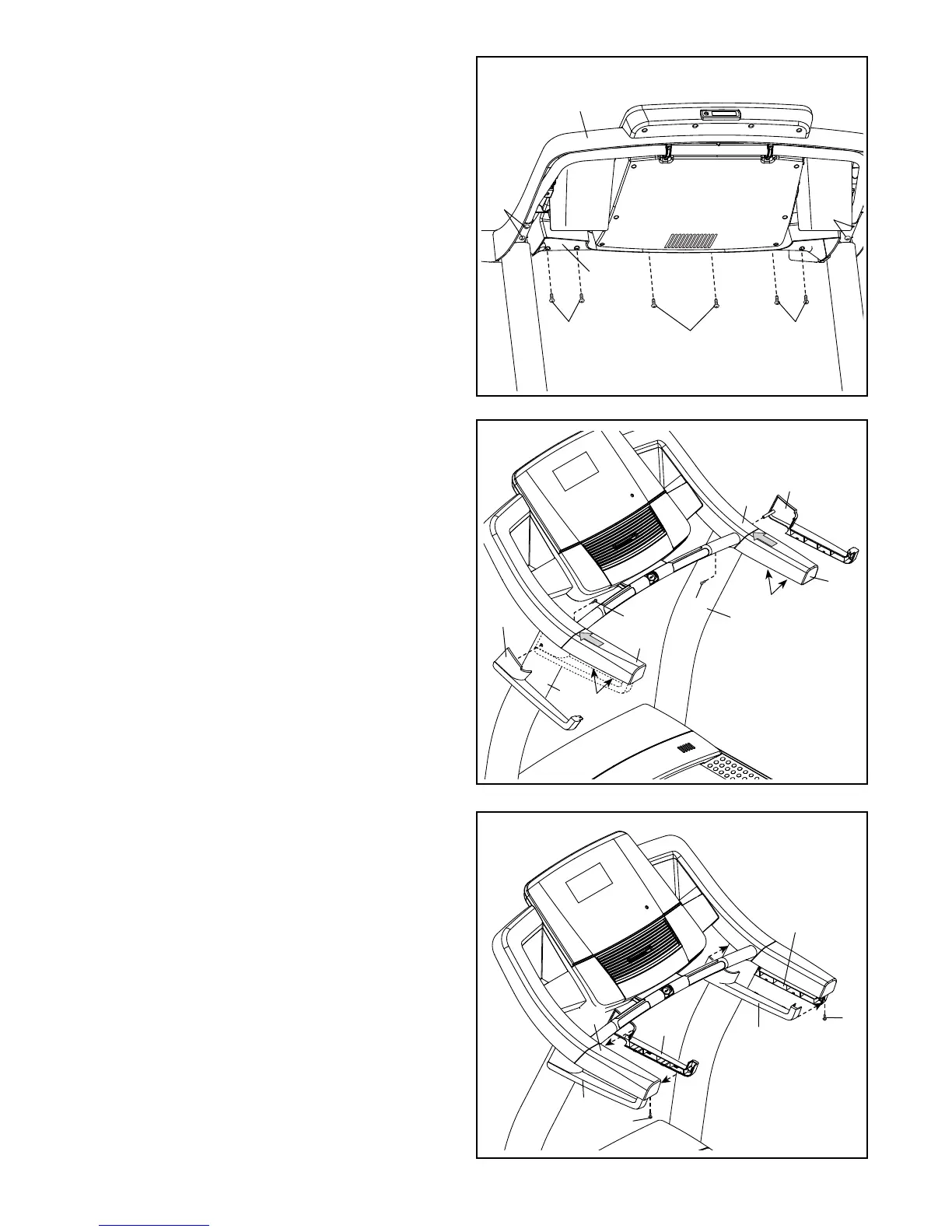

13. Attach the Pulse Crossbar (93) to the console
assembly with six #8 x 1/2" Screws (1). Start all
six Screws, and then tighten them.
Firmly tighten the four 5/16" x 3/4" Screws (4).
13
93
Console
Assembly
4
4
1
1
1
14. Check the gaps between the handrail assem-
blies (B, D) and the console assembly (F).
If necessary, loosen the #8 x 3/4" Screws (2)
under the handrails and slide the handrails
forward against the console assembly. Then,
retighten the Screws.
Attach the Left Outside Upright Cover (87) and
the Right Outside Upright Cover (96) to the Left
and Right Uprights (89, 90) with two #8 x 1/2"
Screws (1). Note: Rotate the Covers at an
angle as you set them against the Uprights.
Make sure not to overtighten the Screws.
14
96
89
90
1
1
87
F
2
D
B
2
88
B
87
95
96
15
15. Tighten a #8 x 3/4" Screw (2) into the Left
Outside Upright Cover (87) and into the bottom
of the left handrail assembly (B). Make sure not
to overtighten the Screw.
Press the Left Inside Upright Cover (88) against
the Left Outside Upright Cover (87) until they
snap together.
Repeat the steps above on the other side of
the treadmill with the Right Inside Upright
Cover (95) and the Right Outside Upright
Cover (96).
2
2
