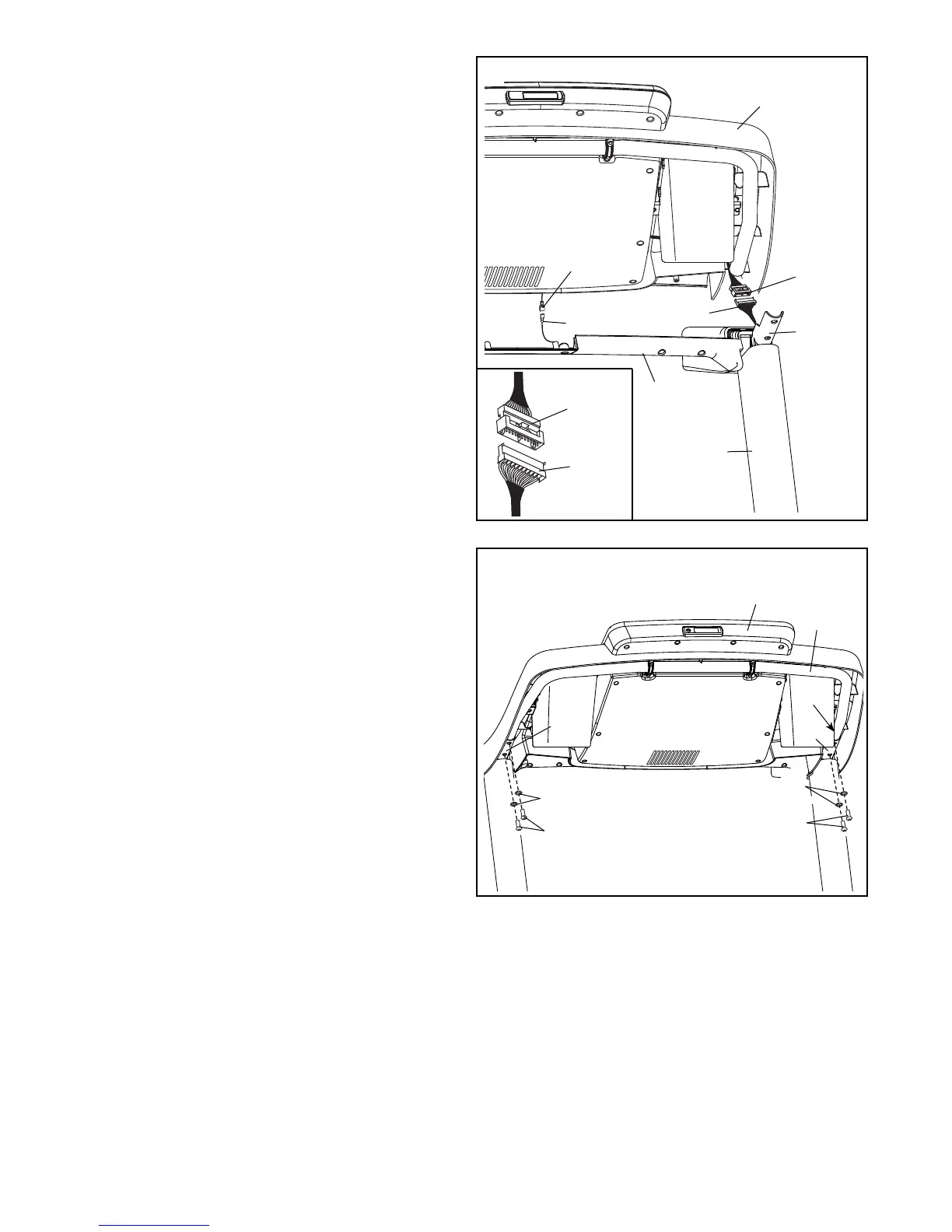

11. With the help of a second person, hold the con-
sole assembly near the left Handrail (86) and the
right Handrail (not shown).
Connect the ground wire from the console
assembly to the Console Ground Wire (105) on
the Pulse Crossbar (93).
Connect the Upright Wire (81) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
11
Console
Assembly
81
81
Wire
Tie
Console
Wire
Console
Wire
86
105
Ground
Wire
93
12. Set the console assembly on the brackets on the
Handrails (86). Make sure that no wires are
pinched. Insert the excess Upright Wire (81)
behind the Console Frame (104).
Attach the console assembly to the brackets
on the Handrails (86) with the four 5/16" x 3/4"
Screws (4) you removed in step 8 and four 5/16"
Star Washers (11). Start all four Screws, but
do not tighten them yet.
12
86
Console
Assembly
4
4
81
86
104
11
11
