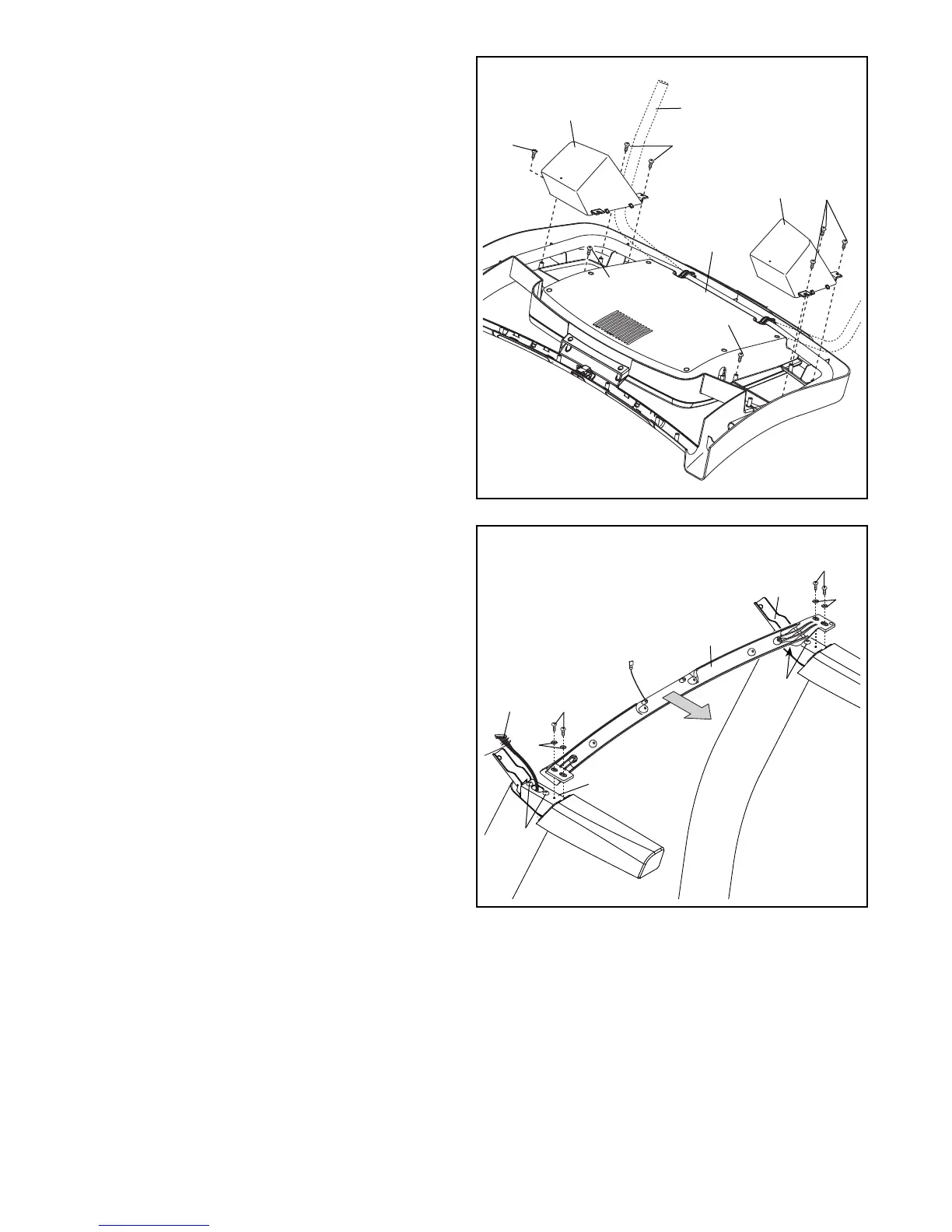

9. Identify the Left and Right Trays (36, 27).
Attach the Trays (36, 27) to the Console
Base (64) with eight #8 x 1/2" Screws (1).
Note: It may be easier to start the two inside
Screws and then slide the Trays into place
before tightening the other six Screws.
Note: It may be necessary to rotate the
Console Frame (104) upward when attaching
the Trays (36, 27).
1
1
1
10. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (93) as shown. Attach
the Pulse Crossbar to the Handrails (86) with
four #10 x 3/4" Screws (9) and four #10 Star
Washers (5). First, start all four Screws. Next,
slide the Crossbar as far as possible in the
direction shown by the arrow. Then, tighten
the Screws.
Make sure that the Upright Wire (81) isn’t
pinched. Firmly tighten the four 5/16" x 2 3/4"
Screws (28).
10
9
9
5
5
28
28
86
93
86
81
