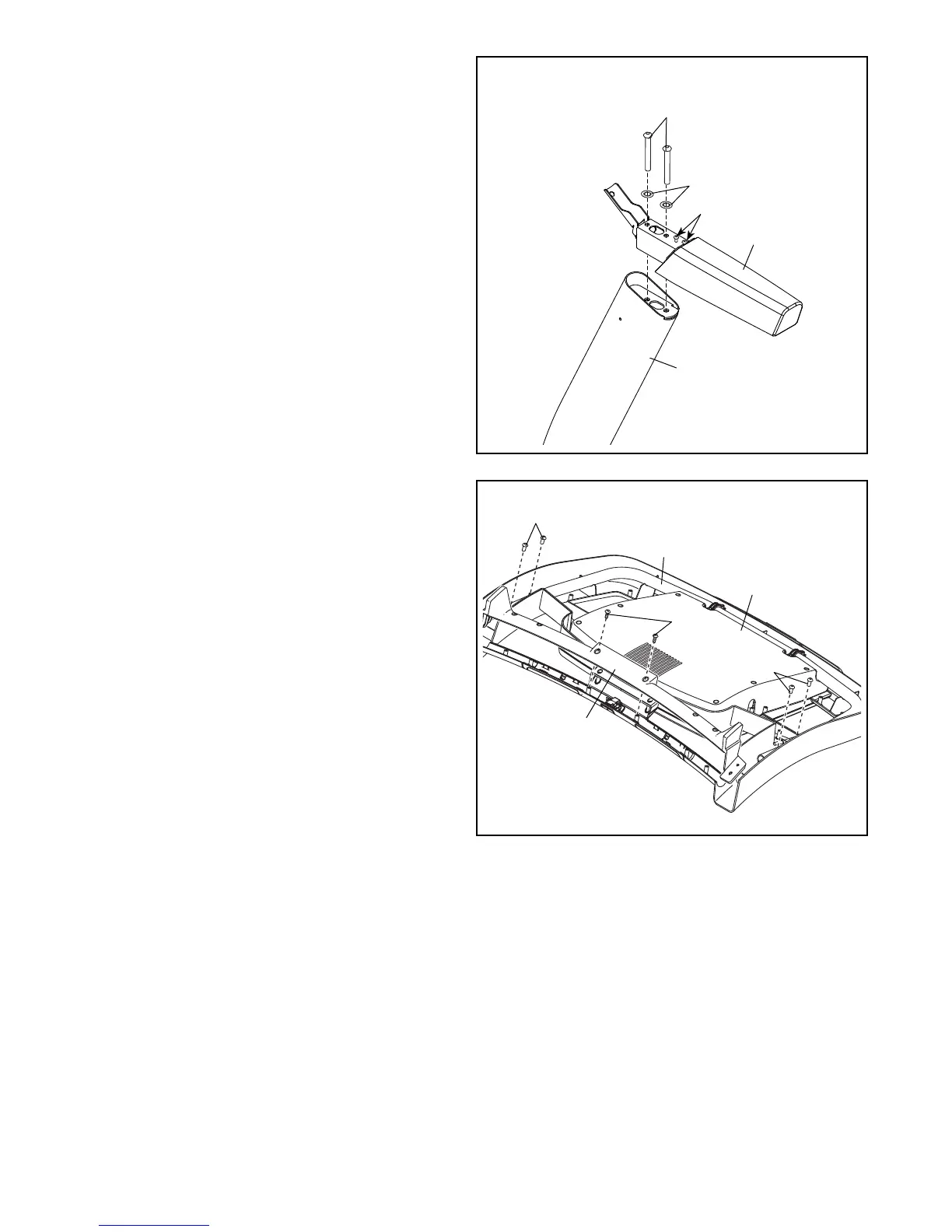

7. Attach the right handrail assembly (D) to the
Right Upright (90) with two 5/16" x 2 3/4" Screws
(28) and two 5/16" Star Washers (11). Start both
Screws, but do not tighten them yet.
Remove and discard the two indicated screws
(C) from the right handrail assembly (D).
7
90
D
C
28
11
4
64
93
E
8
8. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Remove the two screws (E) from the Pulse
Crossbar (93). Remove the Pulse Crossbar and
discard the screws.
Remove and save the four 5/16" x 3/4"
Screws (4) from the Console Frame (104). The
Screws will be used in step 12.
104
4
4
To Next Page
