9

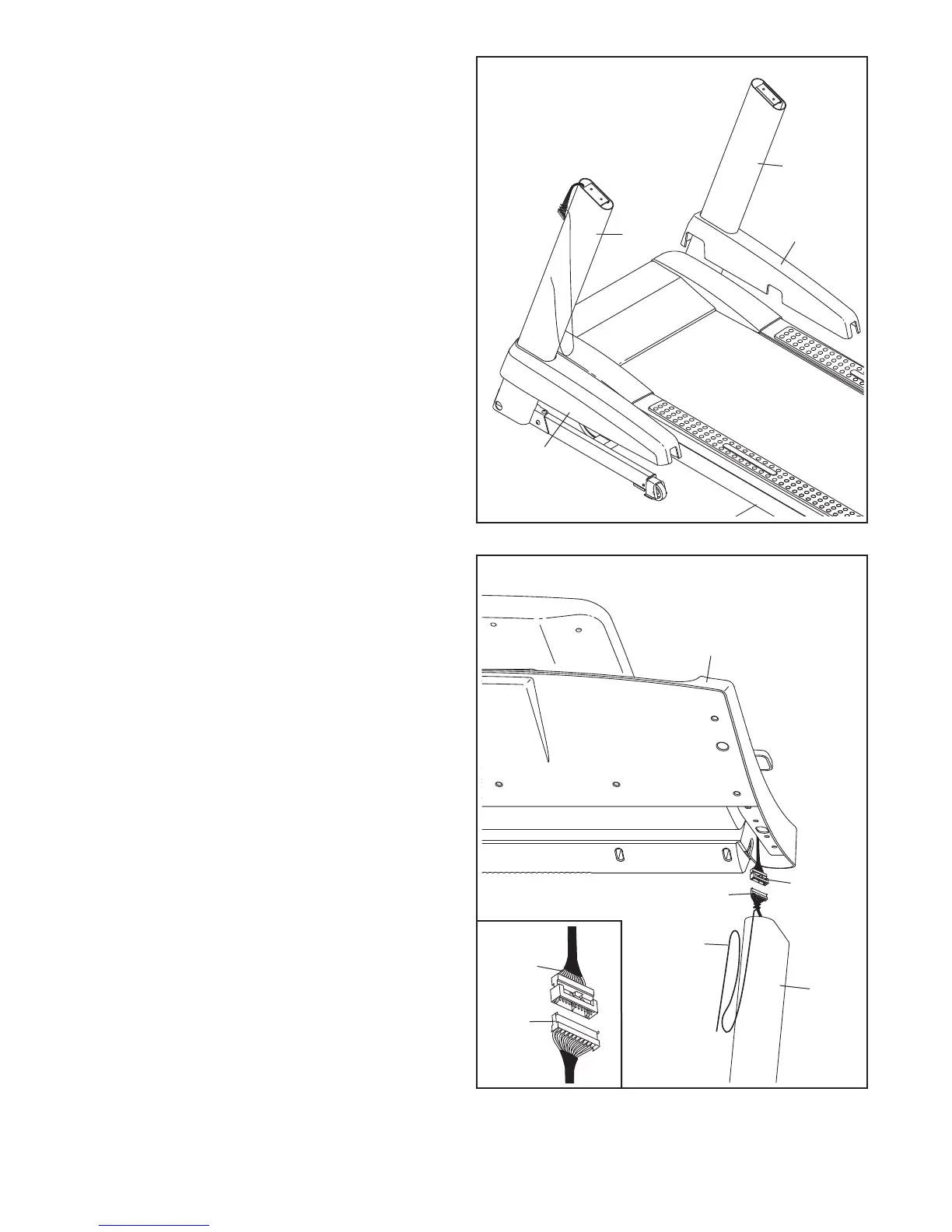

6. With the help of a second person, hold the con-
sole assembly near the Left Upright (89).
Connect the Upright Wire (84) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Console
Assembly
Console
Wire
Wire
Tie
89
84
84
Console
Wire
6
5. Identify the Left and Right Base Covers (92, 93).
Slide the Left Base Cover onto the Left Upright
(89). Slide the Right Base Cover onto the Right
Upright (90). Do not press the Base Covers
into place yet.
89
92
90
93
5
To Next Page
