11

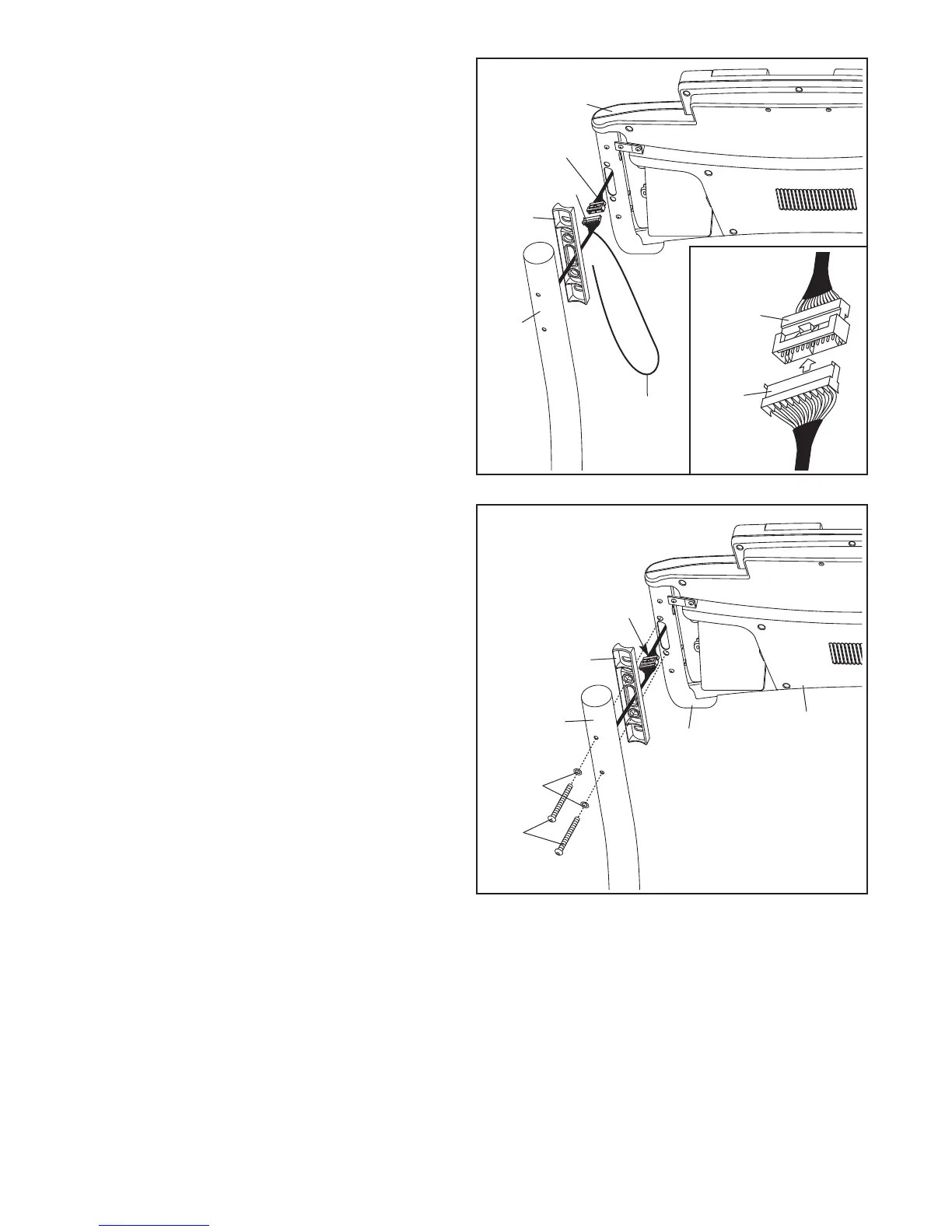

11. Hold a Handrail Spacer (77) near the top of the
Right Upright (112) as shown. Insert the Wire
Harness (79) through the large hole in the cen-
t
er of the Handrail Spacer.
H
ave a second person hold the console assem-
bly near the Right Upright (112).
Connect the Wire Harness (79) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, remove the wire tie from
the Wire Harness.
1
1
77
C
onsole
Wire
79
79
Wire
Tie
12. Have a second person set the console assem-
bly on the Handrail Spacer (77) and the Right
Upright (112) as you insert the wires into the
Right Upright.
Partially tighten two 5/16" x 4" Bolts (12) with two
5/16" Star Washers (4) into the Right Upright
(112) and the Right Handrail (107); do not
tighten the Bolts yet.
Repeat this step on the left side of the tread-
mill. Then, fully tighten the four 5/16" x 4"
Bolts (12).
Console
Assembly
12
77
Wires
112
112
12
4
Console
Wire
107
Console
Assembly
To Next Page
