10

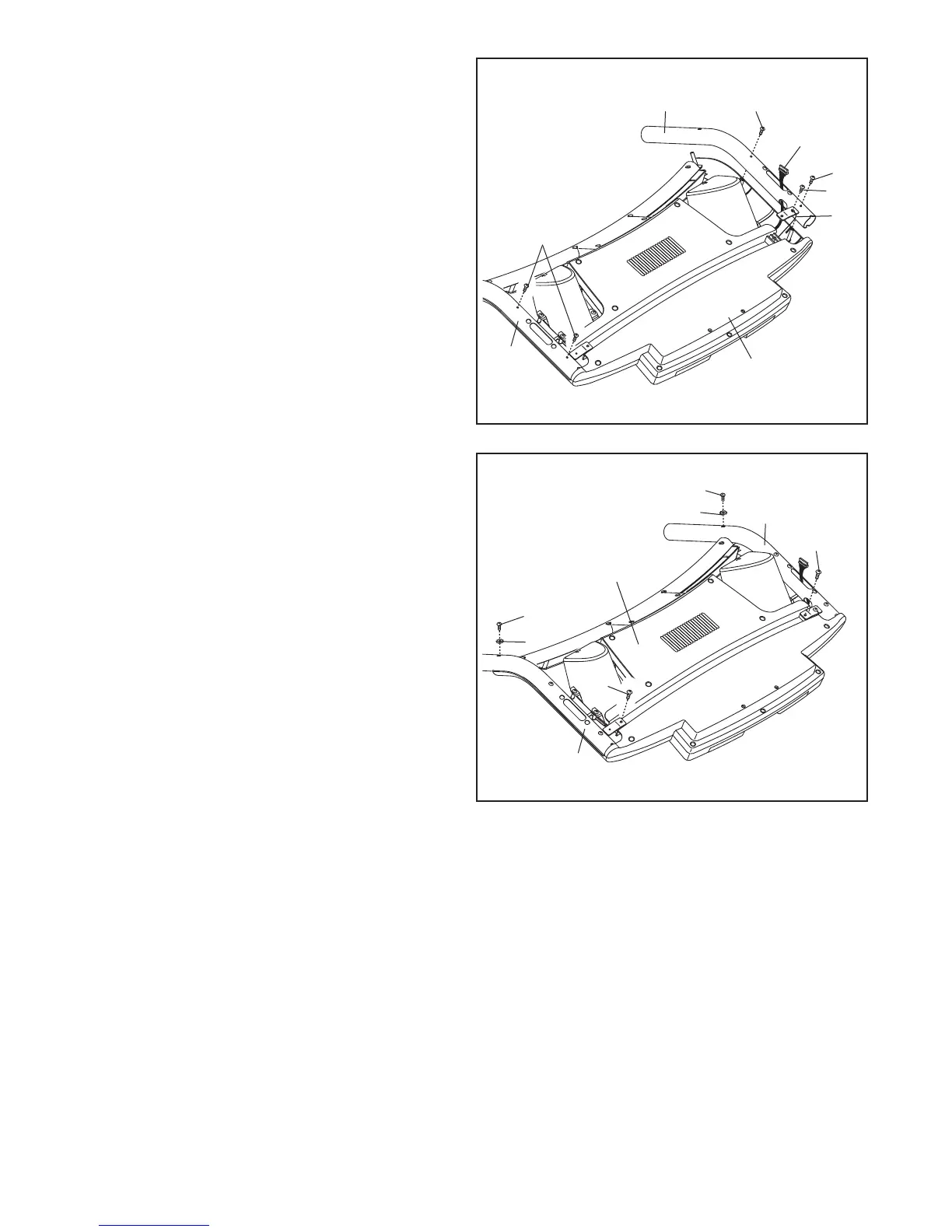

9. Hold the Right Handrail (107), which is labeled
with a sticker, near the console assembly. Insert
the console wire into the hole in the side of the
R
ight Handrail.
A
ttach the Console Ground Wire (102) to the
bracket on the Right Handrail (107) with the #8 x
1/2" Ground Screw (16).
Set the Handrails (106, 107) on the console as-
sembly. Start four #8 x 3/4" Screws (1) into the
Handrail; do not fully tighten the Screws yet.
Be careful not to pinch the console wire.
Console
Assembly
Console
Wire
9
1
1
107
106
1
10. Partially tighten two #8 x 3/4" Screws (1) into
the Left and Right Handrails (106, 107); do not
fully tighten the Screws yet.
Tighten two #10 x 1/2" Bolts (11) with two #10
Star Washers (3) into the Left and Right
Handrails (106, 107).
See assembly steps 9 and 10. Tighten the six
#8 x 3/4" Screws (1). Do not overtighten the
Screws.
10
Console
Assembly
11
3
11
3
107
106
1
02
16
1
1
To Next Page
