7

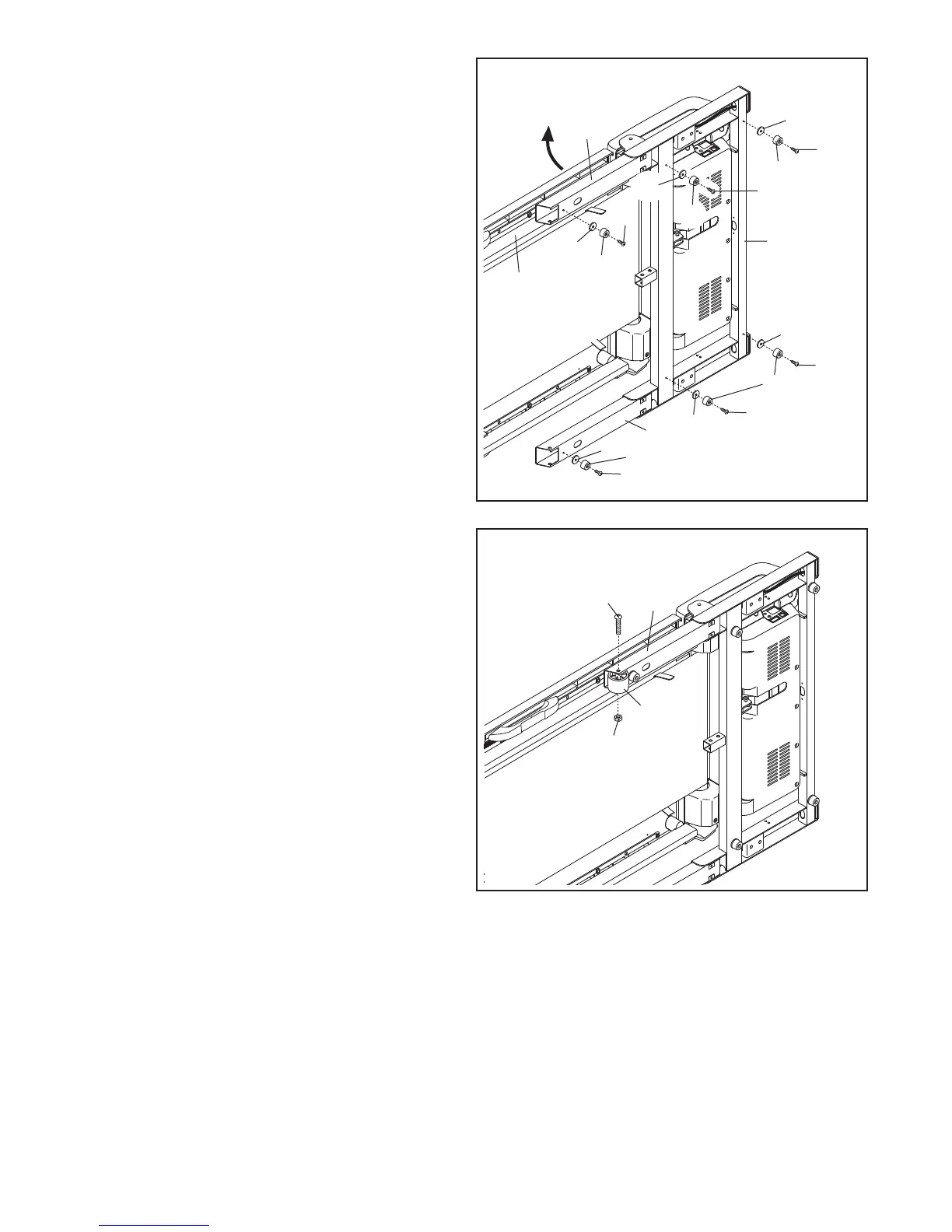

2. Attach a Wheel (92) to the indicated Extension
Leg (90) with a 3/8" x 2 3/4" Bolt (6) and a 3/8"
Nut (5). Do not overtighten the Nut; the
Wheel must turn freely.
2
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
t
he treadmill onto its side as shown. Partially
fold the Frame (54) so the treadmill is more sta-
b
le. Do not fully fold the Frame until the
treadmill is completely assembled.
Attach six Base Feet (88) and six Base Foot
Spacers (87) to the Base (85) and the Extension
Legs (90) in the locations shown with six #8 x 1"
Tek Screws (8). Do not overtighten the Tek
Screws.
1
85
90
90
8
8
8
88
88
87
54
87
87
87
6
5
92
90
88
8
87
8
88
8
7
8
8
8
