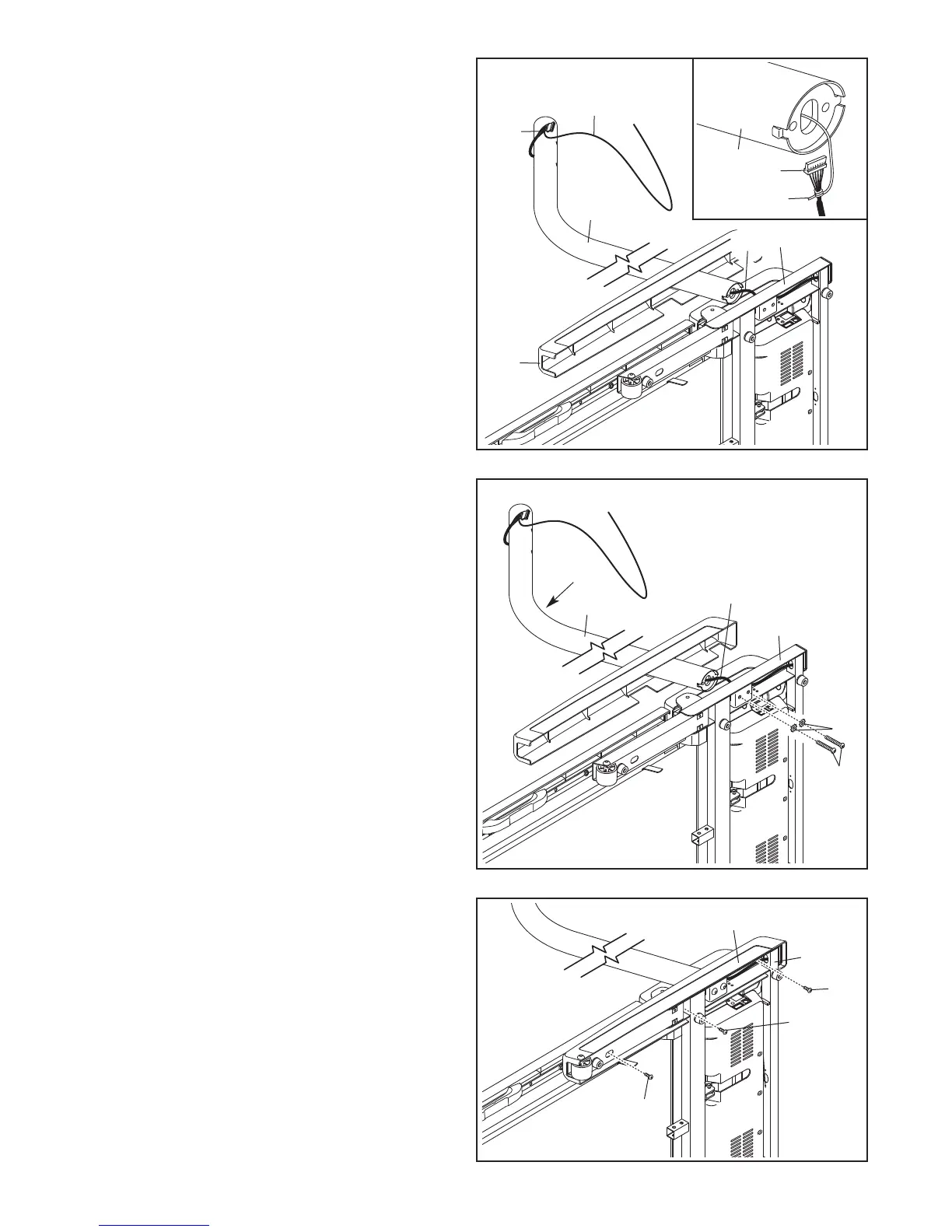

3. Identify the Right Upright (112), which is marked
with a sticker. Have a second person hold the
Right Upright near the Base (85) as shown.
S
lide the Right Base Cover (119) onto the end
of the Right Upright.
See the inset drawing. Tie the wire tie in the
Right Upright (112) securely around the end of
the Wire Harness (79). Then, pull the other end
of the wire tie until the Wire Harness is routed
completely through the Right Upright.
3
119
Wire
Tie
85
79
4. Have a second person hold the Right Upright
(112) against the Base (85), with the bend in the
Right Upright positioned as shown. Be careful
not to pinch the Wire Harness (79).
Attach the Right Upright (112) to the Base (85)
with two 3/8" x 2 3/8" Bolts (10) and two 3/8"
Star Washers (18); do not fully tighten the
Bolts yet.
4
10
85
Bend
18
112
79
5. Slide the Right Base Cover (119) over the Base
(85). Attach the Right Base Cover with three #8
x 3/4" Screws (1). Do not overtighten the
Screws.
5
1
1
1
85
119
7
9
112
Wire Tie
8
79
112
To Next Page
