Nordyne SC038D-23A User Manual

28
A
23 ½
C
34
½
22 ½
2 ¾
BOTTOM
PA N EL
Ø 3” HOLE
FOR VENT
PIPE
25 ⅜
22 ½
17 ¼
17 ⅞
28
B
19
Ø 1 ⅝ HOLE
FOR GAS
Ø1 ⅝ HOLE
FOR GAS
22 ½
24 ⅞
15
23
1 ¼
FRONT BRACE
BOTTOM VIEW
FLANGES
TOP VIEW
4 KNOCKOUTS
(BOTH SIDES)
1
LEFT SIDE
RIGHT SIDE
Ø ⅞ HOLE FOR
THERMOSTAT
CONDENSATE
Ø ⅞ HOLE
FOR ELECTRIC
CONDENSATE
Ø ⅞ HOLE
FOR ELECTRIC
3
7 ½
Ø ⅞ HOLE FOR
THERMOSTAT
Ø 3” HOLE
FOR VENT
PIPE
FLUE
INLET AIR

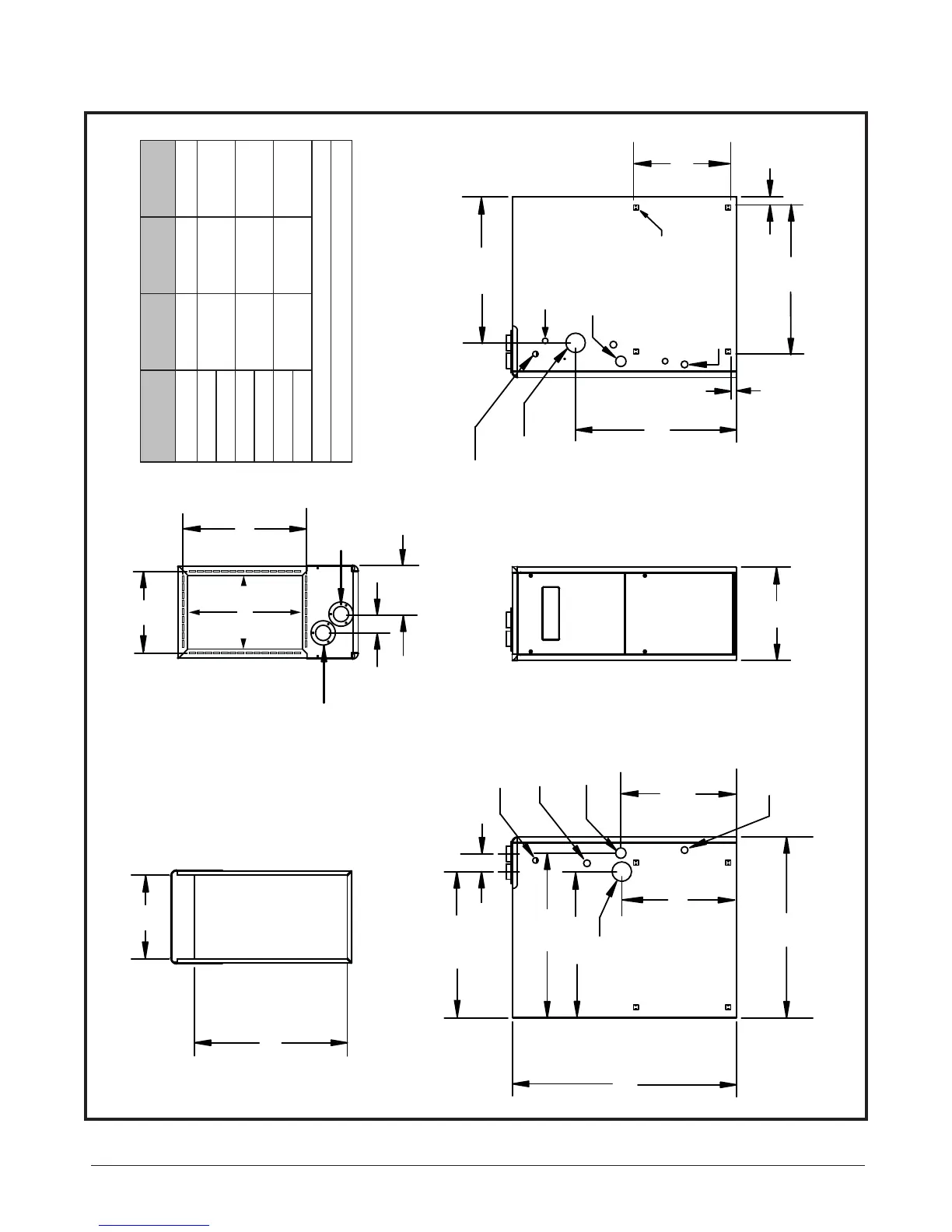

Figure 22. *SC 92.1% High Effi ciency Upfl ow/Horizontal Furnaces
*SC
Model #’s
Dimension
“A”
Dimension
“B”
Dimension
“C”
038D-23A
14
¼
12
⅝
12
⅞
054D-24B
17
½
15
⅞
16
⅛
072D-24B
072D-35C
21
19
⅜
19
⅝
090D-35C 108D-45D
24
½
22
⅞
23
⅛
120D-45D
NOTES:
Dimensions shown in inches.
FURNACE DIMENSIONS

Nordyne SC038D-23A Specifications
