Outdoor Temperature Sensor Installation Guidelines
• Avoid areas with direct sunlight and where temperatures may not be representative of true outdoor temperature.
• Best location to install the temperature sensor is on a North or Northeast facing side of the structure, beneath the eaves,
where the sensor is shielded from direct sunlight.
• Avoid placing sensor in close proximity of heat sources that may affect correct temperature sensing. (fans, exhausts, vents, lights)
• Avoid installing the sensor in areas where the sensor is subjected to excessive moisture.
• Caution should be taken to avoid potential electromagnetic interference (EMI) by routing separately from potential sources
such as line voltage wiring. When necessary, shielded cable may be used.
• Make sure wiring connections are secure before closing the cap.
• The sensor is a water resistant device.
• Any damage to the device may require the replacement of the entire component.
Outdoor Temperature Reset
Chapter5.–Setting
Outdoor Temperature
Sensor

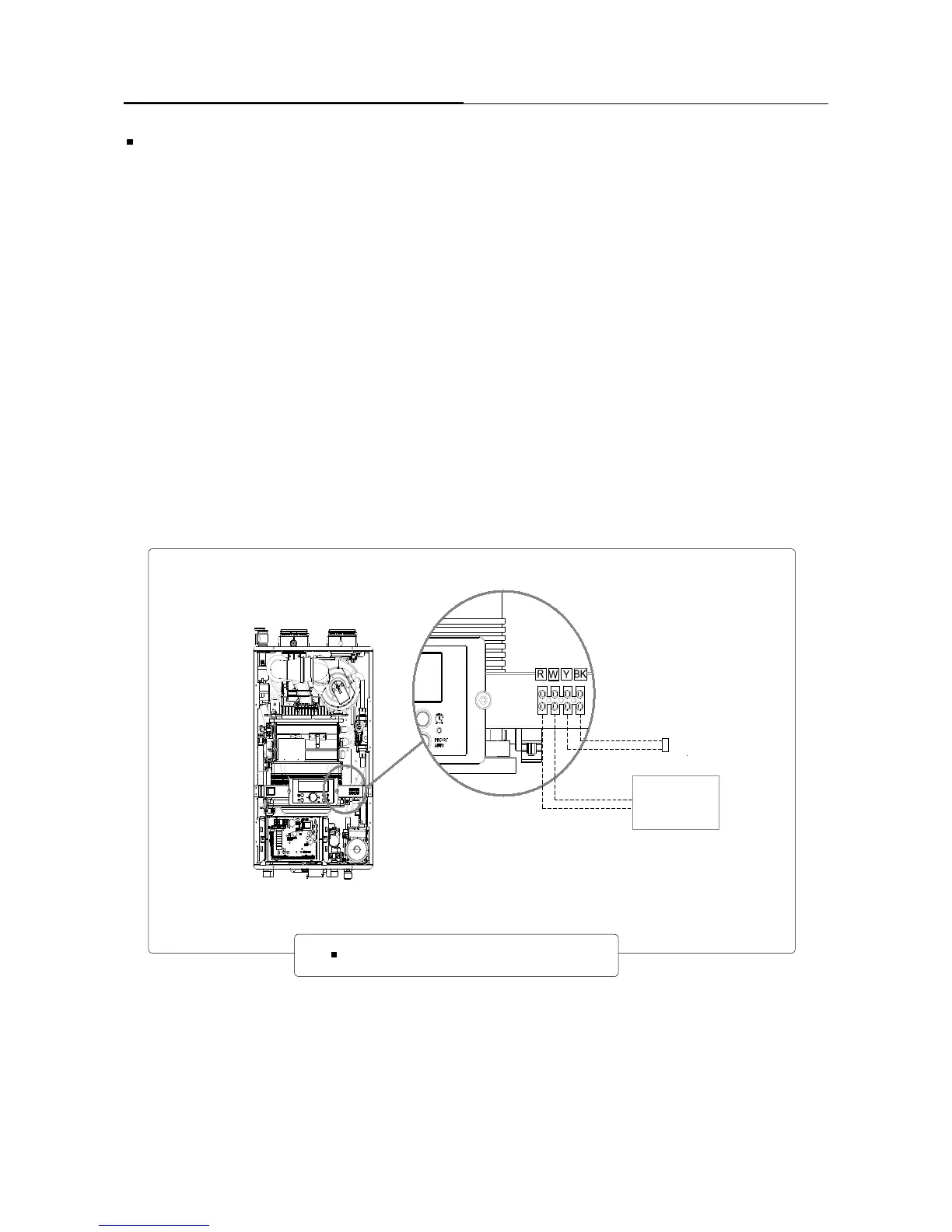

Outdoor Temperature Sensor Connection
Heat Demand
(0-10V)
Connection
*Call Noritz for the details.
