Noritz NCC300DV - Vent Pipe Installation; Alternate Horizontal Vent Termination- PVC, CPVC or PP Material

16
Vent Pipe Installation
Alternate Horizontal V
ent Termination- PVC, CPVC or PP Material

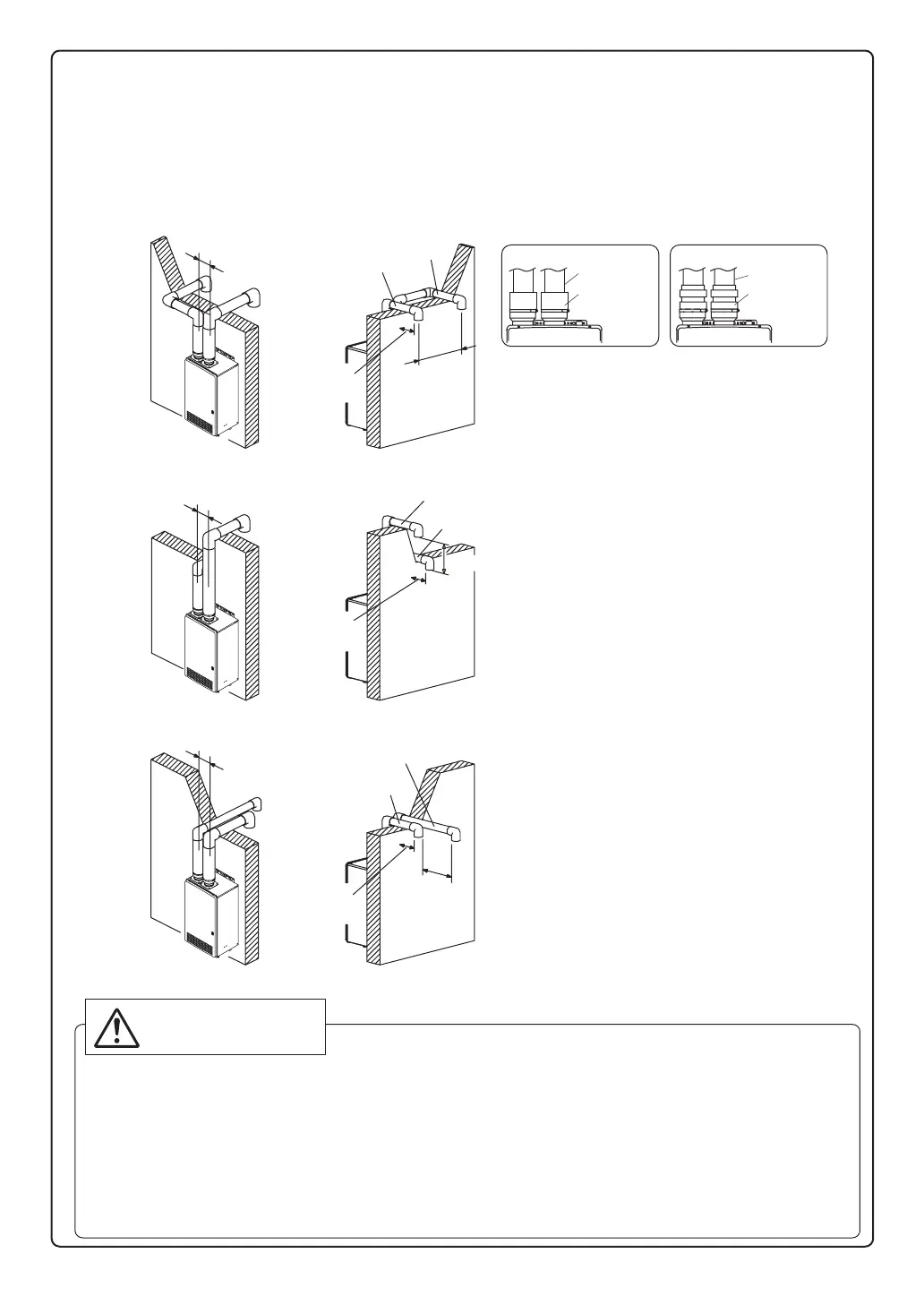

Ensure at least 2ft (0.6m) or more distance
between intake pipe and exhaust pipe.
The distance is measured at inside of pipe
to inner dimension.
•
Upper side is exhaust, lower side is intake.
The reverse orientation is not allowed.
Ensure at least 1ft (0.3m) or more distance
between intake pipe and exhaust pipe.
The distance is measured at the outlets of
intake port (terminal) and exhaust port (terminal).
•
•
The side distant from wall is intake, the side
near the wall is exhaust.
The reverse orientation is not allowed.
Ensure at least 1ft (0.3m) or more distance
between intake pipe and exhaust pipe.
The distance is measured at inside of pipe to
inner dimension.
•
•
•
WARNING
If the distance between the air inlet and exhaust vent terminations is too short, the water heater
will draw in the exhaust gases through the intake. There is a risk of inadequate combustion air
for the water heater, increasing Carbon Monoxide (CO) emissions and noise due to vibration.
•
Termination elbows must be oriented vertically, pointing directly downward. Attempts to prevent
exhaust air from entering the air inlet by angling termination elbows in directions other than
directly downward will increase the risk of freezing.
•
Reversing the air intake and exhaust pipes is not allowed.
Carbon Monoxide (CO) emissions and noise due to vibration will increase.
* When 3’
(0.9m) distance between Intake and Exhaust cannot be ensured.
* Can not use Hood termination (PVT
-HL)
* Insert the bird screen. 90° elbow vertical setting (downward).
* Ensure at least 3ft (0.9m) or more distance between the near edge of the air intake pipe or exhaust pipe to the
inside corner of a wall.
* Intake and exhaust should face the same direction. Intake and exhaust should keep the same pressure zone.
6.3"
6.3"
Exhaust
Exhaust
Intake
Intake
Ӎ2ft. Min
Ӎ1ft. Min
Ӎ
3" Min
㸦between outside
wall and termination)
Ӎ3" Min
(between outside
wall and termination)
㸦between outside
wall and termination)
Interior View
Exterior View
Interior View
Exterior View
Interior View
Exterior View
6.3"
Exhaust
Intake
Ӎ1ft. Min
Ӎ3" Min
When using 4" PP pipe
4" PP Adapter
ISAAN0404
4" pipe
4" pipe
When using 4" PVC/CPVC pipe
4"x4" coupling
