Noritz NCC300DV - Page 47

47
Unit 2
Units 3-6
Unit 1
Remote Controller Cord
Remote Controller Cord
Remote
Controller
Remote control
terminal block
No.6
90 90
90
90
89
102
PCB
Power
PCB
B5 B5
System Controller
No.5
No.4
No.3
No.2
Remote Control
terminal block
Remote control
terminal block
Remote Controller Cord
PCB
Power
PCB
PCB
Power
PCB

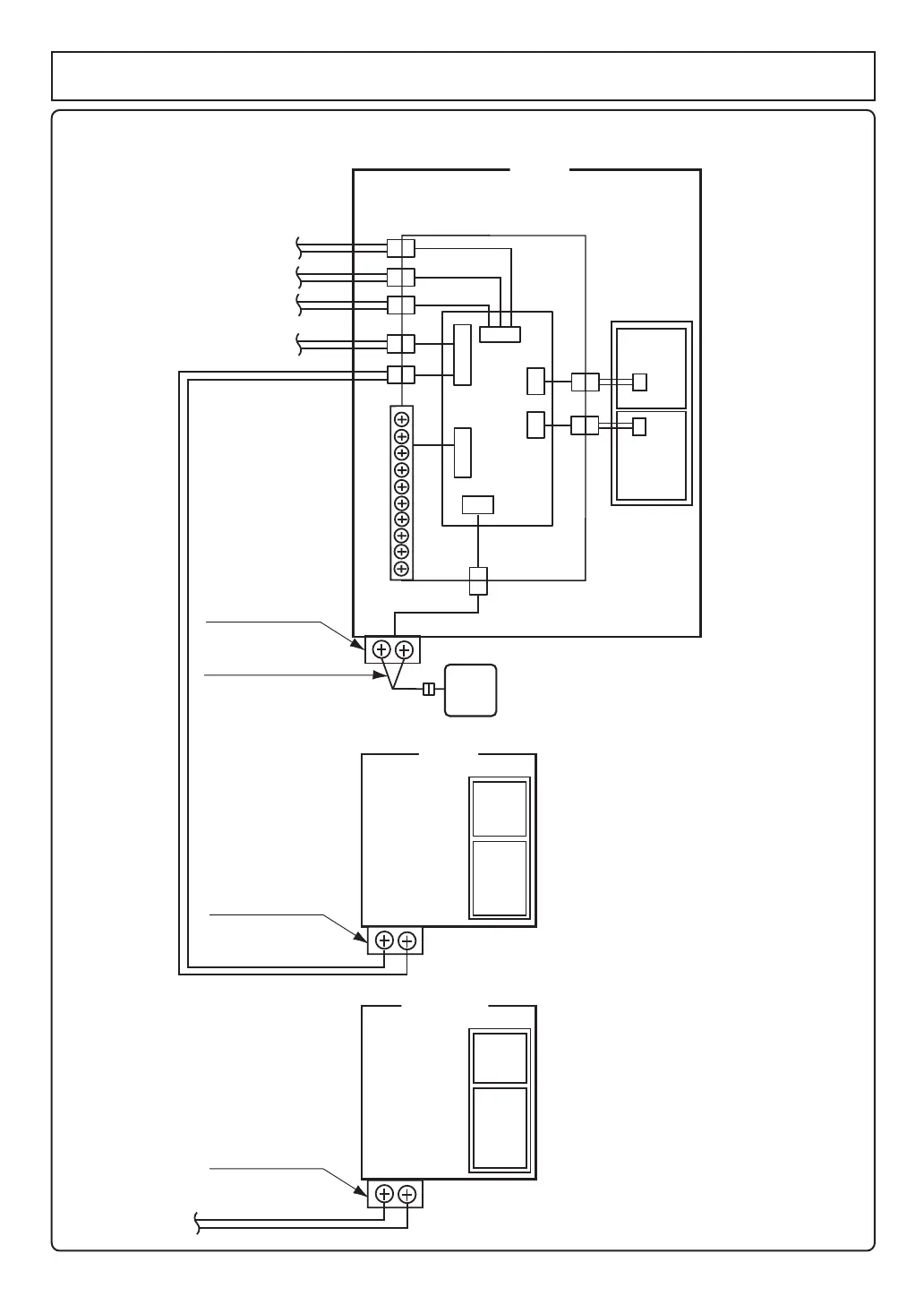

Multi-System Wiring (Use SC-301-6M, SC-401-6M)
* The remote controller terminal
location may di󰀨er depending
on the unit.
* Connect these to the
remote control terminal
block in each unit
