Noritz NR83-DVC Installation Manual

8
7.
Installation
Securing to the wall

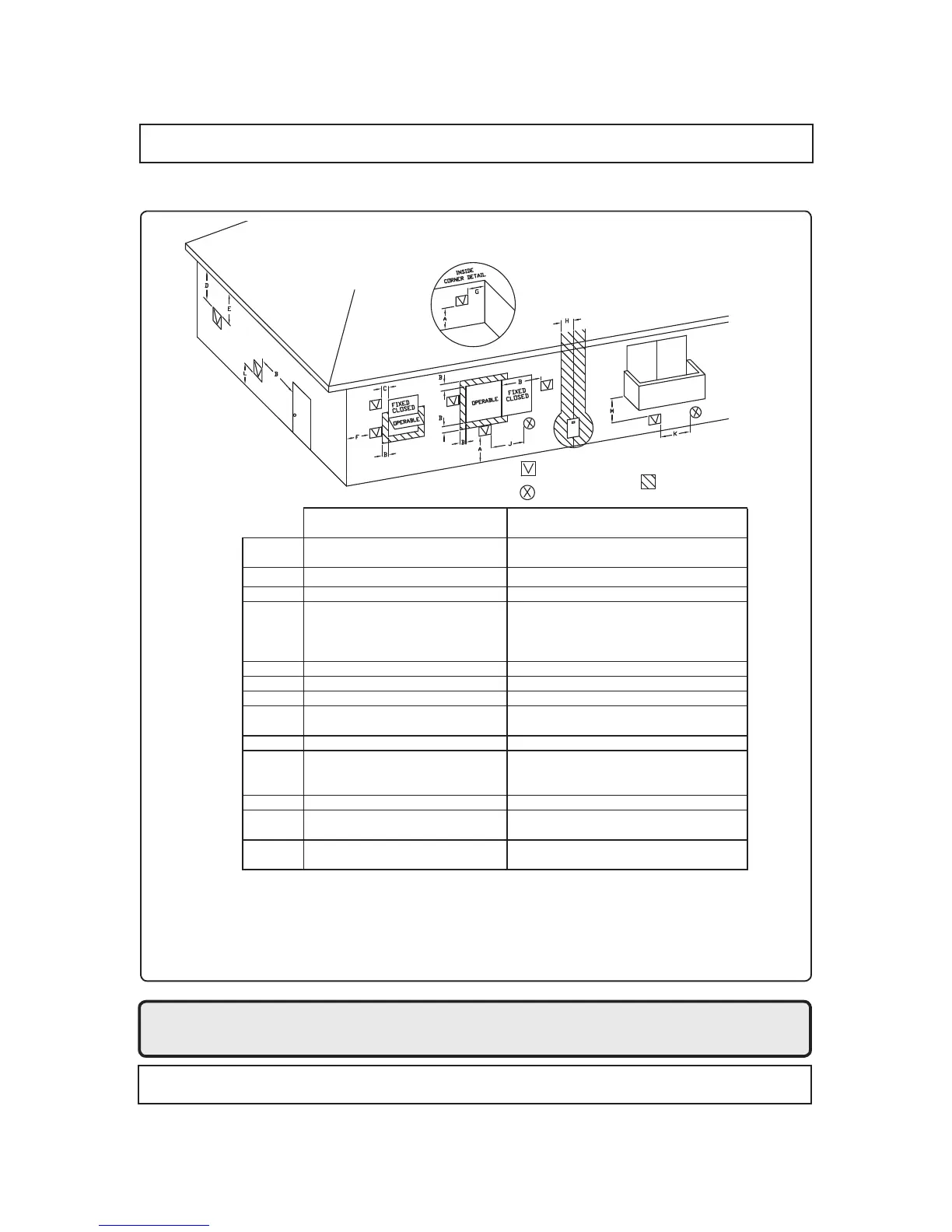

Clearance Requirements from Vent Terminations to Building Openings
* All clearance requirements are in accordance with ANSI Z21.10.3 and the National Fuel Gas Code,
ANSI Z223.1 and in Canada, in accordance with NSCNGPIC.
Clearance
A=
Above grade, veranda, porch, deck,
or balcony
B=
Window or door that may be opened
C=
Permanently closed window
D=
Vertical clearance to ventilated soffit
located above the terminal within a
horizontal distance of 2' (0.6m) from
the center of the terminal
*
E=
Unventilated soffit
*
F=
Outside corner
*
G=
Inside corner
*
H=
Each side of center line extended
above meter/regulator assembly
3' (0.9m) within a height 15' (4.5m)
above meter/regulator assembly
I=
Service regulator vent outlet
3' (0.9m)
J=
Nonmechanical air supply inlet or
combustion air inlet to any other
appliance
12" (300mm) [36" (900mm)]
K=
Mechanical air supply inlet
3' (0.9m) above if within 10' (3m) [6'(1.8m)]
L=
Above paved sidewalk or paved
driveway located on public property
Under veranda, porch, deck, or
balcony
[7' *** (2.1m ***)]
M=
()= indicates clearances required in Canada
*Maintain clearances in accordance with local installation codes and the requirements of the gas supplier
***A vent shall not terminate directly above a sidewalk or paved driveway that is located between two
single family dwellings and serves both dwellings.
****Permitted only if veranda,porch,deck,or balcony is fully open on a minimum of two sides beneath the floor.
* [12" (300mm) - Canada Only****]
*
12" (300mm) [12" (300mm)]
12" (300mm) [36" (900mm)]
Area Where Terminal
is Not Permitted
Vent Terminal
Air Supply Inlet
