3.2 Power and Battery
The power supply and the backup battery are connected to the power connector rail inside the
cabinet back section as shown in Figure 3-2 and 3-3. If two power supplies are used, these
are parallel coupled inside one of the power supplies (see Dwg.no.: 17370A3). The cables
used should have 6mm
2
intersection.

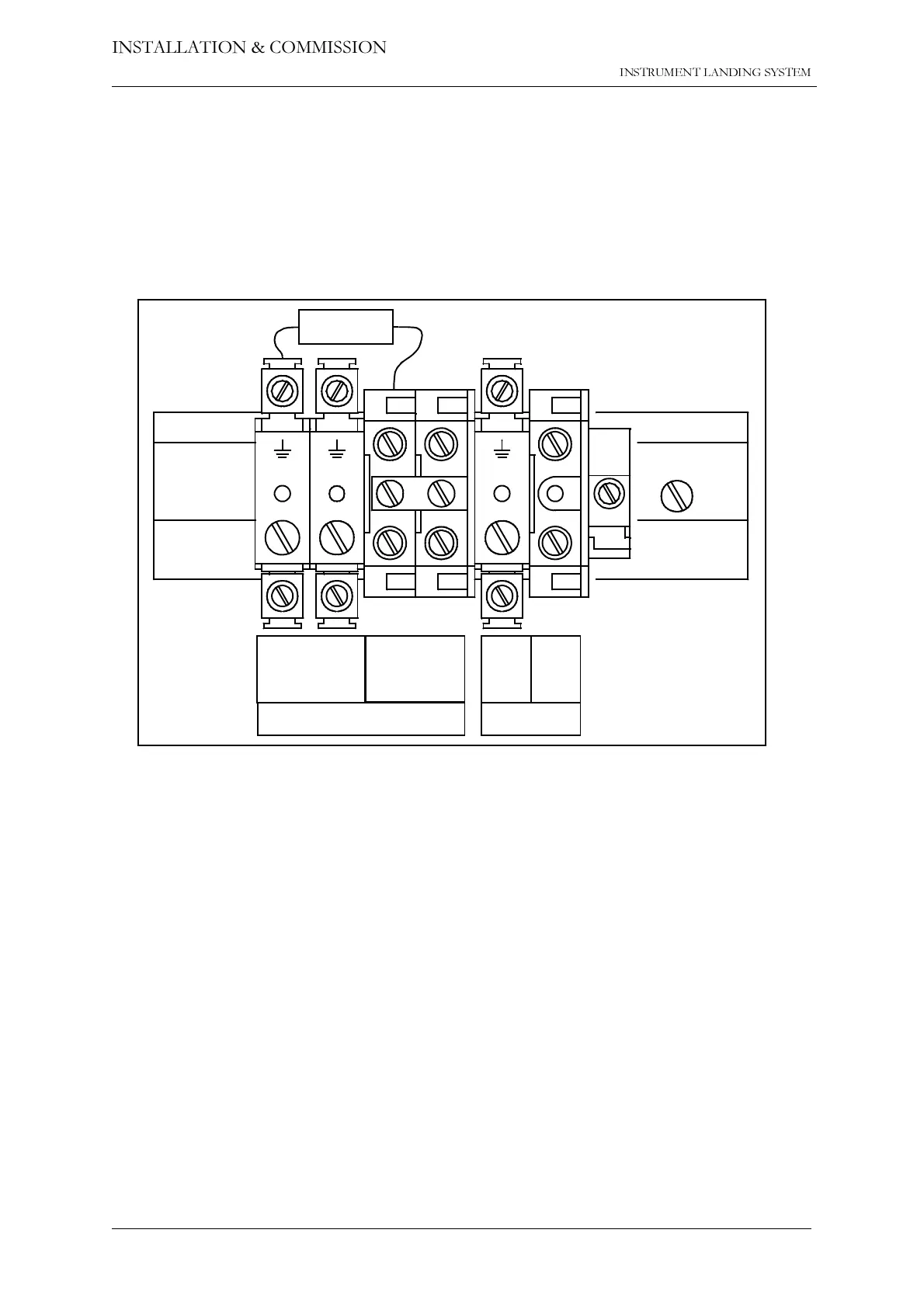

Figure 3-2 Power and backup battery connections.
Battery
0V +27V
Power Supply
0V +27V
HBK576-2
To Next Page
