12
EX-30 G/1
EX30-G/1, single phase 90-265V 50/60Hz electronic power supply is specifically suitable for feeding 250 to 500W
short arc Xenon lamps. Weight 8kg. Further instructions in Installation guide for Rectifier.

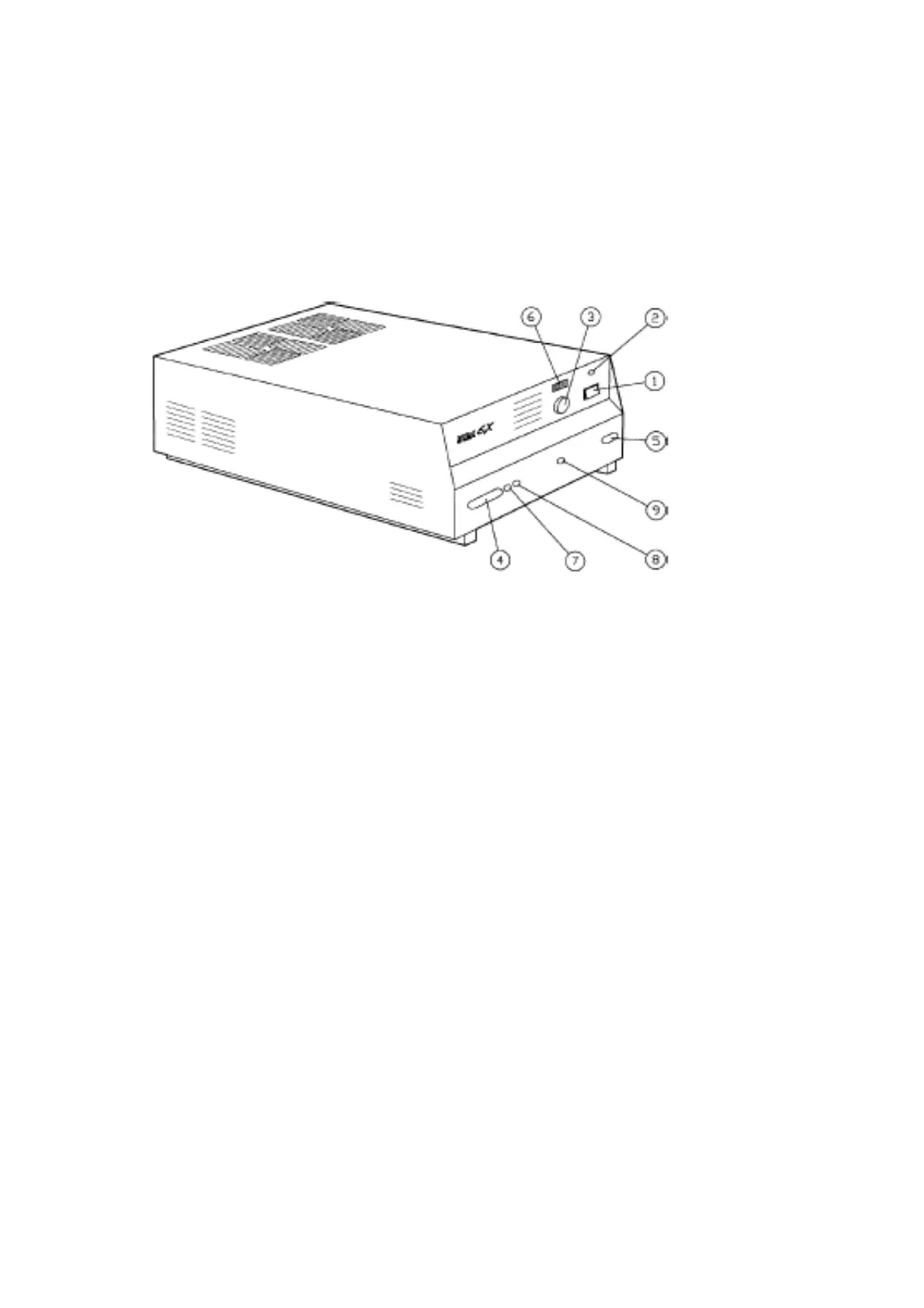

1. Lamp ON/OFF switch
IMPORTANT NOTE: DO NOT USE THIS SWITCH FOR THE REMOTE
CONNECTION !
2. Mains on LED
3. Lamp current potentiometer
Adjusting the lamp output current
4. Input terminal board
5. Output terminal board
Used to connect the lamp power cables (+, -)
6. Current LED bar
Indicating the output current level (12A to 30A)
7. Lamp ON terminal board
8. Remote lamp ON/OFF terminal board
9. Igniter insertion terminal board
To Next Page
