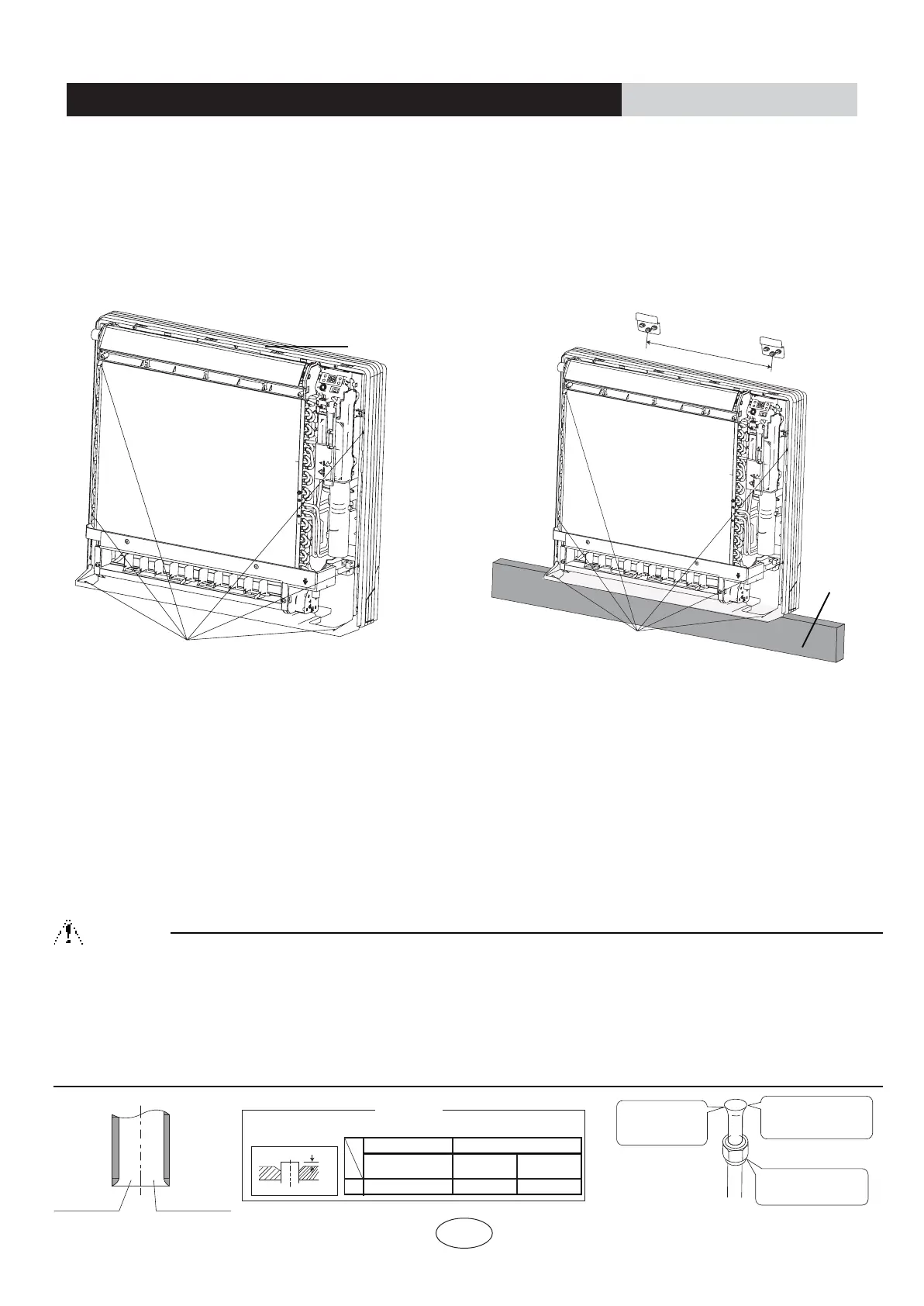

The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the GULOO
points on the wall.
2) $WWDFK the mounting plate to the wall with screws.
6screws
Casing
Floor Installation
Wall Installation
6screws
Molding
 Once refrigerant piping and drain piping connections are complete, fill in the gap with putty. A gapcan lead to
condensation on the refrigerant pipe, and drain pipeDQGGUDIWVRULQVHFWVLQVLGHWKHURRP
 Attach the front panel and front grille in their original positions once all connections are complete.
Flaring the pipe end
Cut the pipe end with a pipe cutter.
Remove burrs with the cut surface facing downward so that the chips do not IDOOLQWR the
pipe.
Fit the flare nut on the pipe.
Flare the pipe.
Check that the flaring is VXLWDEOH.
WARNING
 DO not use mineral oil on flared part.
 Prevent mineral oil from getting into the system as this would reduce the lifetime of the units.
 Never use piping which had been used for previous installations. Only use parts which are delivered with the
unit.
 Do QRW install a drier to this R410A unit in order to guarantee its lifetime.
 The drying material may dissolve and damage the system.
 Incomplete flaring may cause refrigerant gas leakage.
Make sure that the
flare nut is fitted
The pipe end must
be evenly flared in
a perfect circle
Flare’s inner
surface must
be scratch-free
Cut exactly
at right
angles
Renove
burrs
Flaring
Set exactly at the position shown below
A
Die
A
0-0.5mm
1.0-1.5mm
1.5-2.0mm
Flare tool for R410A
Clutch-type
Clutch-type
(Rigid-type)
Wing-nut type
(lmperial-type)
Conventional flare tool
200mm
18
INSTALLATION INSTRUCTIONS
Installation of indoor unit
