FIGURES & TABLES
Model Number Length (L) Width (W) Height (H) A B
024K 49 35 30.2 40.15 7.61
030K 49 35 30.2 40.15 7.61
036K 49 35 30.2 35.02 2.48
042K 49 35 30.2 35.02 2.48
048K 49 35 34.2 35.02 2.48
060K 49 35 38.2 35.02 2.48
9.15
9.04
17.50
14" diameter
Return Duct
Opening
12" diameter
Supply Duct
Opening
3.0
5.5
1"
3.15
A
B
Back(Duct)View

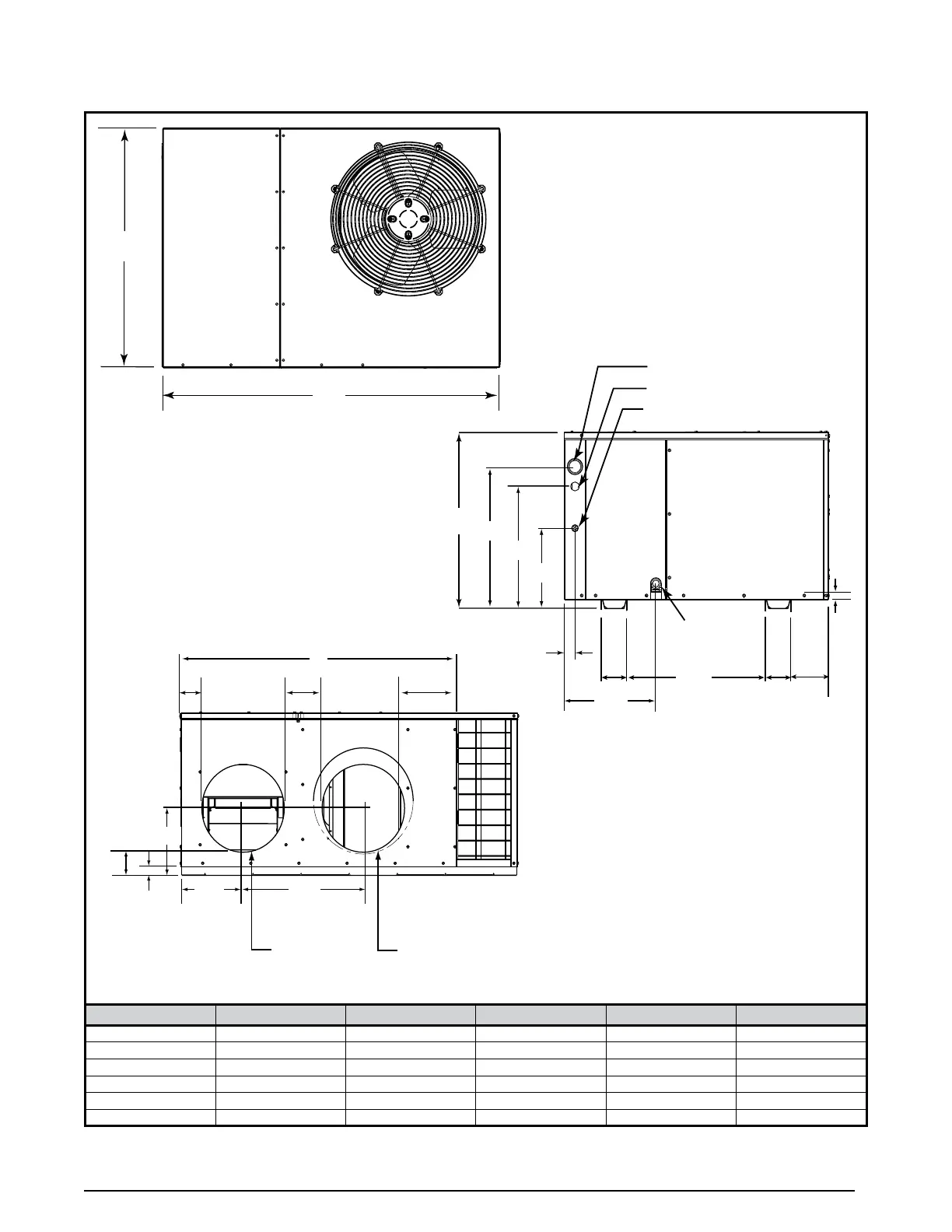

Figure 8. Physical Data & Unit Dimensions
L
W
TopView
18.01
Electric Heater Power Supply
Power Supply
Low Voltage Supply
Control
Access
Panel
Blower Access Panel
H
17.86
15.36
10.10
3/4" NPT
Drain Connection
1"
12.13
1.38
3.2
3.2 5.29
SideView
