WLAN 2300 Series Outdoor Solution with Indoor Mounted AP 55
Nortel WLAN 2300 Series Outdoor Solution Guide
To configure antenna model 5643-OUT-10 for an AP 2330A on Distributed AP 1, type the following
command:
WSS# set dap 1 radio 1 antennatype 5643-OUT-10
success: change accepted.
To specify the external antenna model using WMS, use the AP Configuration menu and fill in the required
information.

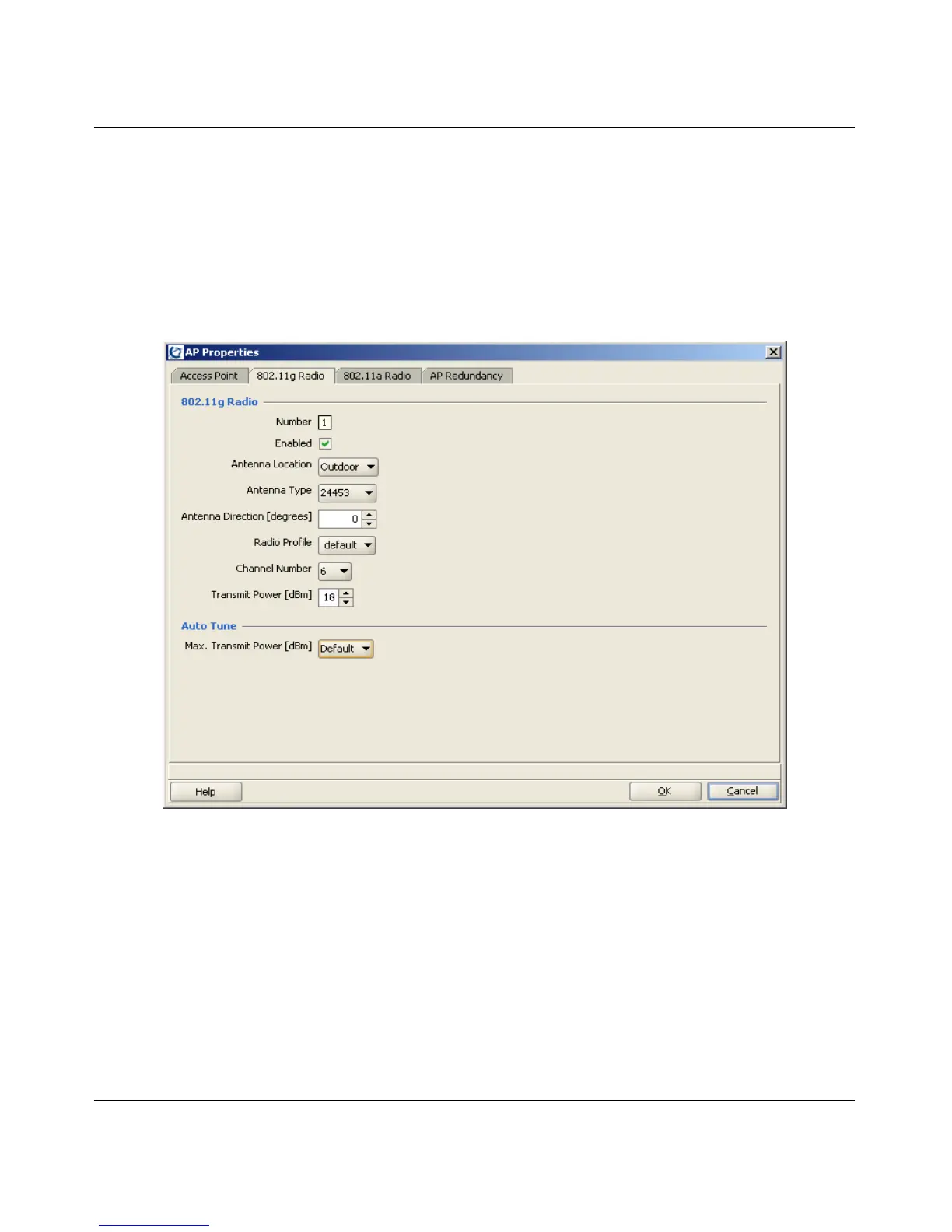

Figure 9. WMS AP external antenna configuration
