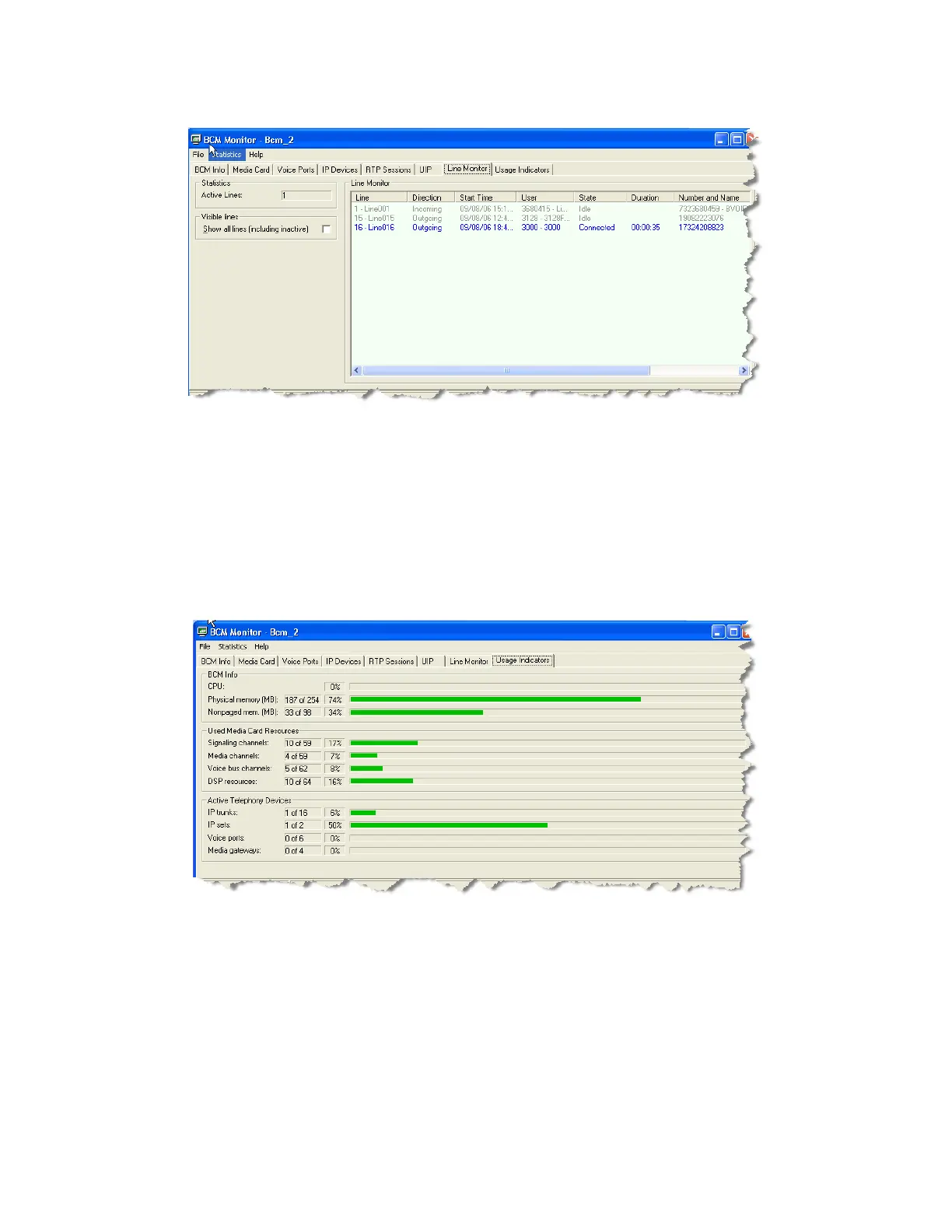

Figure 22: Line Monitor Information
The BCM Monitor can also be used to monitor all types of system usages. The
following are some parameters that can be monitored:
• CPU utilization
• Physical memory
• Media card DSP utilization
• IP sets and IP Trunks
• Voice ports and media gateway usage
Figure 23: System Resources
