2 Machine description
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity
with the safety regulations.
2.1 Short description
The TR200E Tile saw is designed for durability and high performance for onsite wet and dry cutting
operations of a wide range of tiles.
As with all other CLIPPER products, the operator will immediately appreciate the attention given to
detail and quality of materials used in construction. The machine and its component parts are
assembled to high standards assuring long life and minimum maintenance.
2.2 Purpose of use
The machine is designed for wet and dry cutting of a large range of tiles. It is not designed for
cutting wood or metals.

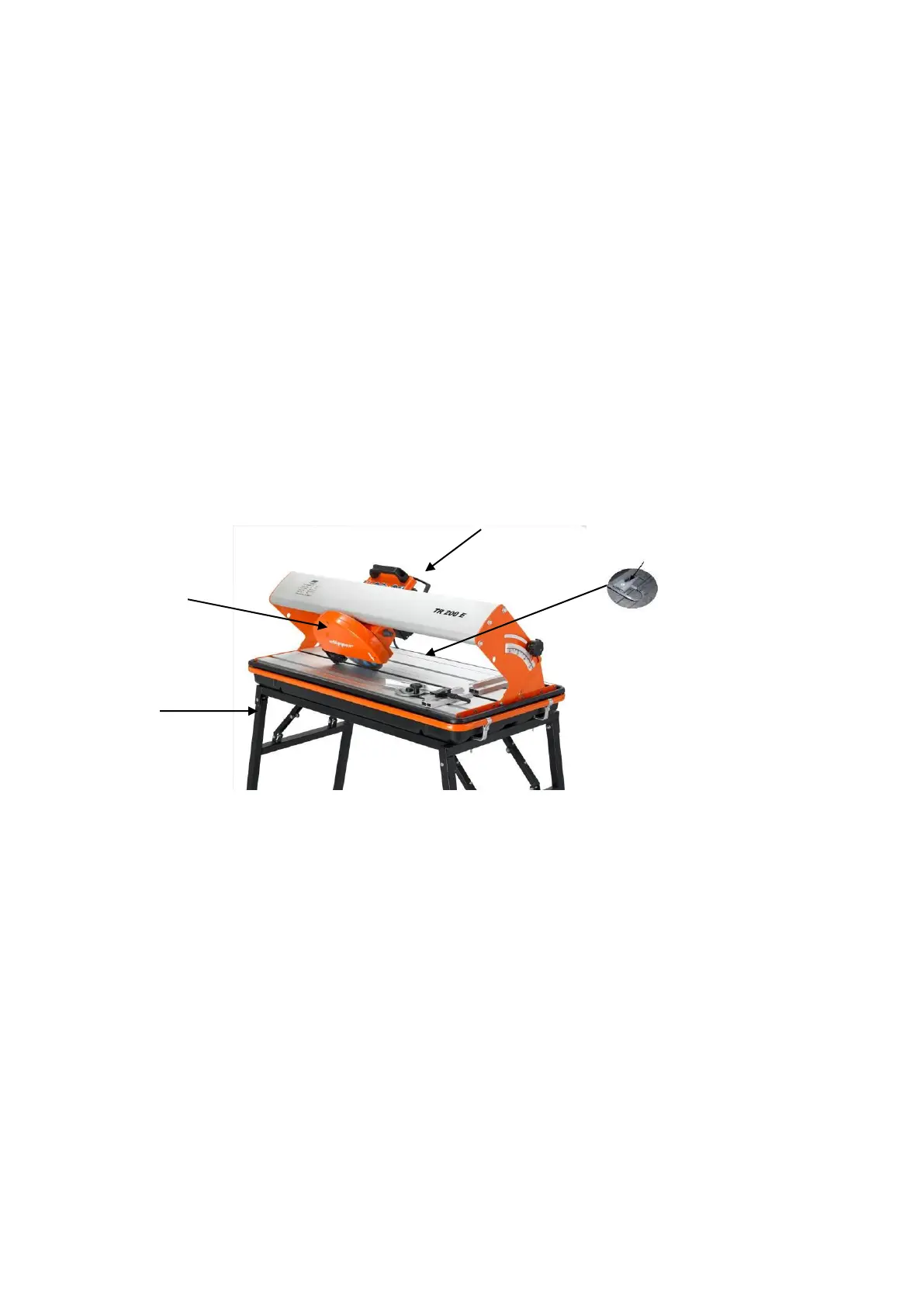

2.3 Layout
Frame (1)
The frame is made of aluminium and steel to ensure robustness and durability. The folding stand
with 4 legs ensures stability while cutting.
Cutting head (2)
Aluminium console guided with precision. This console supports the electric motor, the guides and
the blade guard. The head can be tilted to cut with an angle from 0 to 45º.
Blade guard (3)
The blade guard assembly with a 200mm-diameter blade capacity is completely closed, but the
outside cover can be disassembled to access the blade. It offers maximum operator protection and
increased visibility of the work piece.
