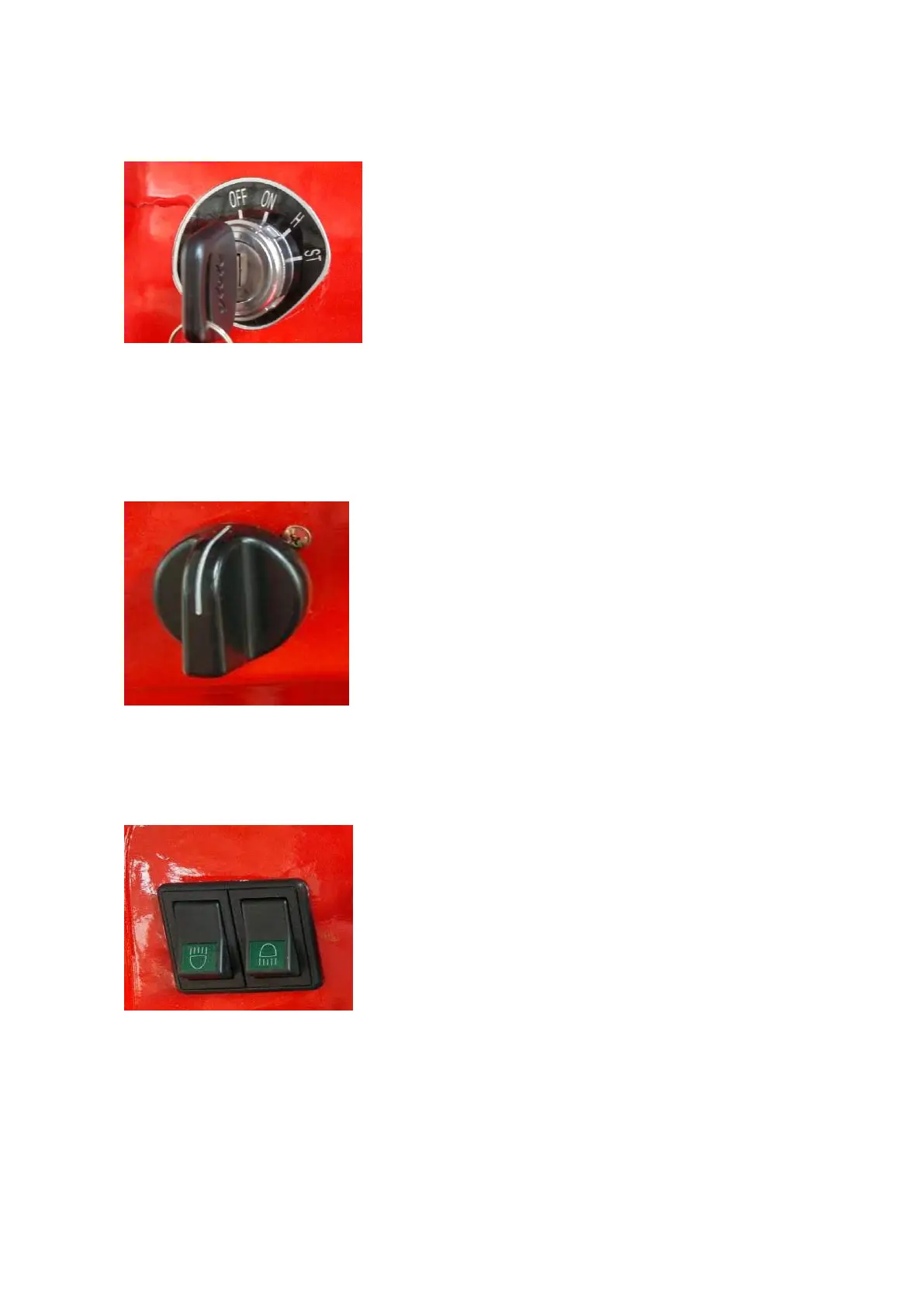

Warm-up and Start-up Switch: Choke Control
• When the key is in the OFF position, all circuits are off.
• Turn clockwise to ‘H’ to warm up the engine. Continue to ‘ST’ to start it up (after warm-up).
• When it’s turned clockwise to ON, all circuits, except warm-up and start-up circuit, are on (after start-up,
the key is kept in this position).
Throttle Control
• Turn clockwise to increase throttle (10 grades for accelerating adjustments showing on screen).
• Turn counter-clockwise to decrease throttle.
Lamp Switches (left side of meter)
• The left switch controls the head light on the front hood.
• The right switch controls the roof light on the cab.
