Operation Description
16
Instrumentation and Switches

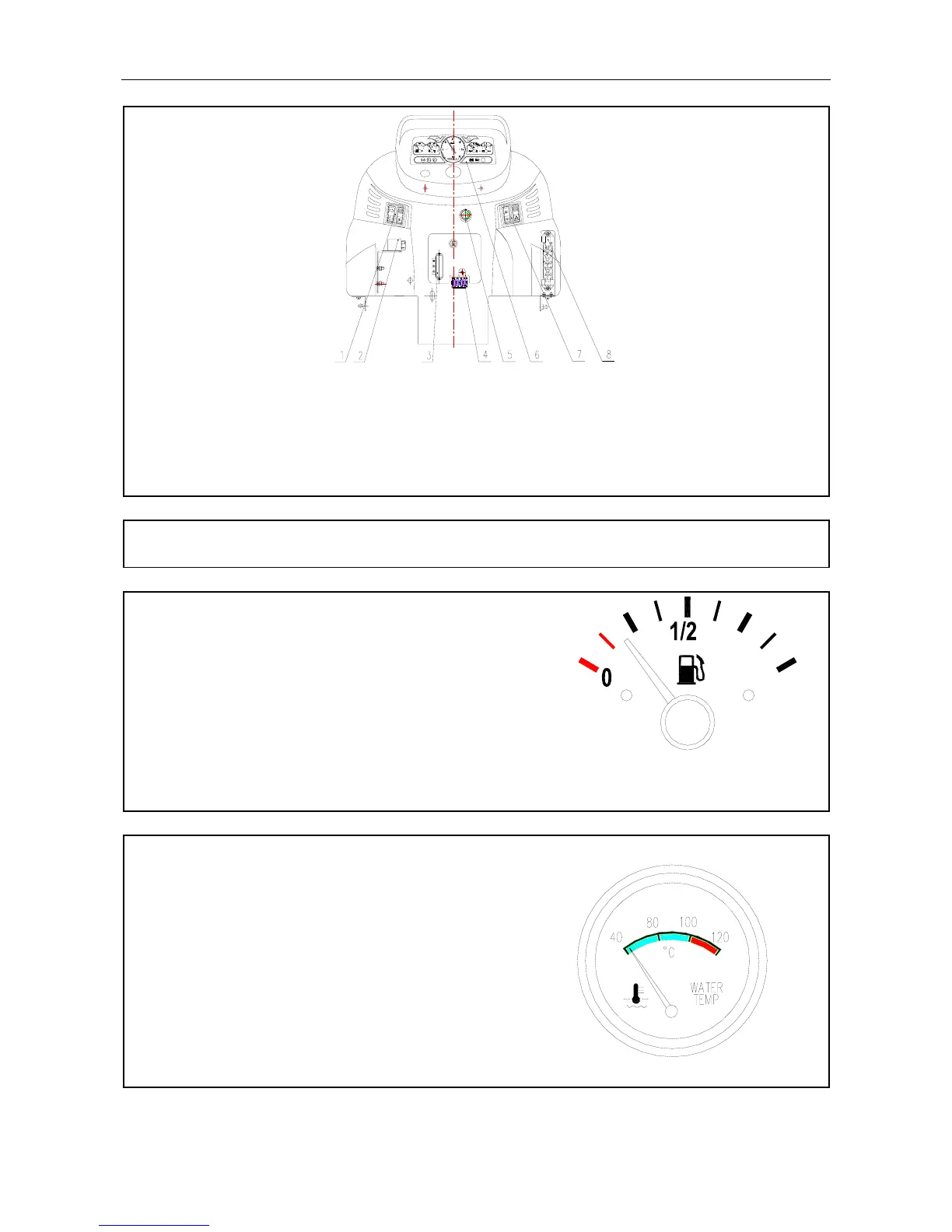

Figure 2-2 Instrumentation and Switches
IMPORTANT NOTES: Observe all warning lights and pay attention to the instrument panel during
operations.
Fuel Gauge
The fuel gauge indicates the amount of fuel in the tank When
the indicator is in the far right position, it indicates the fuel tank is
full of fuel; when the indicator is the left red area, it means the fuel
tank is low and should be filled immediately.
Note: Never allow tractor to run out of fuel, it can damage the fuel pump.
Water Temperature Gauge
The Water Temperature Gauge marks the engine cooling liquid
temperature, moving from left to right with the red area indicating
high temperature
1. Left rocker switch assembly 2. Start relay 3. Pressure regulator 4. Fuse box assembly 5.
Ignition switch 6. Combined instrument 7. Right rocker switch assembly 8. Fuse box assembly
Figure 2-3 Fuel Gauge
Figure 2-4 Water Temperature Gauge
