Operation Description
43
3. Accessories, Spare Parts and Consumables
3.1 Accessories
3.1.1 Safety Frame (optional)
The XT series tractor can be equipped with an OSHA safety frame to prevent the driver from being hurt by an
accidental turnover.
3.1.2 Swing Traction Rod (optional)
The swing traction rod is used for traction type farm machinery. The
traction rod rear end connects with the farm machinery by a traction pin.
The traction rod can swing right or left, making it more convenient for
mounting farm machinery. When the tractor is towing farm machinery
backward, however, the positioning pin (1) must be inserted into the hole
of the traction plate, in order to stabilize the traction rod (2) (Figure 3-1).
The traction point can be changed to a suitable height by turning the
traction rod, in order to connect the matched farm machinery .
3.2 List of consumables (not included with tractor purchase)
Consumables for the Nortrac XT series wheeled tractor include: all bearings listed in appendix 10-2, all oil seals
and sealing rings listed in appendix 10-3, all fuses listed in table 3-2，and the components listed in following table:
Table 3-4 List of consumables, such as bulbs and glass products, etc
Sequence
No.
Code Description Quantity Remark
1 12V-1141-28W Rear lamp bulb 1
2 pieces applied to 3rd
generation model
2 12V-1141-21W Front/rear steering lamp bulbs 4
3 12V-89-5W Positioning lamp bulb 2
4 12V-H4-55/60W
Double-filament bulb for high
beam and dipped headlight
1
5 12V-1141-21W Braking lamp bulb 2
6 TE324.20A-01 O-ring for wire-roller 1
7 FT220.40.301 Steering rod seal boot 1
8 TE250.362D-01 Dust ring 1
Used for the type with
shuttle shifter
9 FT250.47C.230 Machine cover seal 1
10 TE250.475B-01 Rubber sealing strip 1
11 YFKM385T10500 Fuel Filter Element 1
12 YFKM385T09300 Oil filter Element 1

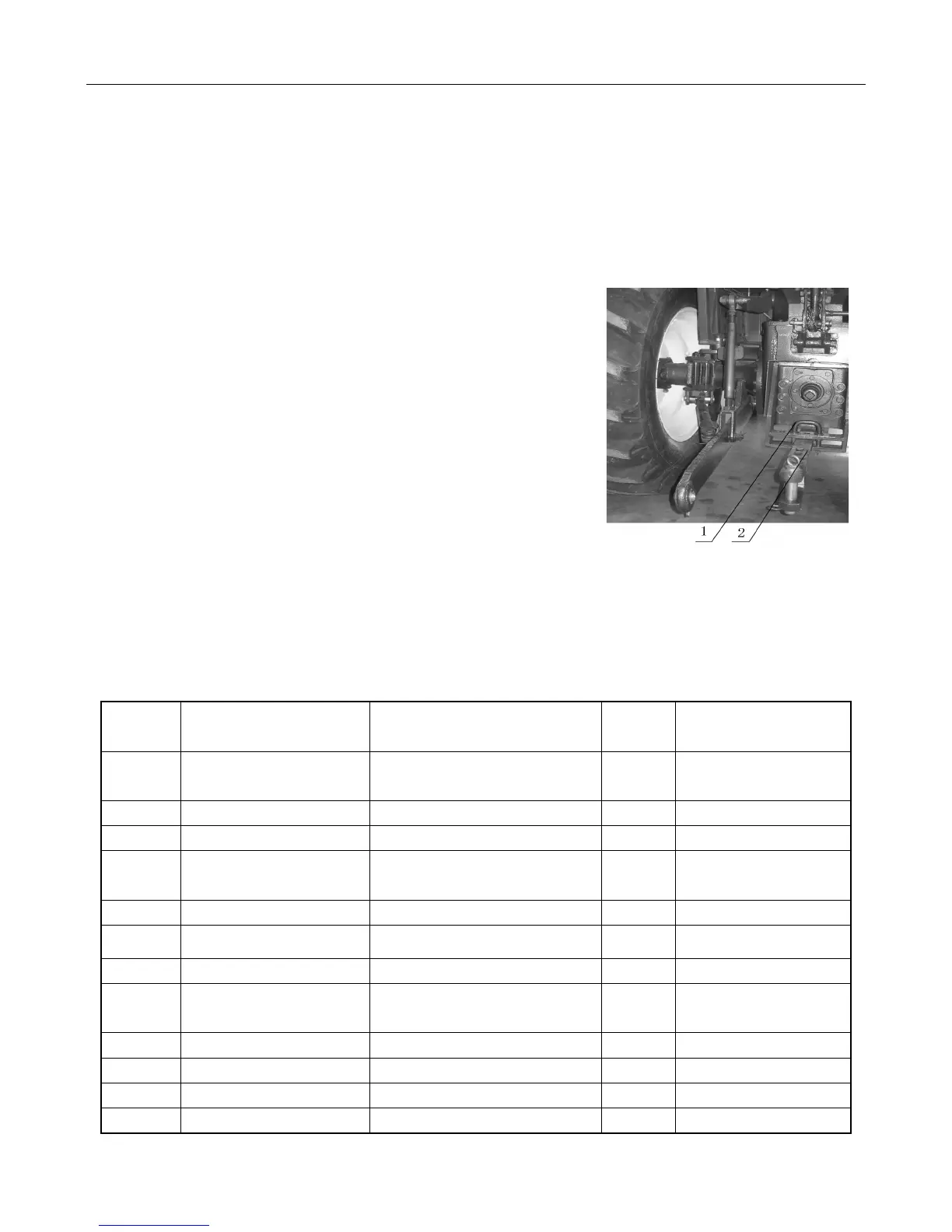

Figure 3-1 Swing Traction Application
1. Positioning Pin 2. Traction Rod
