Maintenance Instruction
53
4.6 Front Drive Axle Adjustment
4.6.2 Track Front of the Four-Wheel Drive Model
The track of front drive axle can be: 1073mm, 1193mm and 1257mm.
4.6.1 Front Drive Axle Side Drive Adjustment
Adjustment of the mesh mark and meshing-teeth side
clearance of the initiative gear and passive gear of the first level
intermediate drive of side drive of the front drive axle can be
realized by adjusting the adjusting shim (1).
Adjustmet of the mesh mark and the meshing-teeth side
clearance of the initiative gear and passive gear of the second
level end drive can be accomplished by adjusting the adjusting
shim (5). Clearance of the two meshing-teeth side clearances
should be 0.25–0.45mm.

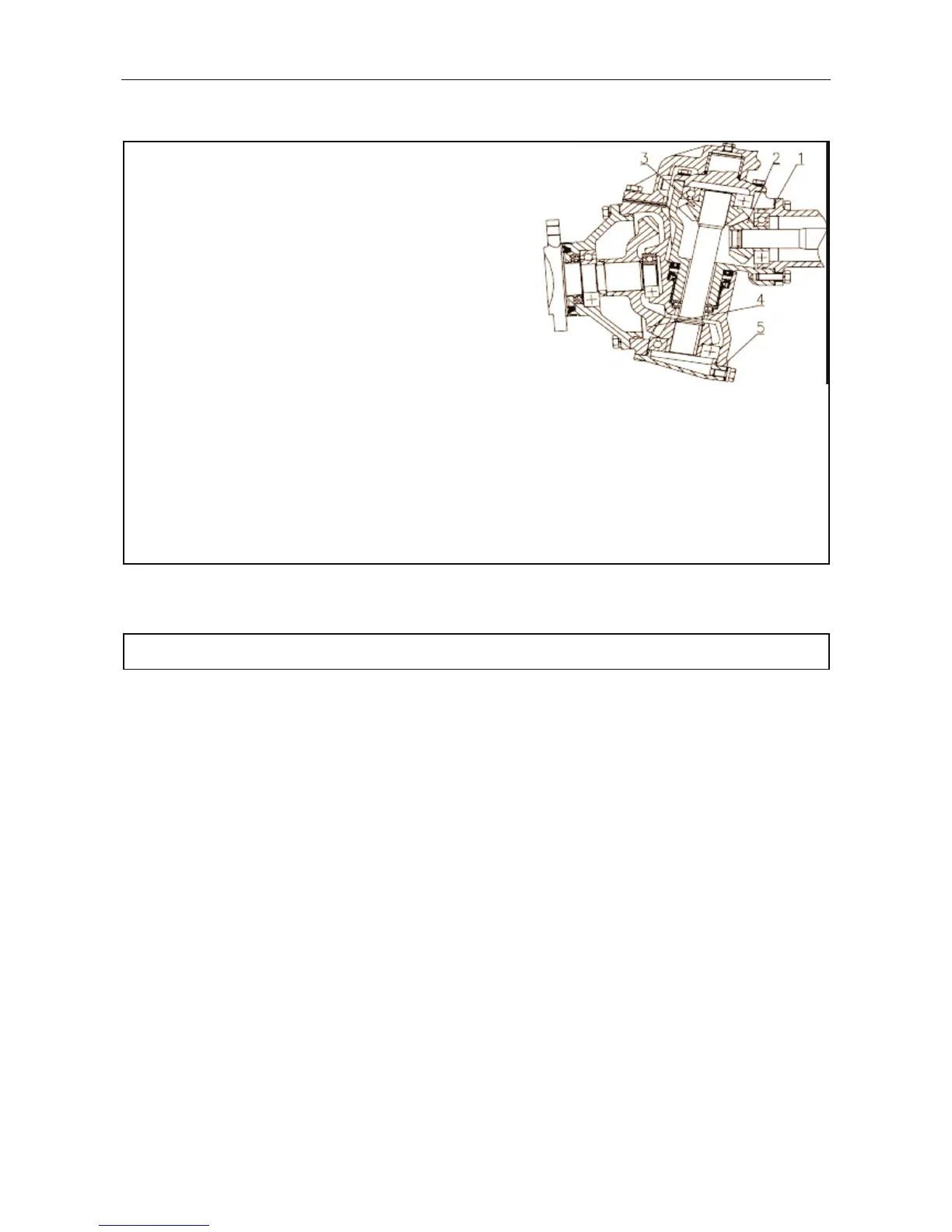

Figure 4-16 Front Drive Axle Side Drive Adjustment
1. Adjusting shim 2. Driving gear of intermediate drive 3. Driven gear of intermediate
drive 4. Final driven gear 5. Adjusting shim
