Operation Description
18

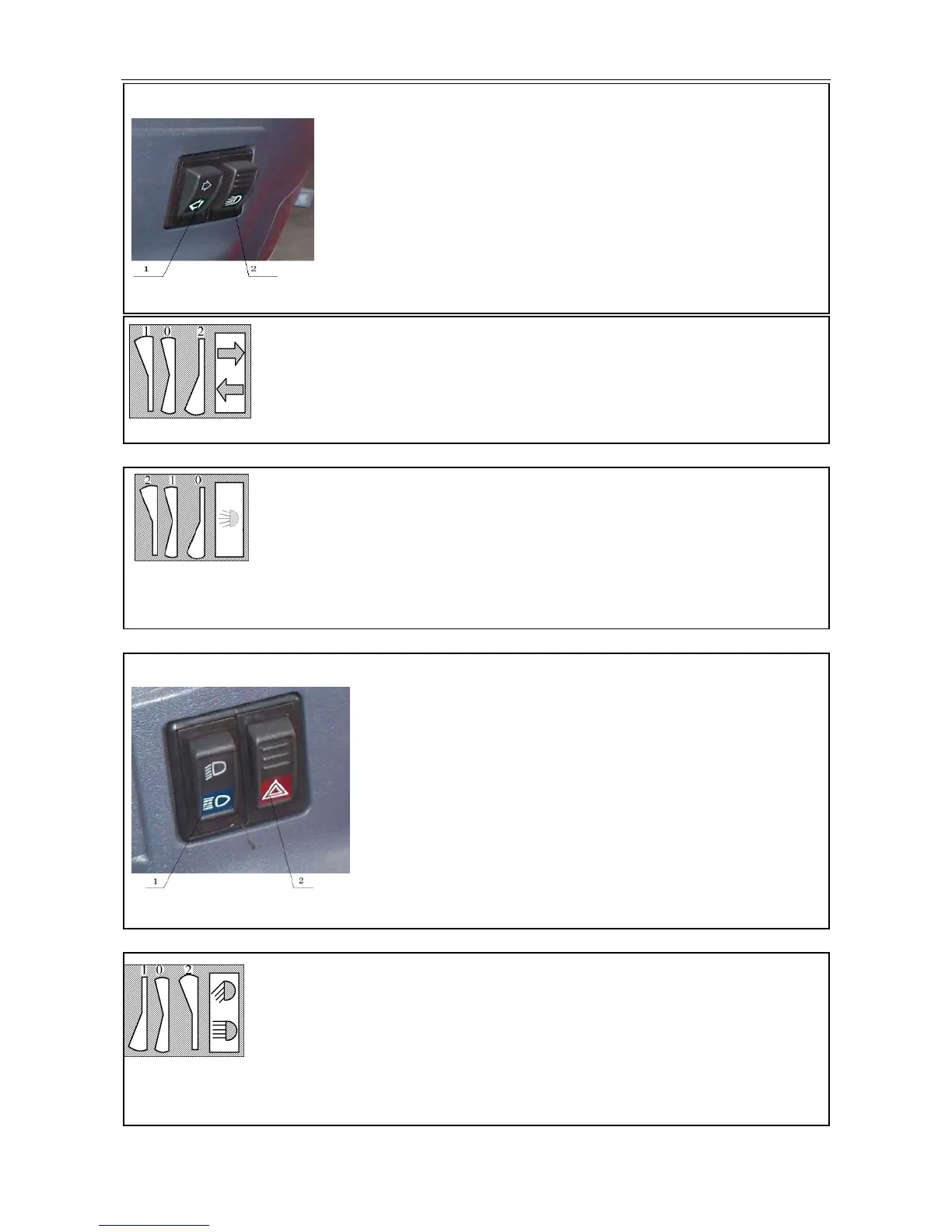

Left Rocker Switch Assembly
Figure 2-9 Left Rocker Switch Combination
Signal Switch
Position 1: Left signal lamps are on.
Position 0: Power supply off.
Position 2: Right signal lamps are on.
Figure 2-10 Signal Switch
Work Lamp Switch
Position 2: Both position lamp and rear lights are on.
Position 1: Position lamp is on.
Position 0: Power supply off.
Right Rocker Switch Combination
Figure 2-12 Right Rocker Switch Combination
High/Low Dimmer Switch
Position 1: Spare.
Position 0: Low headlight on.
Position 2: High beam on.
Figure 2-13 Dimmer Switch
1. Dimmer switch；2. Hazard alarm switch
Figure 2-11 Work Lamp Switch
1. Signal switch
2. Light switch
