Notifier DAA2 User Manual

46 DAA2 & DAX — P/N 53265:A1 8/24/2011
DAX Digital Audio Amplifiers DAX Overview
3.1.4 DAX Board Layouts
Connection Locations

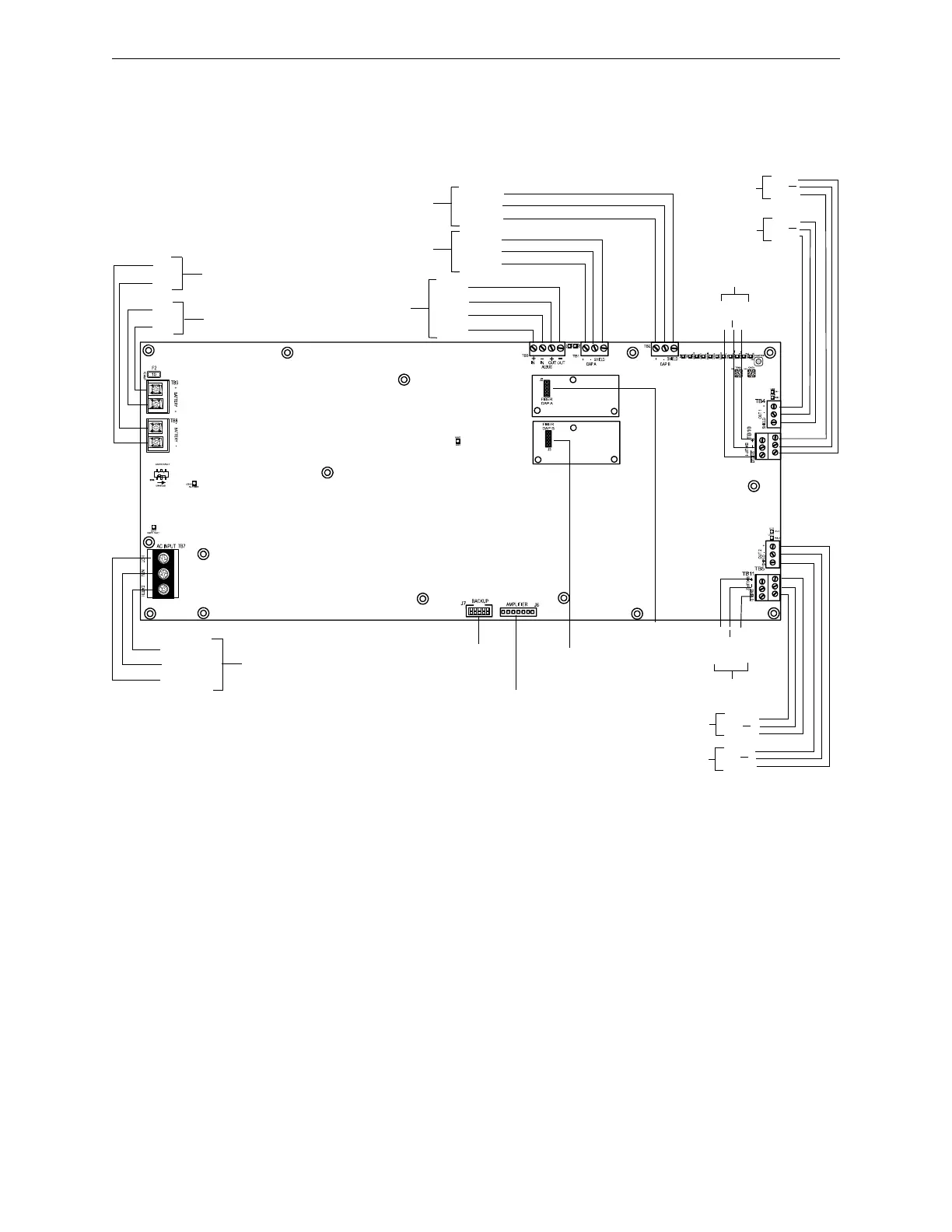

Figure 3.1 below shows the layout for the DAX boards.
Figure 3.1 Connection Locations
HOT
NEU
EARTH
AC INPUT: TB7
See page 52
-
BATTERY: TB8
See page 52
-
+
+
OUT-
IN-
OUT+
IN+
ALBUS:TB3
page 55
DAPB:TB2
See page 55
+
-
+
SHIELD
-
SHIELD
+
BKUP 1:TB 10
See page 61
BACKUP
(BDA Control) - J7
page 70
DAXbrda.wmf
FIBER DAP B - J3
See page 56
SHIELD
+
OUT 1:TB 4
See page 57
SHIELD
+
SHIELD
+
SHIELD
+
SHIELD
+
SHIELD
BATTERY: TB9
See page 52
DAPA:TB1
See page 55
BKUP 1:TB 10
See page 61
BKUP 2:TB 11
See page 61
BKUP 2:TB 11
See page 61
OUT 2:TB 5
See page 57
FIBER DAP A - J2
See page 56
AMPLIFIER
(BDA Power) - J6
page 70

Notifier DAA2 Specifications

General

Number of Channels	2
Input Voltage	24 VDC
Frequency Response	400 Hz to 4 kHz
Speaker Circuit	Class B
Humidity Range	10% to 93% non-condensing
Operating Temperature	0°C to 49°C (32°F to 120°F)
Wiring	12 AWG to 24 AWG
