SFP-400B 15124:G1 06/24/97
29

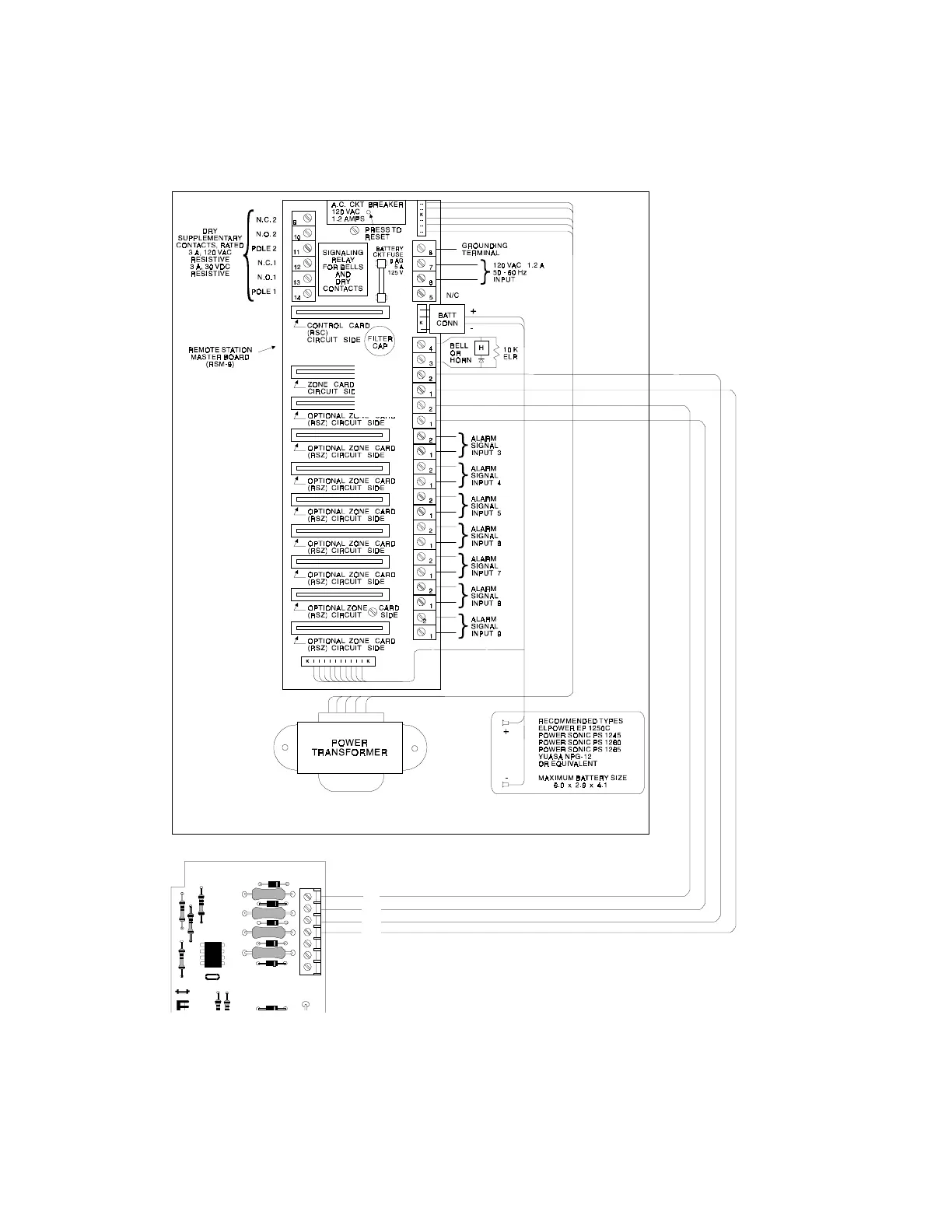

Figure B-2: NFPA 72-1993 Remote Station Protective Signaling System
Intended for connection to a polarity reversal circuit of a remote station receiving unit having compatible
ratings. All connections are power limited and supervised with the exception of the reverse polarity loop.
Supervision of the loop is the responsibility of the receiver.
Fire•Lite RS82-9
Remote Station Receiver
UL listed
+ - + -
Remote Trouble
Remote Alarm
1
2
3
4
4XTM
Transmitter Module
(activated polarities shown)
Note: Remote Alarm and Remote Trouble wiring can leave the building.
